Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the catalytic converter. Refer to Catalytic Converter Replacement .
  3. Use a drill to remove the catalytic converter heat shield rivets.
  4. Remove the catalytic converter heat shield.

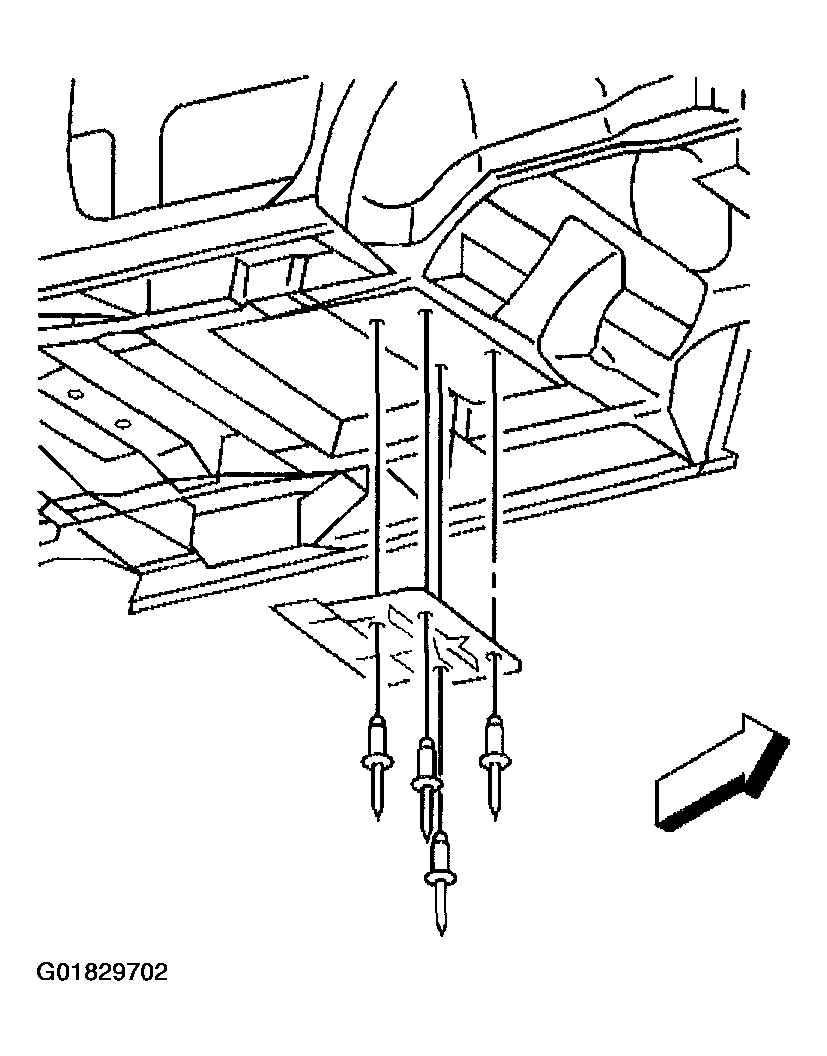

    Fig 1: Removing Catalytic Converter Heat Shield & Rivets
    G01829702Courtesy of GENERAL MOTORS CORP.
