Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wheel drive shaft to the transaxle.
  2. Verify that the wheel drive shaft is properly engaged to the transaxle by grasping the inner tripot housing and pulling outward. Do not pull on the wheel drive shaft bar.

    The wheel drive shaft will remain firmly in place when properly engaged.

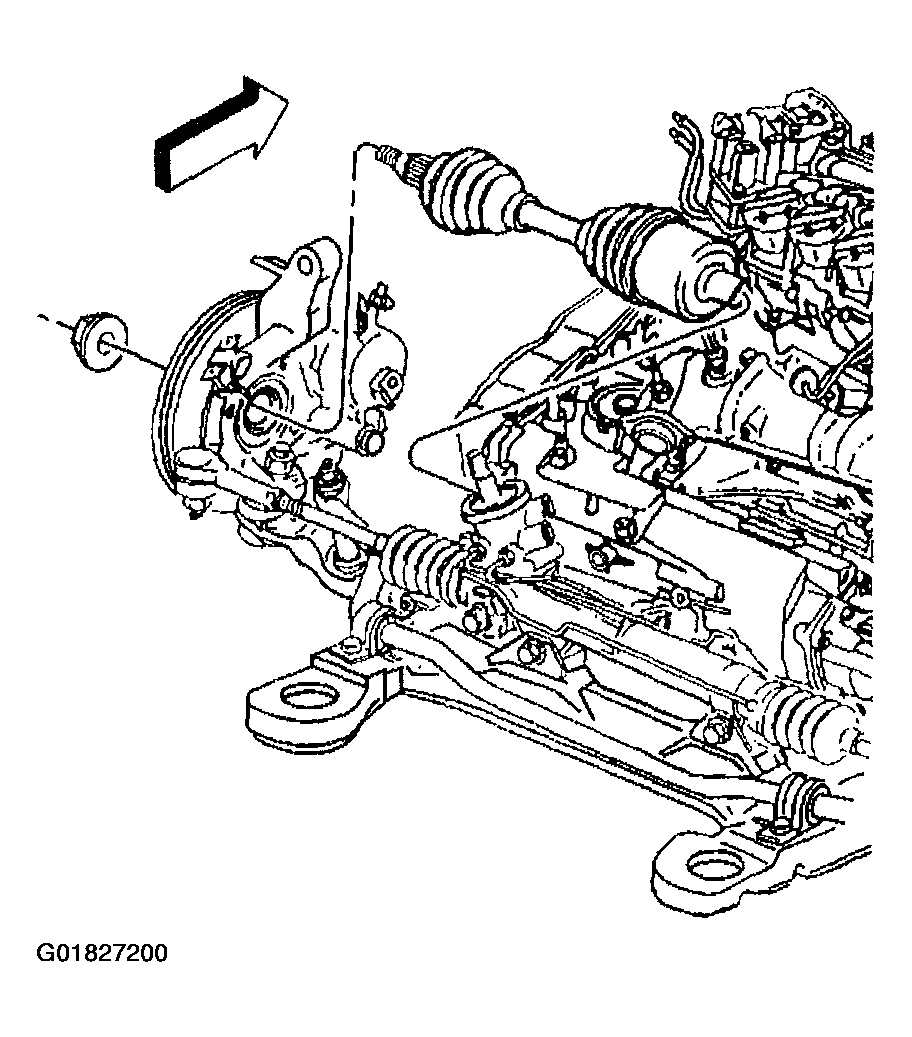

    Fig 1: Installing Wheel Drive Shaft & Bolt
    G01827200Courtesy of GENERAL MOTORS CORP.
  3. Install the wheel drive shaft to the hub and bearing (2).
  4. Connect the ball joint to the steering knuckle. Refer to LOWER CONTROL ARM REPLACEMENT .
  5. Connect the wheel speed sensor electrical connector.
  6. Install the stabilizer shaft link. Refer to STABILIZER SHAFT LINK REPLACEMENT .

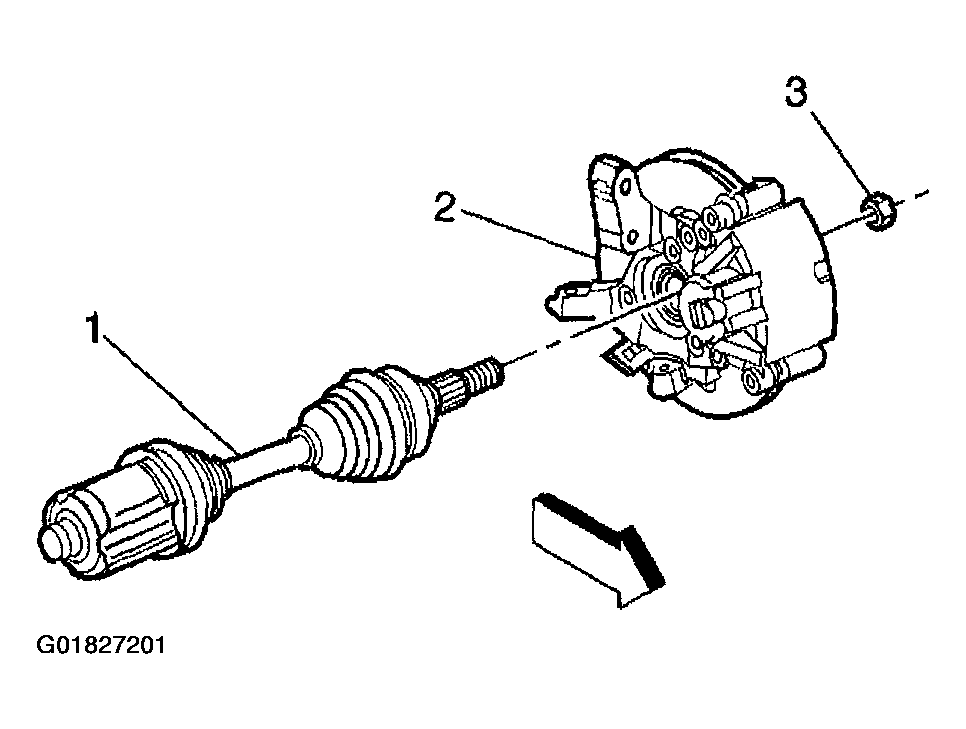

    Fig 2: Installing Wheel Drive Shaft To Hub & Bearing
    G01827201Courtesy of GENERAL MOTORS CORP.
  7. Insert a drift or punch (1) through the brake caliper and into the brake rotor in order to prevent the hub and bearing from turning.
    NOTE: Refer to FASTENER NOTICE .
  8. Install the nut to the wheel drive shaft spindle.

    Tighten

    Tighten the nut to 160 N.m (118 lb ft).

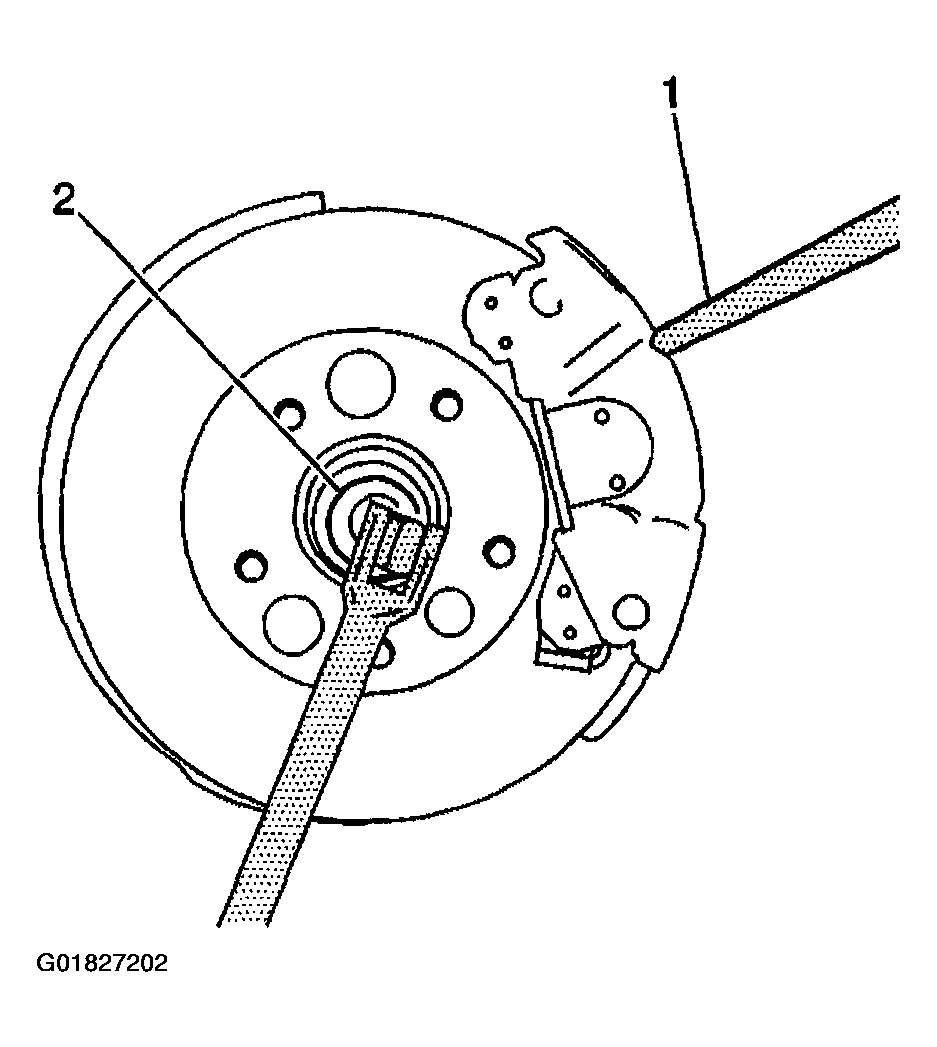

    Fig 3: Tightening Wheel Drive Shaft Spindle Nut
    G01827202Courtesy of GENERAL MOTORS CORP.
  9. Connect the outer tie rod end to the steering knuckle. Refer to TIE ROD END REPLACEMENT -- OUTER .
  10. Install the engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE .
  11. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  12. Lower the vehicle.
