Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

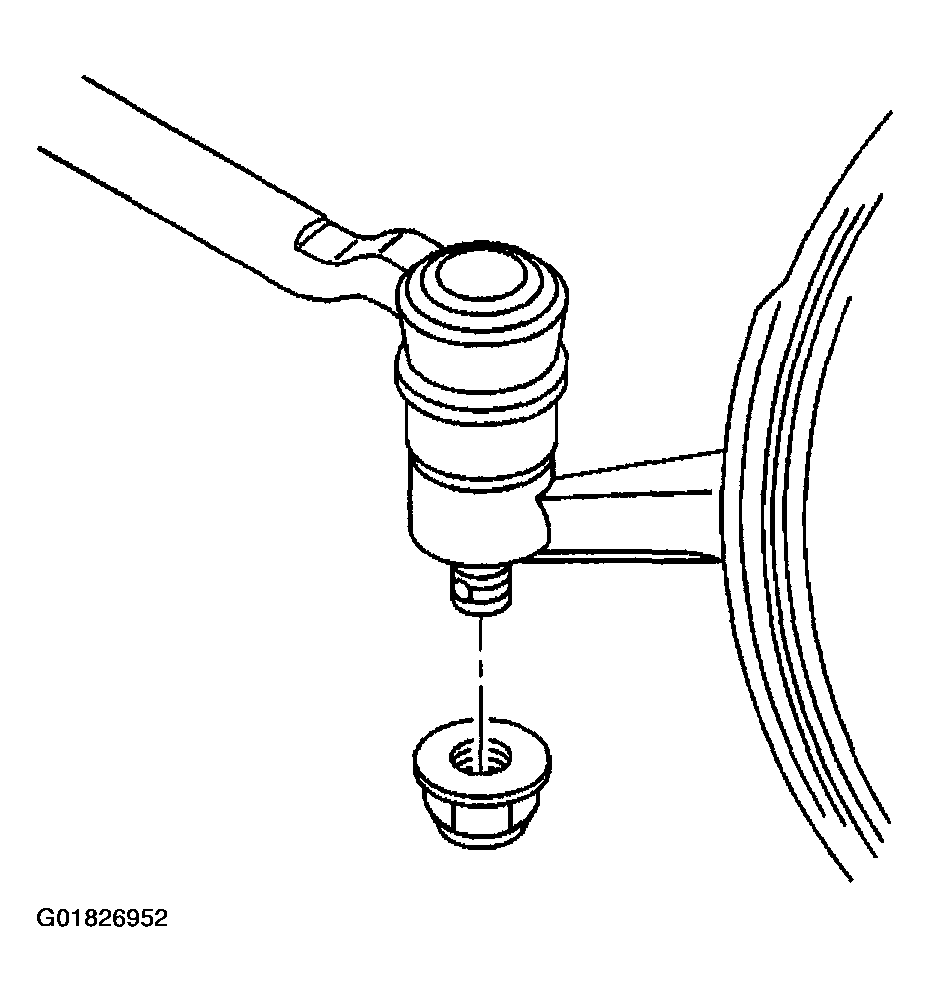

    Fig 1: Tie Rod Ball Stud Nut
    G01826952Courtesy of GENERAL MOTORS CORP.
  1. Remove the tie rod ball stud nut.
    NOTE: Do not attempt to free the ball stud by using a pickle fork or wedge type tool, because seal or bushing damage could result. Use the proper tool to separate all ball joints.

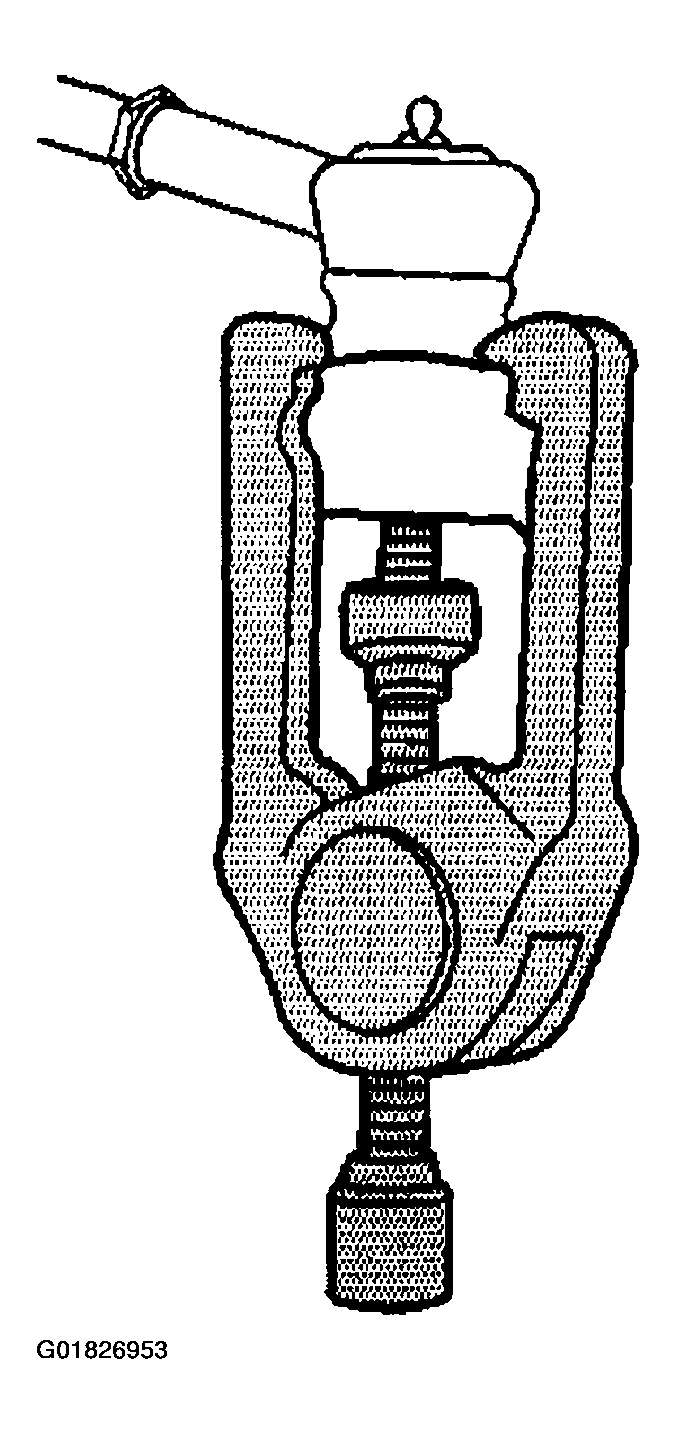

    2. Fig 2: Separating Outer Tie Rod From Steering Knuckle
    G01826953Courtesy of GENERAL MOTORS CORP.
  2. Use the J 24319-B in order to separate the outer tie rod from the steering knuckle.
    3. Fig 3: Tie Rod Jam Nut
    G01826954Courtesy of GENERAL MOTORS CORP.
  3. Loosen the tie rod jam nut (2).
    4. Fig 4: Removing Outer Tie Rod From Inner Tie Rod
    G01826955Courtesy of GENERAL MOTORS CORP.
  4. Remove the outer tie rod (3) from the inner tie rod (1).
