Disassembly Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen both cylinder line fittings on the cylinder end of the gear assembly.

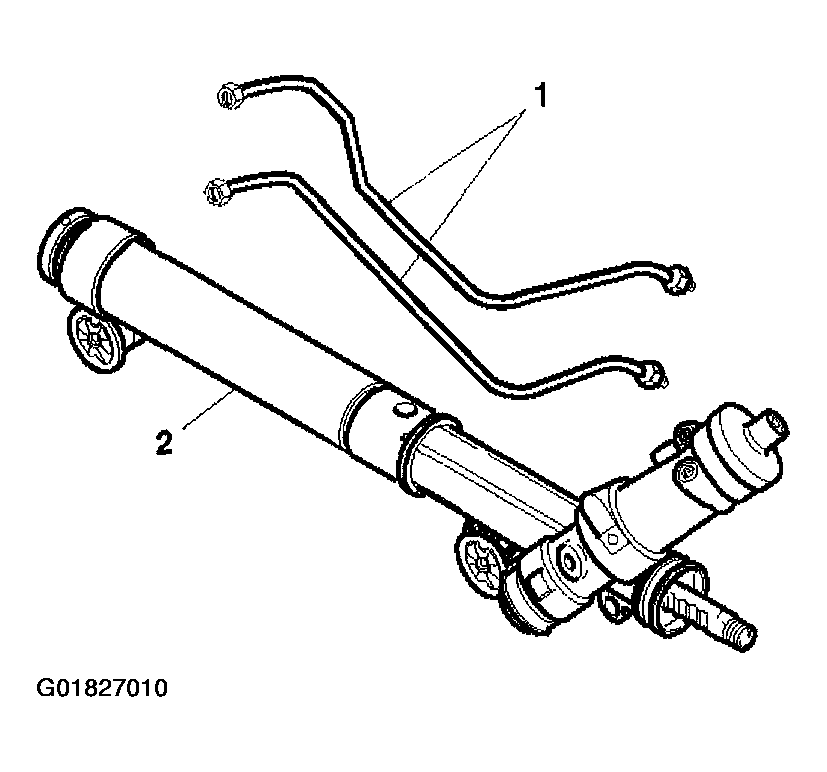

    2. Fig 1: Cylinder Line Assemblies
    G01827010Courtesy of GENERAL MOTORS CORP.
  2. Loosen both fittings on the cylinder line assemblies (1) at the valve end of the gear assembly.
  3. Remove both cylinder line assemblies (1) from the rack and pinion gear assembly (2).

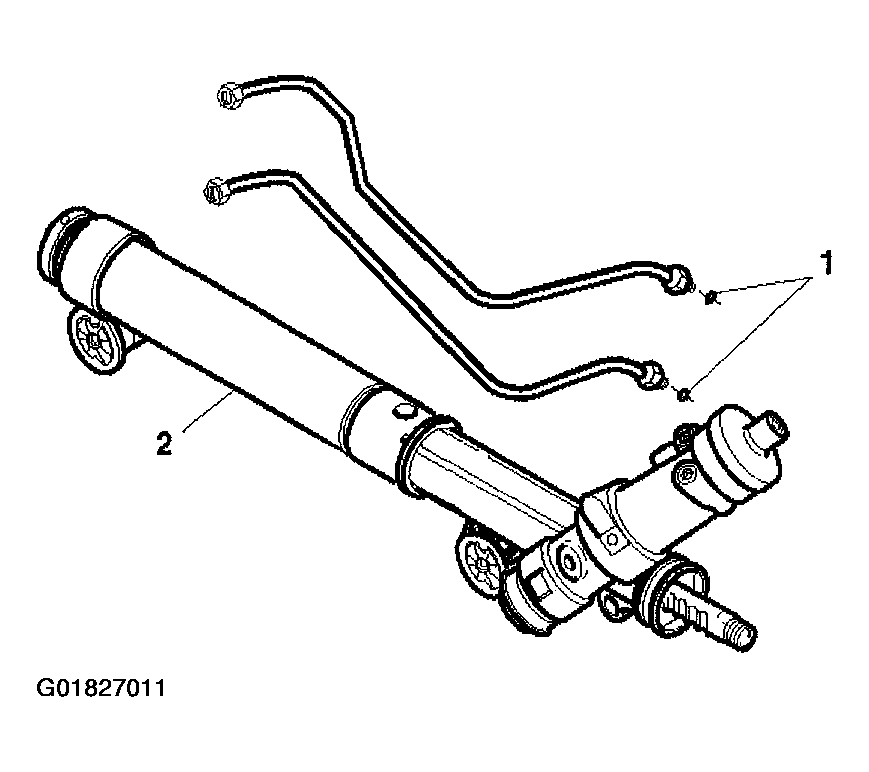

    4. Fig 2: O-Ring Seals
    G01827011Courtesy of GENERAL MOTORS CORP.
  4. Remove the O-ring seals (1) from the valve end of line.
  5. Discard the O-ring seals (1).
