Assembly Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Cylinder Line Assemblies

Courtesy of GENERAL MOTORS CORP.

Inspect the cylinder lines (1) for the following items:
- Cracks
- Dents
- Damage to the threads
Replace the parts as needed.

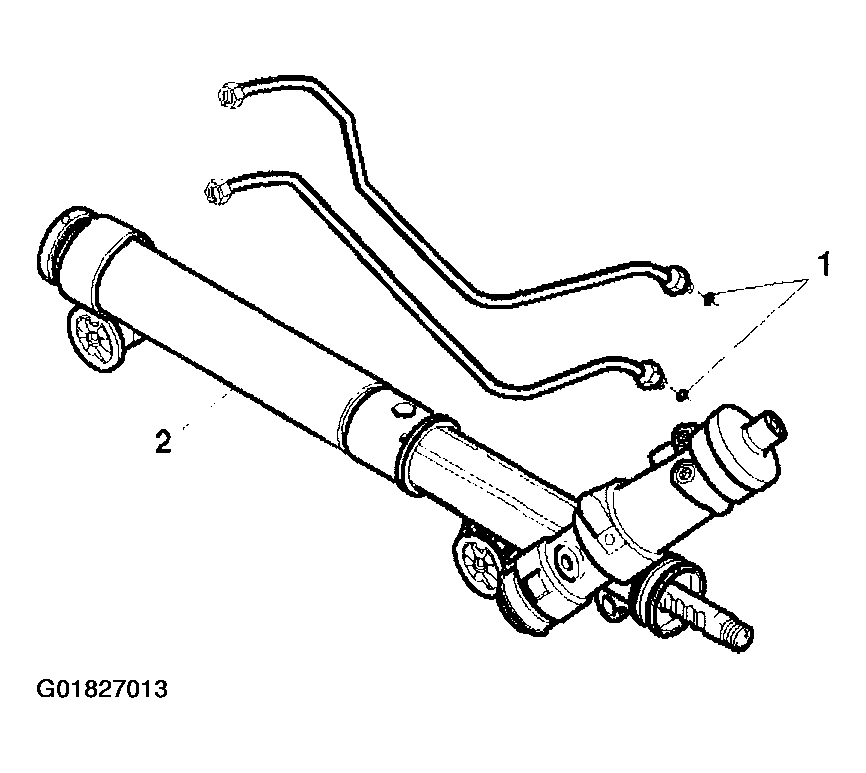

Fig 2: O-Ring Seals

Courtesy of GENERAL MOTORS CORP.

Install the new O-ring seals (1) to the valve end of the cylinder lines.
NOTE: Refer to FASTENER NOTICE .

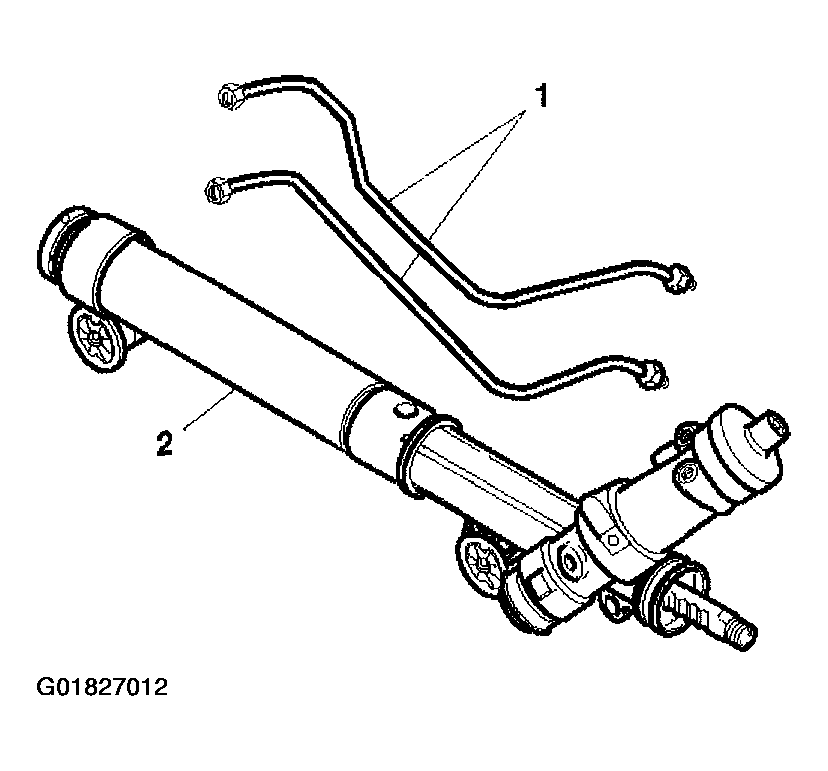

Fig 3: Cylinder Line Assemblies

Courtesy of GENERAL MOTORS CORP.

Install the cylinder line assemblies (1) to the gear assembly (2).
Tighten
- Tighten the valve end fittings to 16.9 N.m (12.6 lb ft)
- Tighten the cylinder end fittings to 27 N.m (20 lb ft)
