Disassembly Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

To remove the outer tie rod; refer to TIE ROD END REPLACEMENT - Outer .

Fig 1: Hex Jam Nut

Courtesy of GENERAL MOTORS CORP.

Remove the hex jam nut (2) from the inner tie rod assembly (1).

Fig 2: Tie Rod End Clamp

Courtesy of GENERAL MOTORS CORP.

Remove the tie rod end clamp (2) from the rack and pinion boot (1).

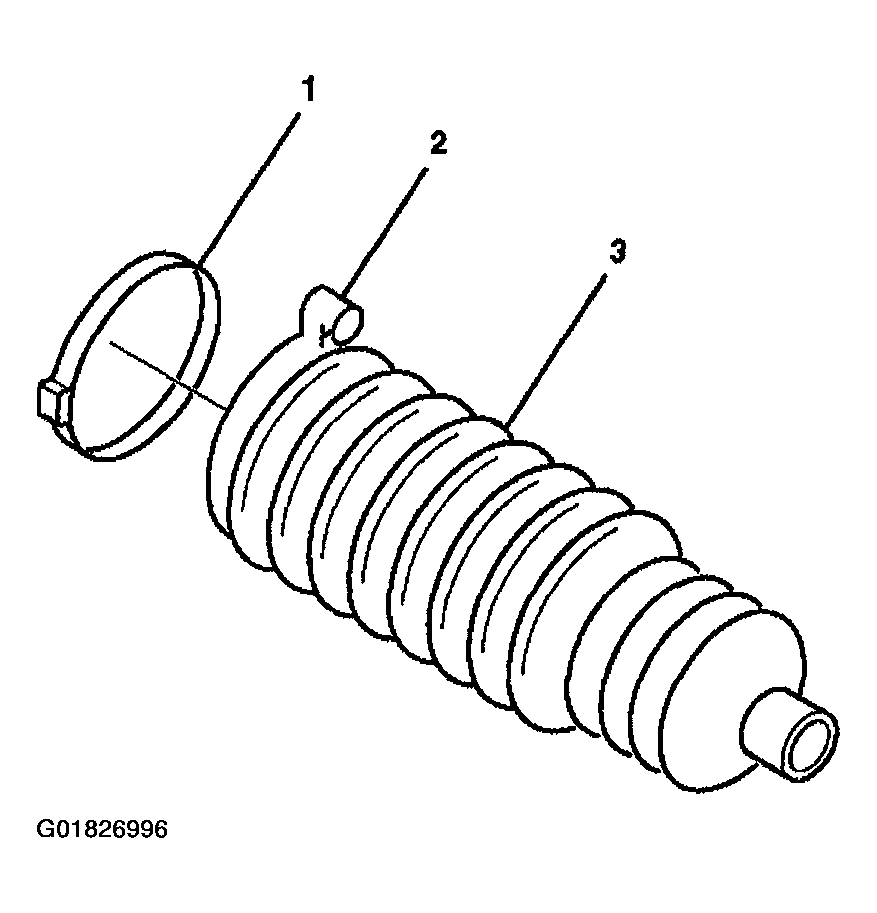

Fig 3: Boot Clamp

Courtesy of GENERAL MOTORS CORP.

Remove the boot clamp (1) from the rack and pinion boot with side cutters.
Discard the boot clamp (1).

Fig 4: Removing Rack & Pinion Boot

Courtesy of GENERAL MOTORS CORP.

Remove the rack and pinion boot (1) from the rack and pinion gear assembly.
