Disassembly Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the hydraulic pump (1) on a fixed, flat surface, with the shaft facing upward.

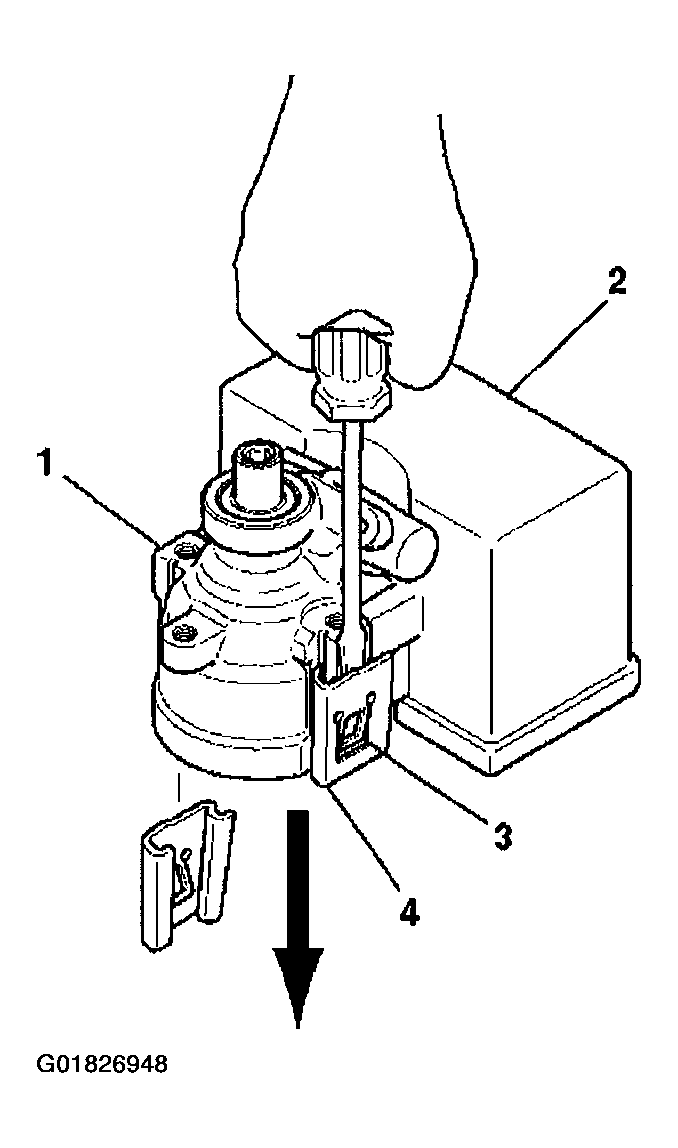

    Fig 1: Removing Power Steering Reservoir (CB Series)
    G01826948Courtesy of GENERAL MOTORS CORP.
  2. Insert a screwdriver into the retaining clip tab (3).
  3. Using the screwdriver, force the retaining clip tab (3) outward.
  4. Slide the reservoir clip (4) away from the hydraulic pump assembly (1).
  5. Repeat the above steps to remove the second reservoir clip (4).
  6. Remove the reservoir (2) from the hydraulic pump housing (1).
  7. Remove the O-ring seal from the neck of the reservoir (2) or the hydraulic pump housing (1). Discard the O-ring seal.
