Assembly Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the new O-ring seal with power steering fluid.
  2. Install the new O-ring seal onto the neck of the reservoir (2).
  3. Install the reservoir (2) onto the hydraulic pump assembly (1). Ensure the reservoir neck is completely engaged onto the hydraulic pump assembly (1).

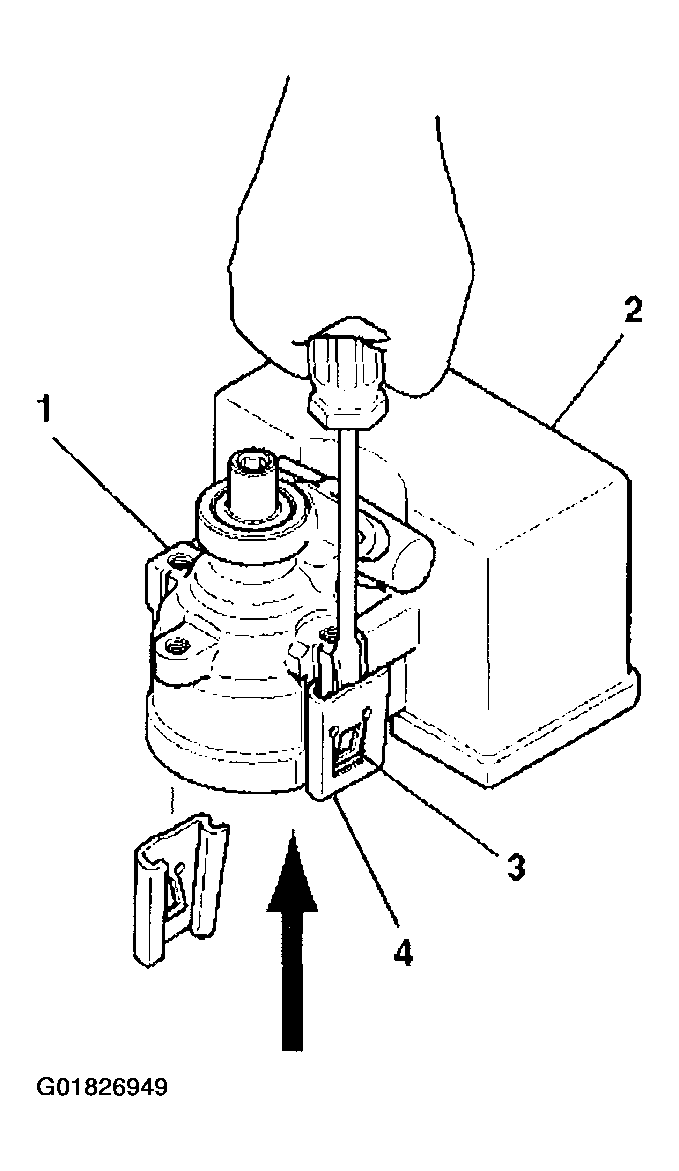

    Fig 1: Power Steering Reservoir (CB Series)
    G01826949Courtesy of GENERAL MOTORS CORP.
  4. Align the feet of the reservoir with the sides of the hydraulic pump housing.
  5. Install the new reservoir retaining clips (4) (supplied with the pump). Ensure the retaining clip tabs (3) fully engage with the hydraulic pump housing (1).
