Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belt from the pump. Refer to DRIVE BELT REPLACEMENT .

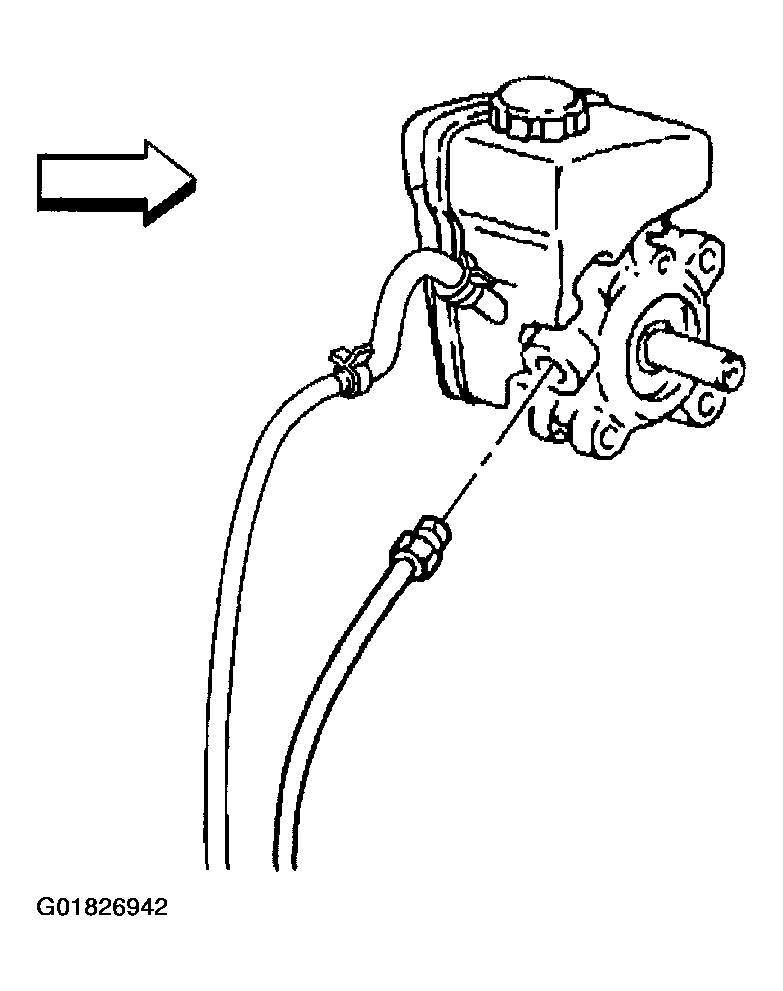

    2. Fig 1: Power Steering Pressure Hose At Pump
    G01826942Courtesy of GENERAL MOTORS CORP.
  2. Remove the pressure hose from the pump.

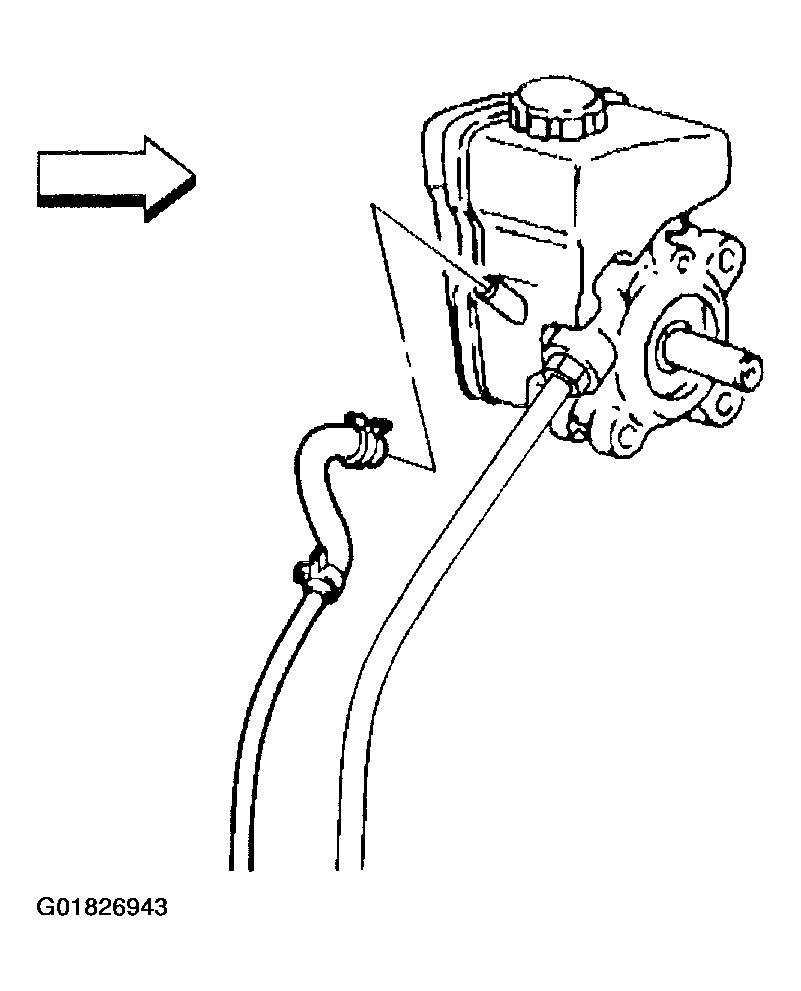

    3. Fig 2: Power Steering Return Hose At Pump
    G01826943Courtesy of GENERAL MOTORS CORP.
  3. Remove the return hose from the pump.

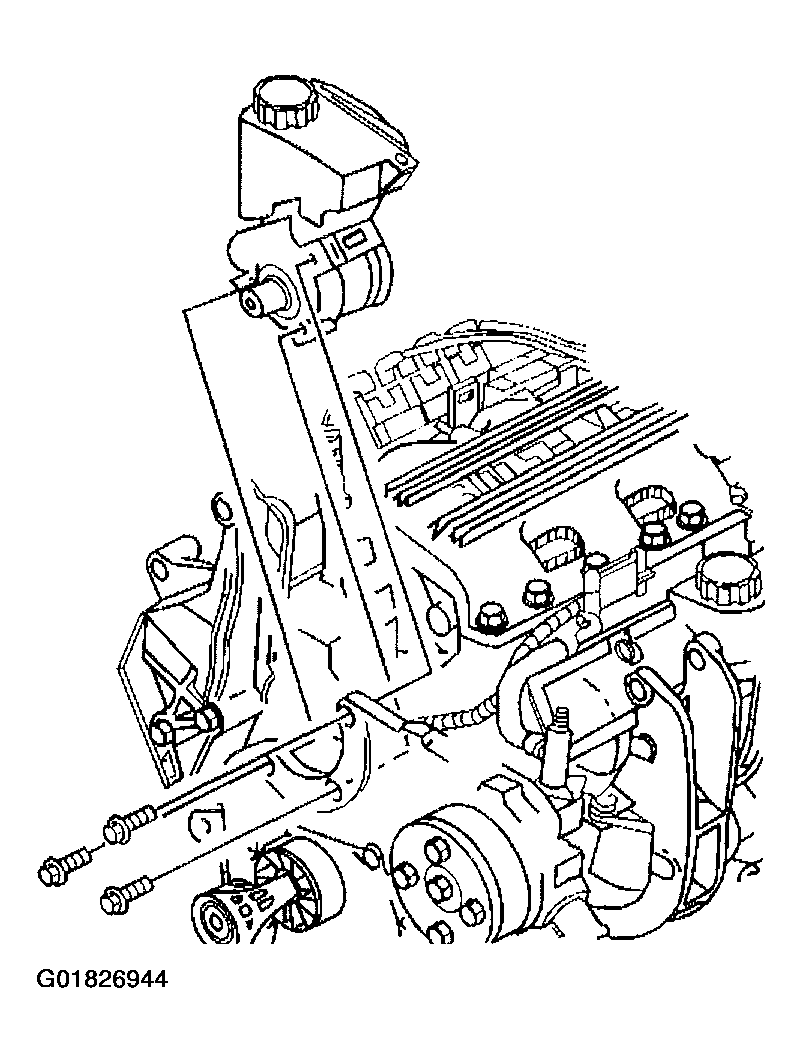

    4. Fig 3: Power Steering Pump Mount Bolts
    G01826944Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts from the pump.
  5. Remove the power steering pump from the vehicle.
  6. Remove the power steering pump pulley from the pump. Refer to Power Steering Pulley Replacement .
  7. Remove the reservoir from the pump.
