Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT .
  2. Remove the power steering hoses from the power steering hose retainers.
    IMPORTANT: Do NOT disconnect the power steering hoses from the power steering pump.
  3. Remove the power steering pump from the engine for clearance. Refer to Power Steering Pump Replacement .

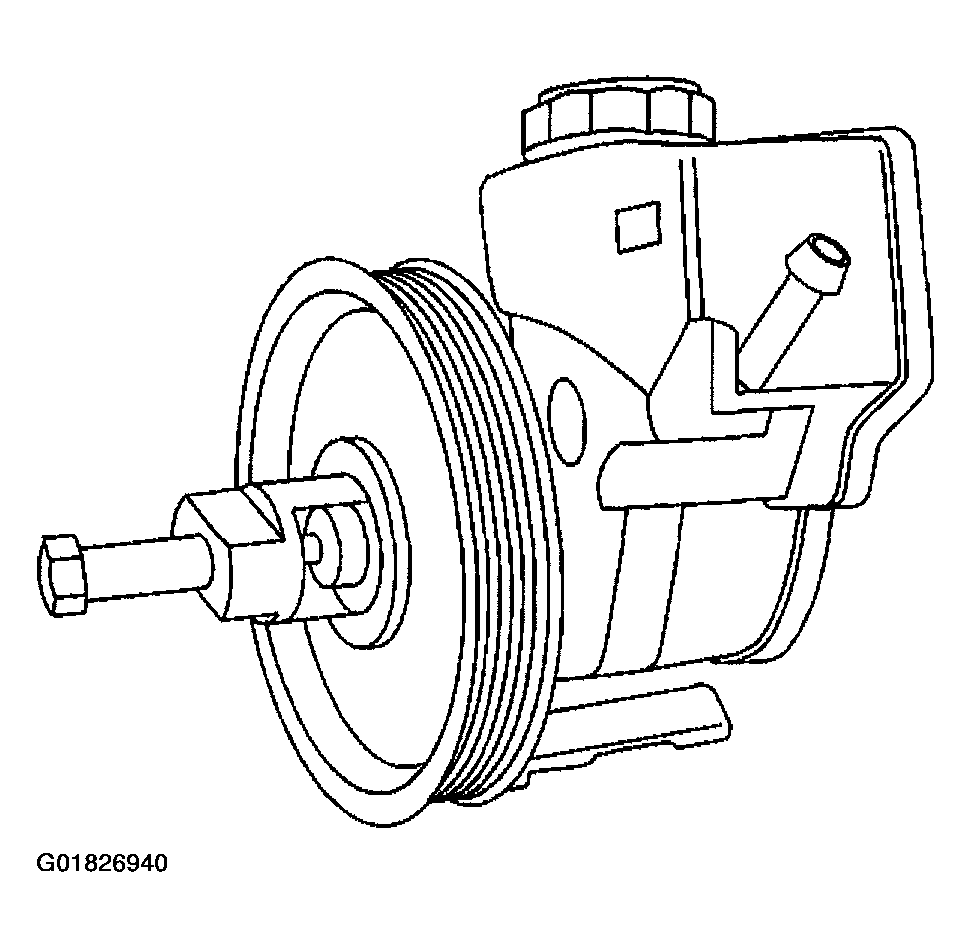

    4. Fig 1: Removing Power Steering Pulley Using J 37609-A
    G01826940Courtesy of GENERAL MOTORS CORP.
  4. Use J 37609-A  in order to remove the pump pulley.
