Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING & JACKING VEHICLE .
  2. If the vehicle is equipped with all wheel drive, remove the right side engine splash shield in order to access the heat shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE .

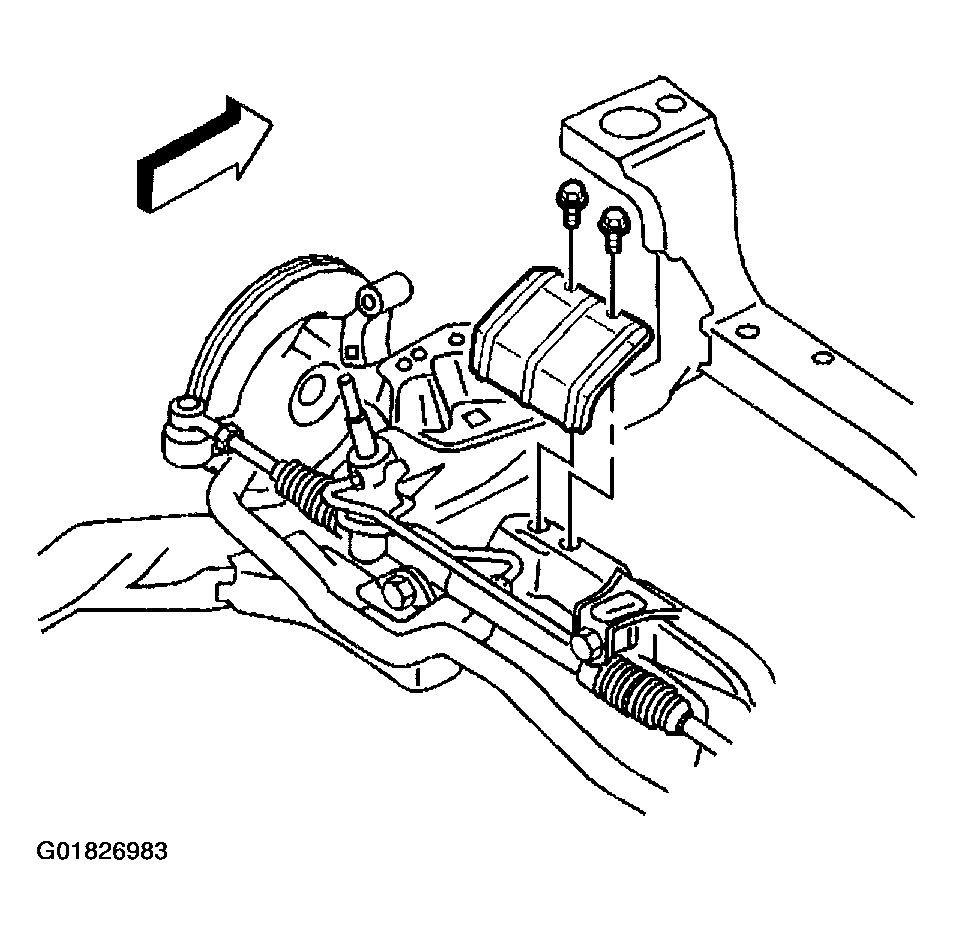

    Fig 1: Right Side Engine Splash Shield
    G01826983Courtesy of GENERAL MOTORS CORP.
  3. Remove the steering gear heat shield bolts.

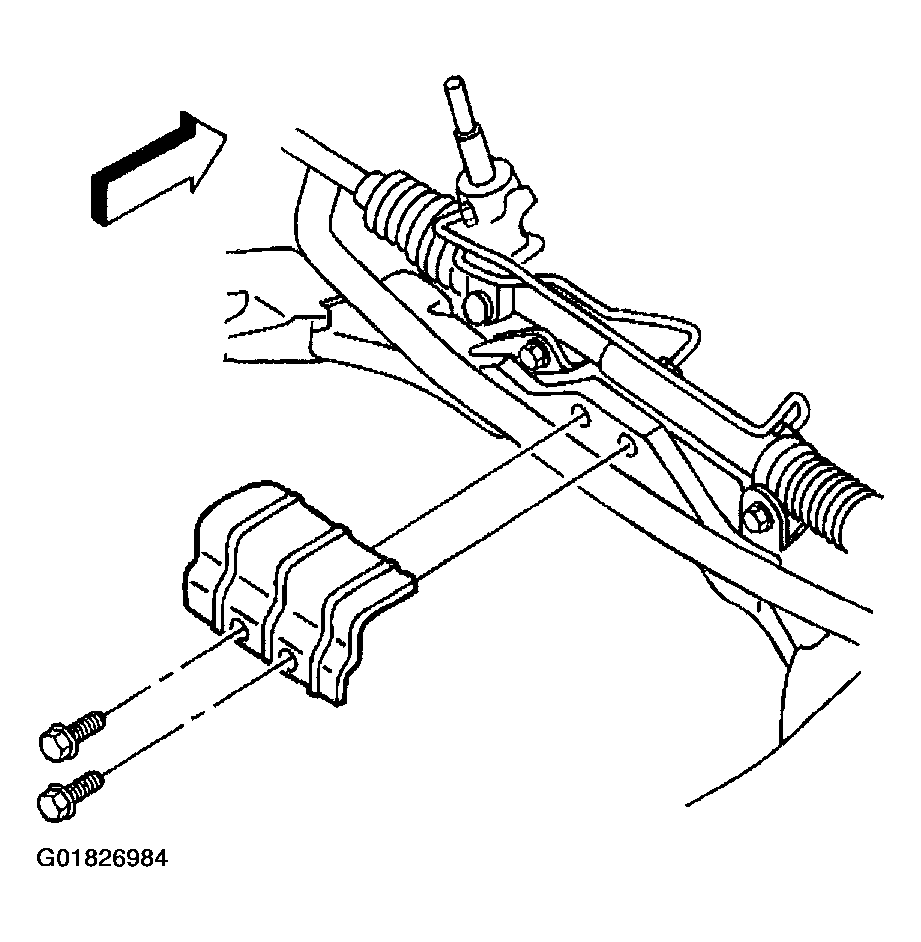

    Fig 2: Steering Gear Heat Shield
    G01826984Courtesy of GENERAL MOTORS CORP.
  4. Remove the steering gear heat shield.
