Power Steering Pump Disassembled View (CB Series Pump)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

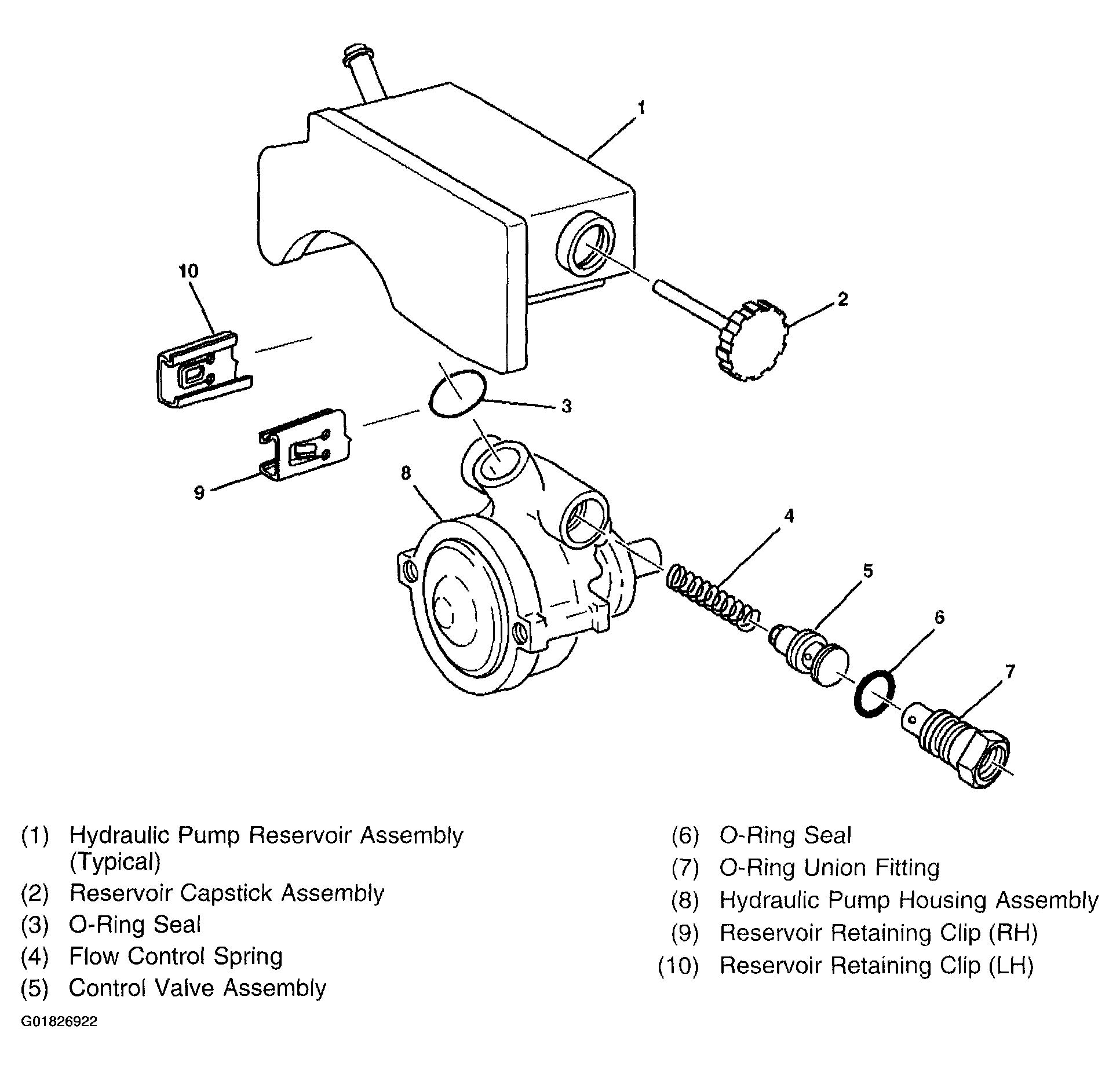

Fig 1: Power Steering Pump Assembly Disassembled View - CB Series
G01826922Courtesy of GENERAL MOTORS CORP.
