Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If you are replacing the wheel(s), the wheel stud(s), the wheel nut(s) or the wheel bolt(s), install only new GM original equipment parts. Installation of used parts or non-GM original equipment parts may cause the wheel to loosen, loss of tire air pressure, poor vehicle handling and loss of vehicle control resulting in personal injury.
  1. Raise and support the vehicle. Refer to LIFTING & JACKING VEHICLE .
  2. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the brake caliper bracket with the brake caliper. Refer to FRONT BRAKE CALIPER .
  4. Remove the brake rotor. Refer to FRONT BRAKE ROTOR .

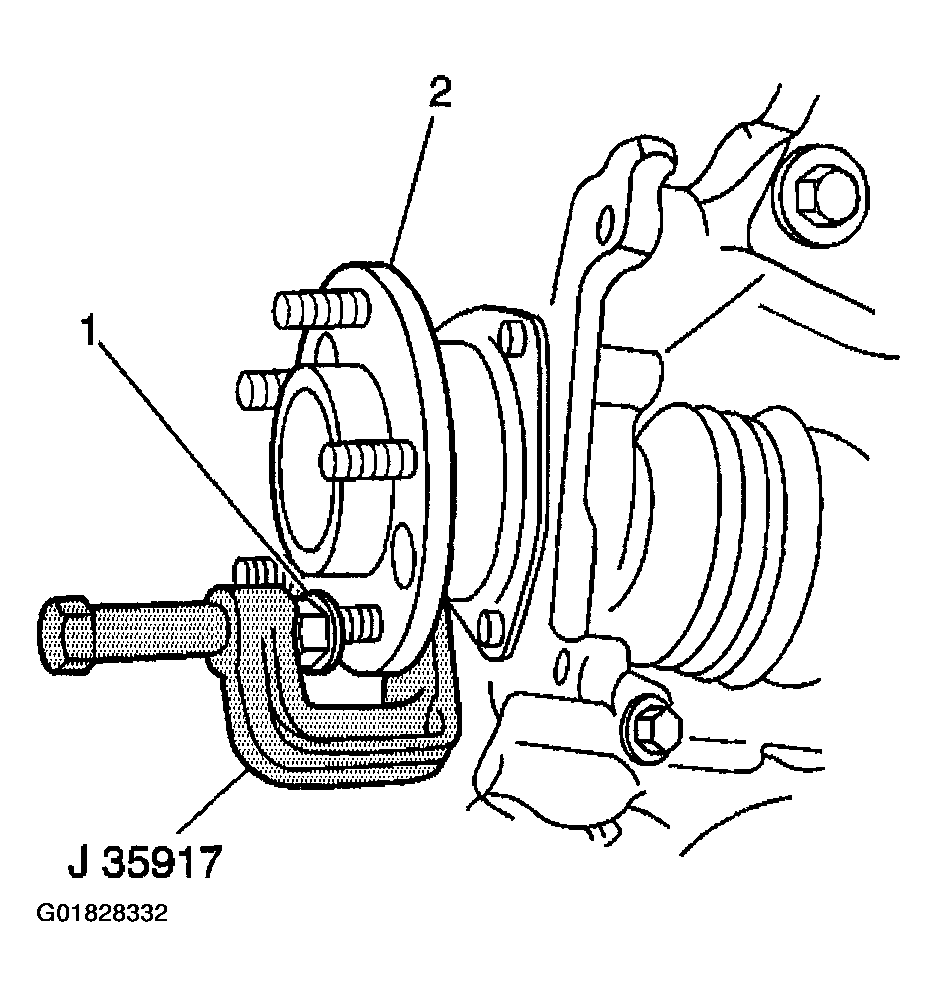

  5. Use the J 35917  in order to press the wheel stud (1) from the bearing/hub (2).
    Fig 1: Removing Wheel Stud From Bearing/Hub Using J 35917
    G01828332Courtesy of GENERAL MOTORS CORP.
