Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING & JACKING VEHICLE .
  2. Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the front wheel drive shaft bearing. Refer to Wheel Bearing/Hub Replacement - Front .
  4. Remove the front lower control arm ball stud. Refer to Lower Control Arm Replacement .
  5. Remove the outer tie rod end from the steering knuckle. Use the J 24319-B  .
  6. Scribe the strut to the knuckle.

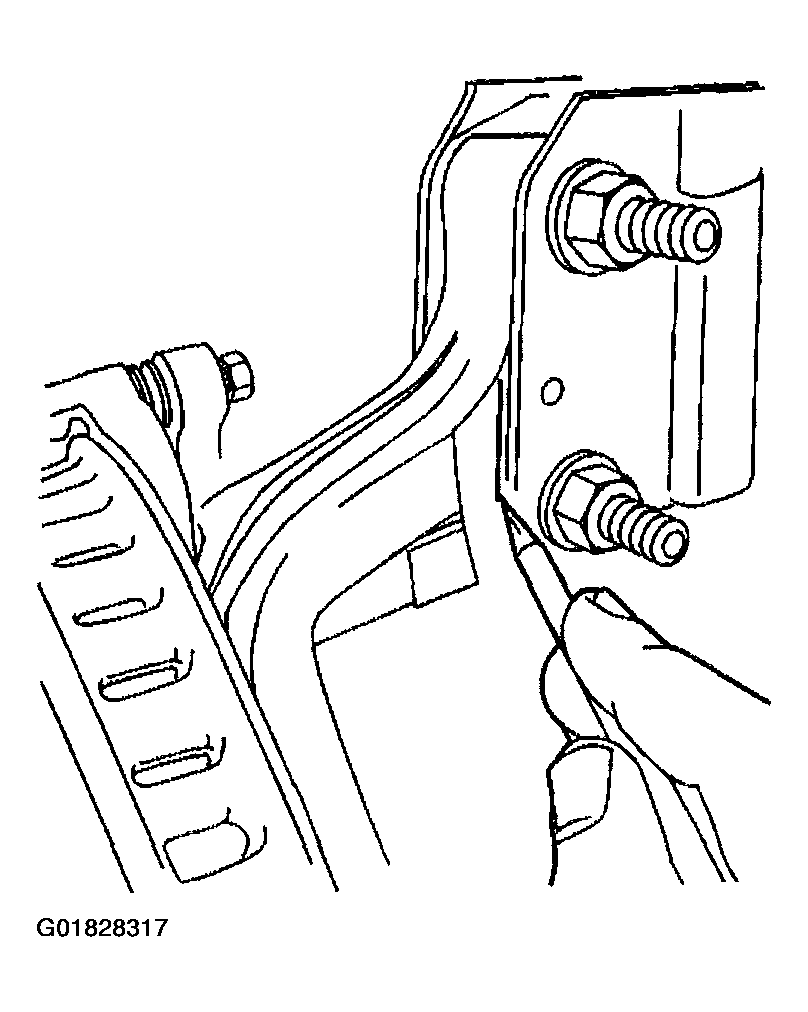

    7. Fig 1: Marking Strut To Knuckle
    G01828317Courtesy of GENERAL MOTORS CORP.
  7. Remove the bolts connecting the strut to the knuckle.
  8. Remove the knuckle from the vehicle.

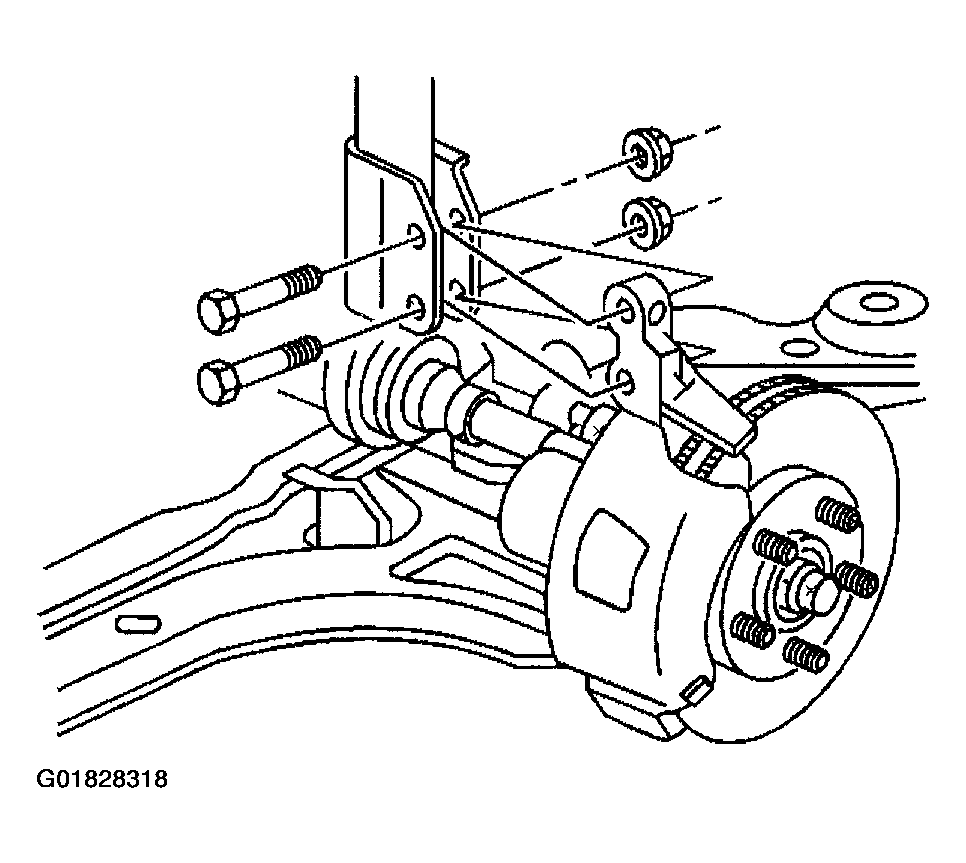

    Fig 2: Removing Bolts & Strut To Knuckle
    G01828318Courtesy of GENERAL MOTORS CORP.
