Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING & JACKING VEHICLE .
  2. Remove the left front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the left and right stabilizer shaft insulators and brackets. Refer to Stabilizer Shaft Insulator Replacement .

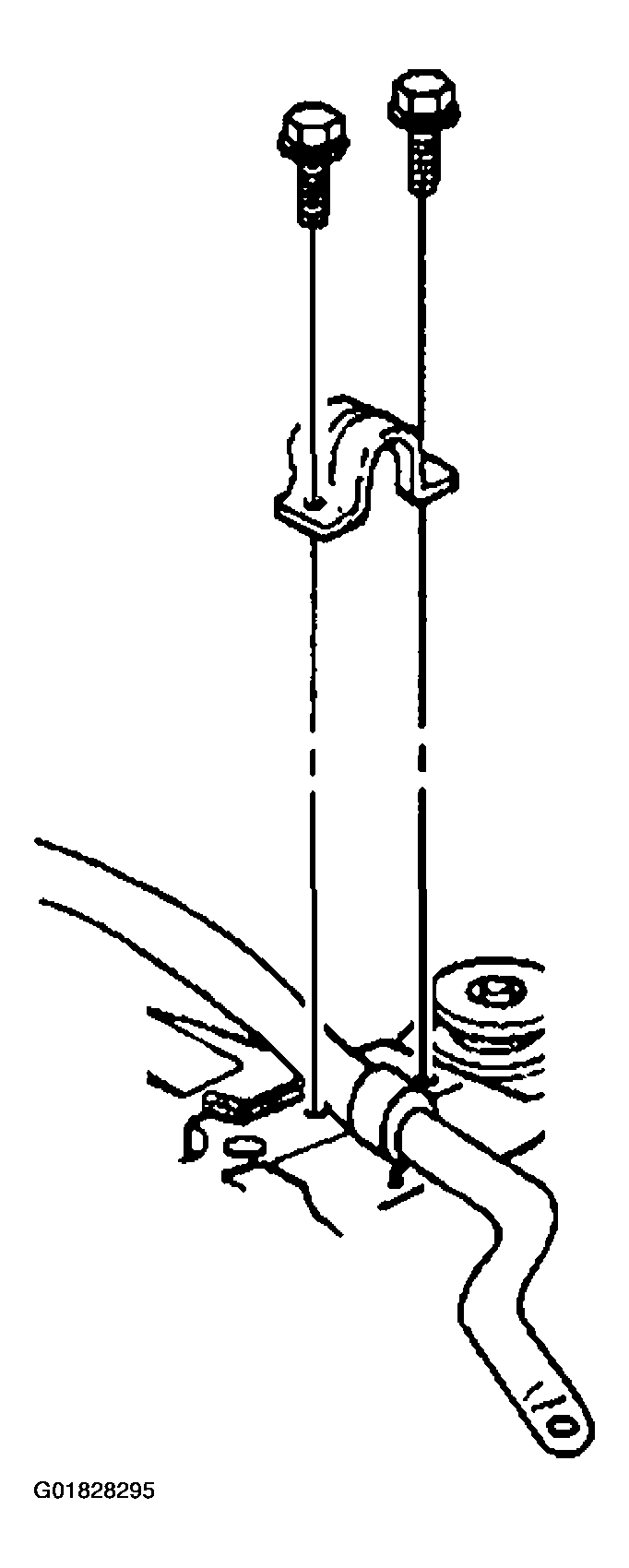

    Fig 1: Removing Left/Right Stabilizer Shaft Insulators & Brackets
    G01828295Courtesy of GENERAL MOTORS CORP.
  4. Remove the left and right stabilizer shaft links. Refer to Stabilizer Shaft Link Replacement .
  5. Remove the stabilizer shaft from the left side of the vehicle.
    Fig 2: Removing Left/Right Stabilizer Shaft Links
    G01828296Courtesy of GENERAL MOTORS CORP.
