Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer shaft from the left side of the vehicle.
  2. Install the left and right stabilizer shaft links. Refer to Stabilizer Shaft Link Replacement .
    Fig 1: Installing Left/Right Stabilizer Shaft Links
    G01828297Courtesy of GENERAL MOTORS CORP.
  3. Install the left and right stabilizer shaft insulators and brackets. Refer to Stabilizer Shaft Insulator Replacement .
  4. Install the left front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  5. Lower the vehicle.

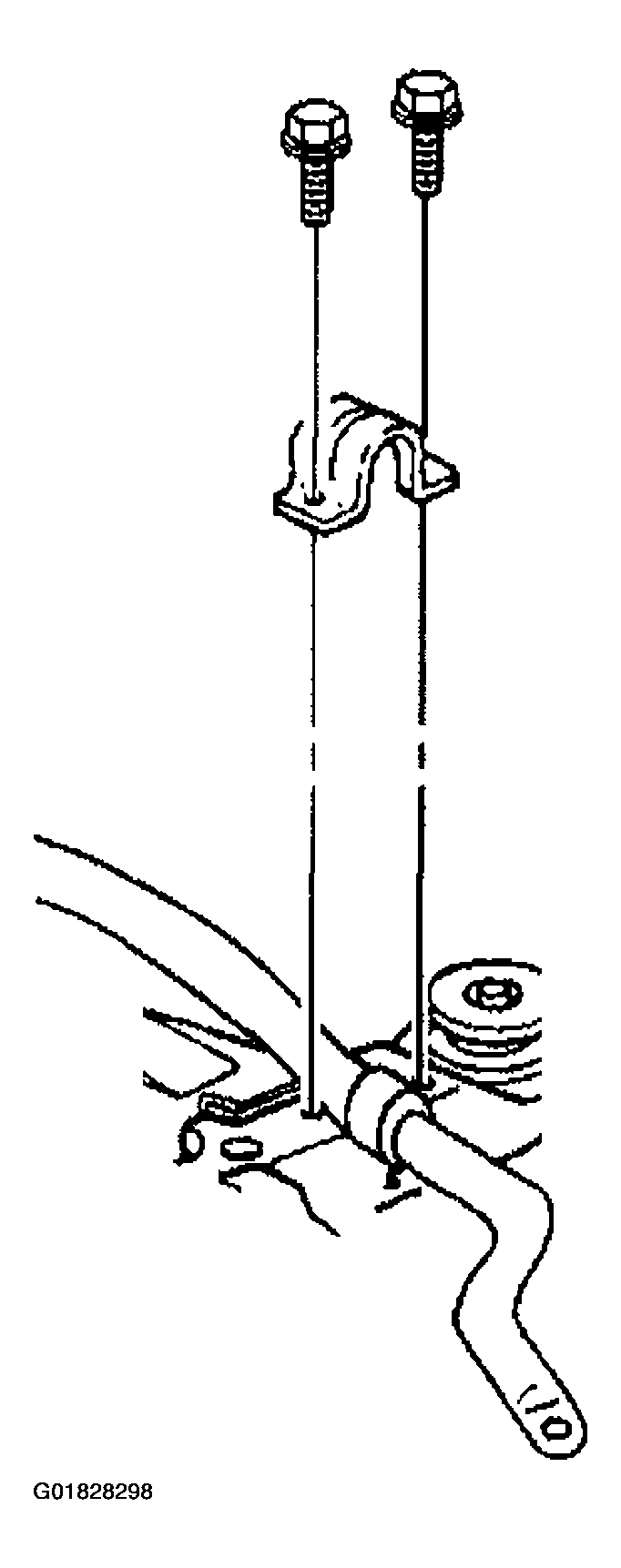

    Fig 2: Installing Left/Right Stabilizer Shaft Insulators & Brackets
    G01828298Courtesy of GENERAL MOTORS CORP.
