Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING & JACKING VEHICLE .
  2. Move/turn the tires in order to access the stabilizer shaft insulator brackets.
  3. Remove the left and right side stabilizer shaft insulator bracket bolts.
  4. Remove the left and right side stabilizer shaft insulator brackets.

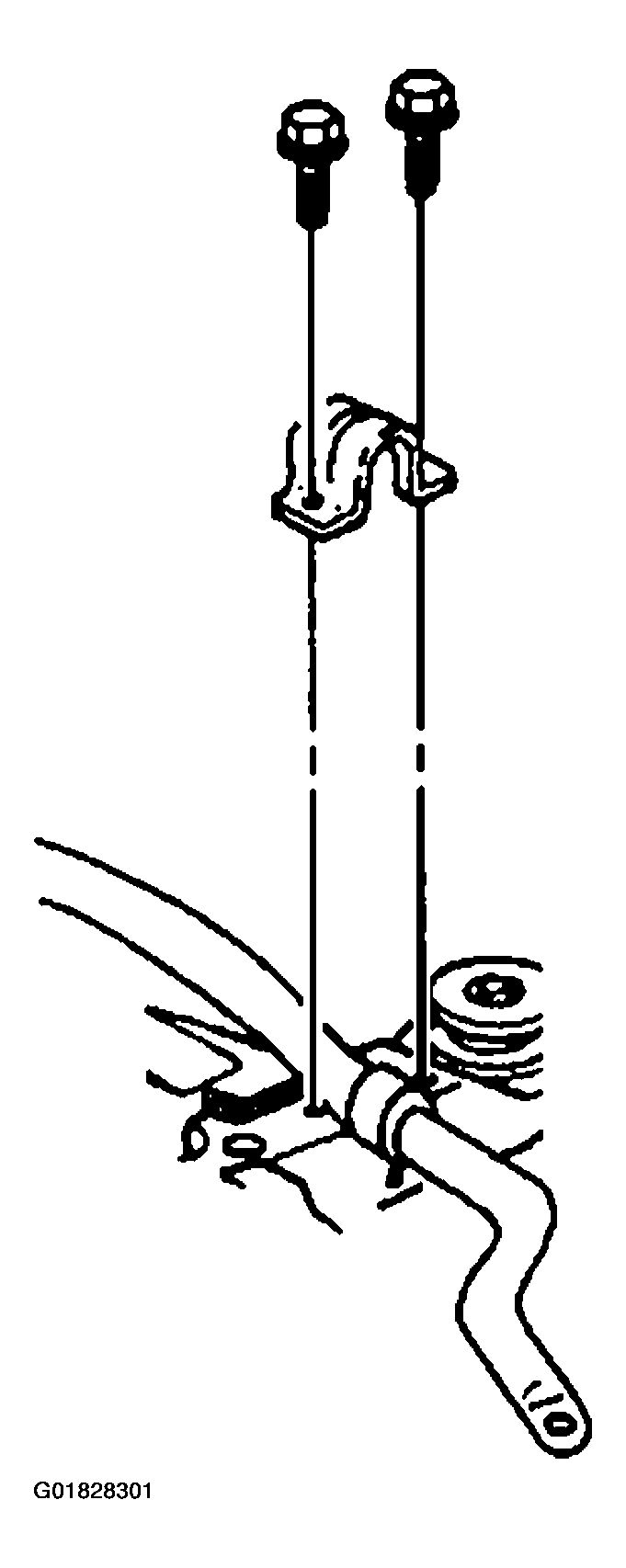

    Fig 1: Removing Left/Right Side Stabilizer Shaft Insulator Bracket & Bolts
    G01828301Courtesy of GENERAL MOTORS CORP.
  5. Remove the left and right side stabilizer shaft insulators (1) from the stabilizer shaft (2).
    Fig 2: Removing Left/Right Side Stabilizer Shaft Insulators
    G01828302Courtesy of GENERAL MOTORS CORP.
