Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the left and right side stabilizer shaft insulators (1) to the stabilizer shaft (2).
    Fig 1: Installing Left/Right Side Stabilizer Shaft Insulators
    G01828303Courtesy of GENERAL MOTORS CORP.
  2. Install the left and right side stabilizer shaft insulator brackets.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the left and right side stabilizer shaft insulator bracket bolts.

    Tighten

    Tighten the stabilizer shaft insulator bracket bolts to 48 N.m (35 lb in).

  4. Lower the vehicle.

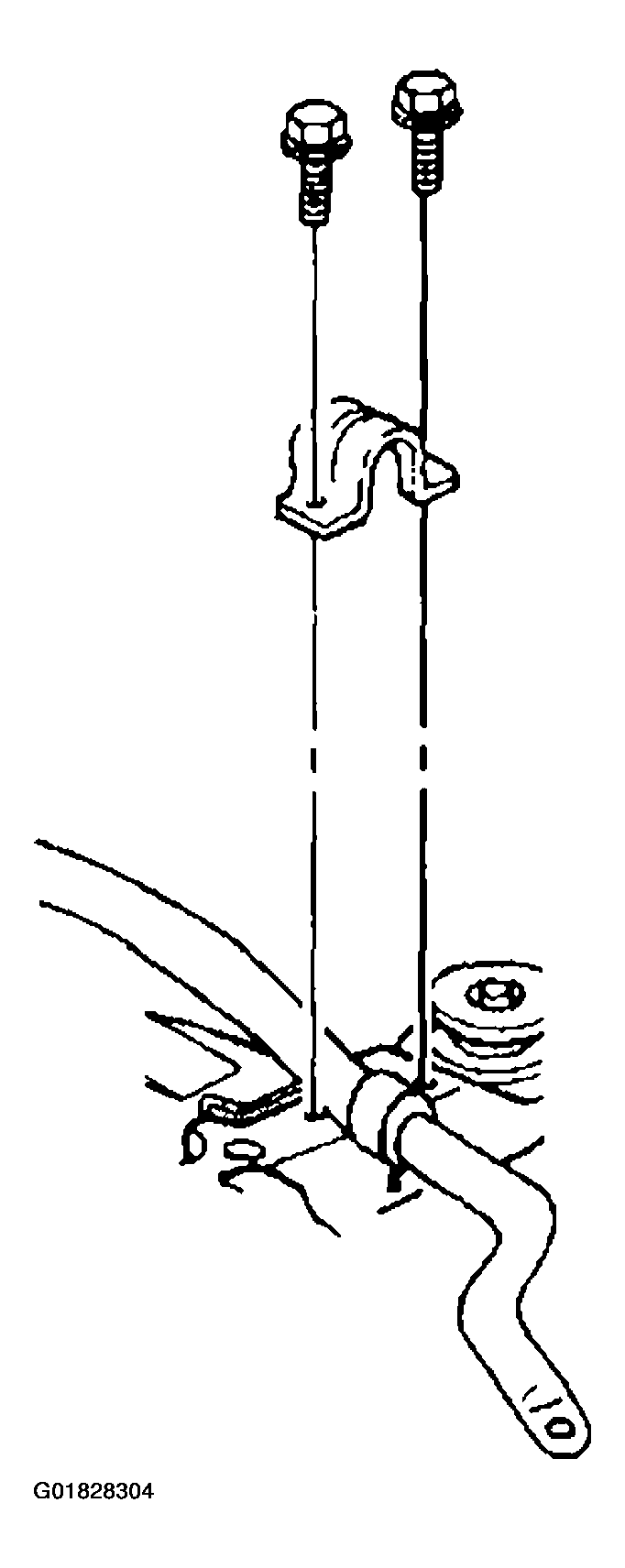

    Fig 2: Installing Left/Right Side Stabilizer Shaft Insulator Bracket & Bolts
    G01828304Courtesy of GENERAL MOTORS CORP.
