Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower control arm. Refer to Lower Control Arm Replacement .
  2. Secure the lower control arm in a vice.
  3. Mark the lower control arm along the flat edge of the bushing flange.

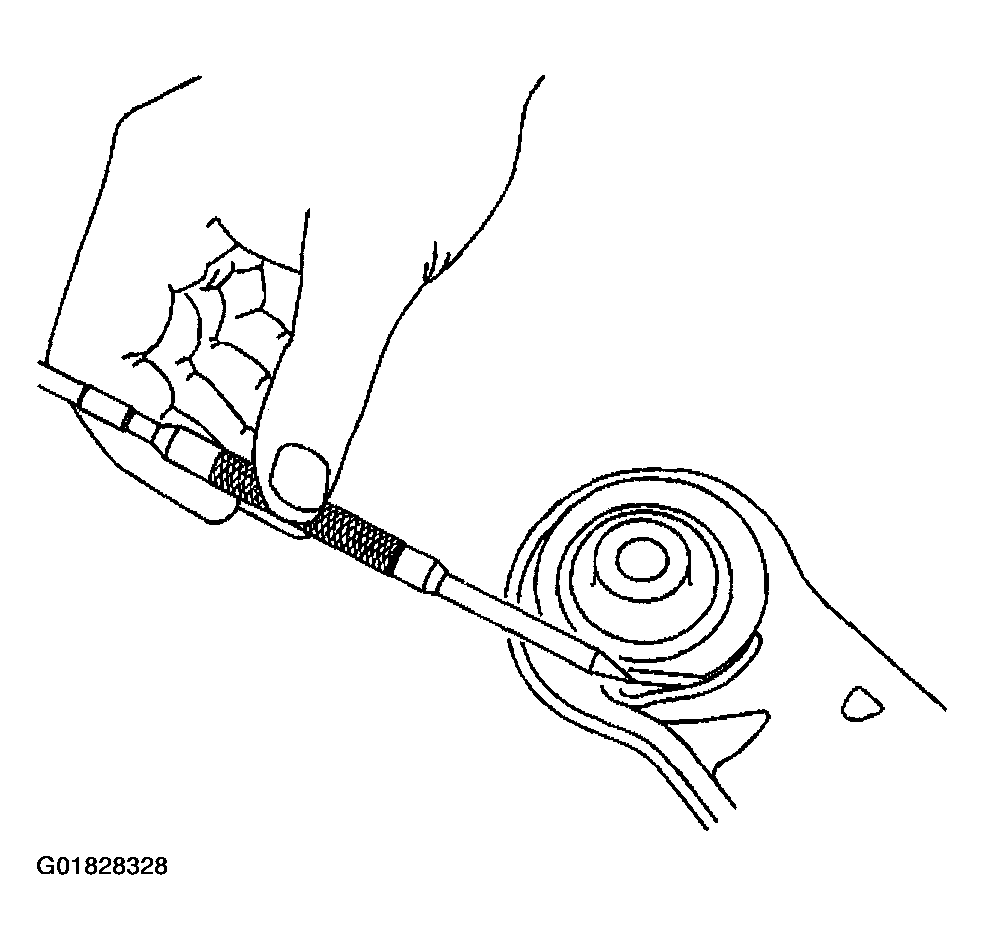

    Fig 1: Marking Lower Control Arm Along Flat Edge Of Bushing Flange
    G01828328Courtesy of GENERAL MOTORS CORP.

    Important:  Apply J 23444-A  , or equivalent high pressure lubricant, to the threads of the J 21474-27  .

  4. Assemble the following bushing removal tools as shown:
    • J 21474-27  Puller Bolt
    • J 21474  Control Arm Bushing Installer
    • J 34126  Driven Sprocket Support Bearing Installer
    • J 35379  Front Knuckle Support
    • J 21474-2  Bushing Installer
    • J 21474-4  Nut
  5. Tighten the J 21474-4  until the bushing is removed from the control arm.
  6. Disassemble the bushing removal tools.

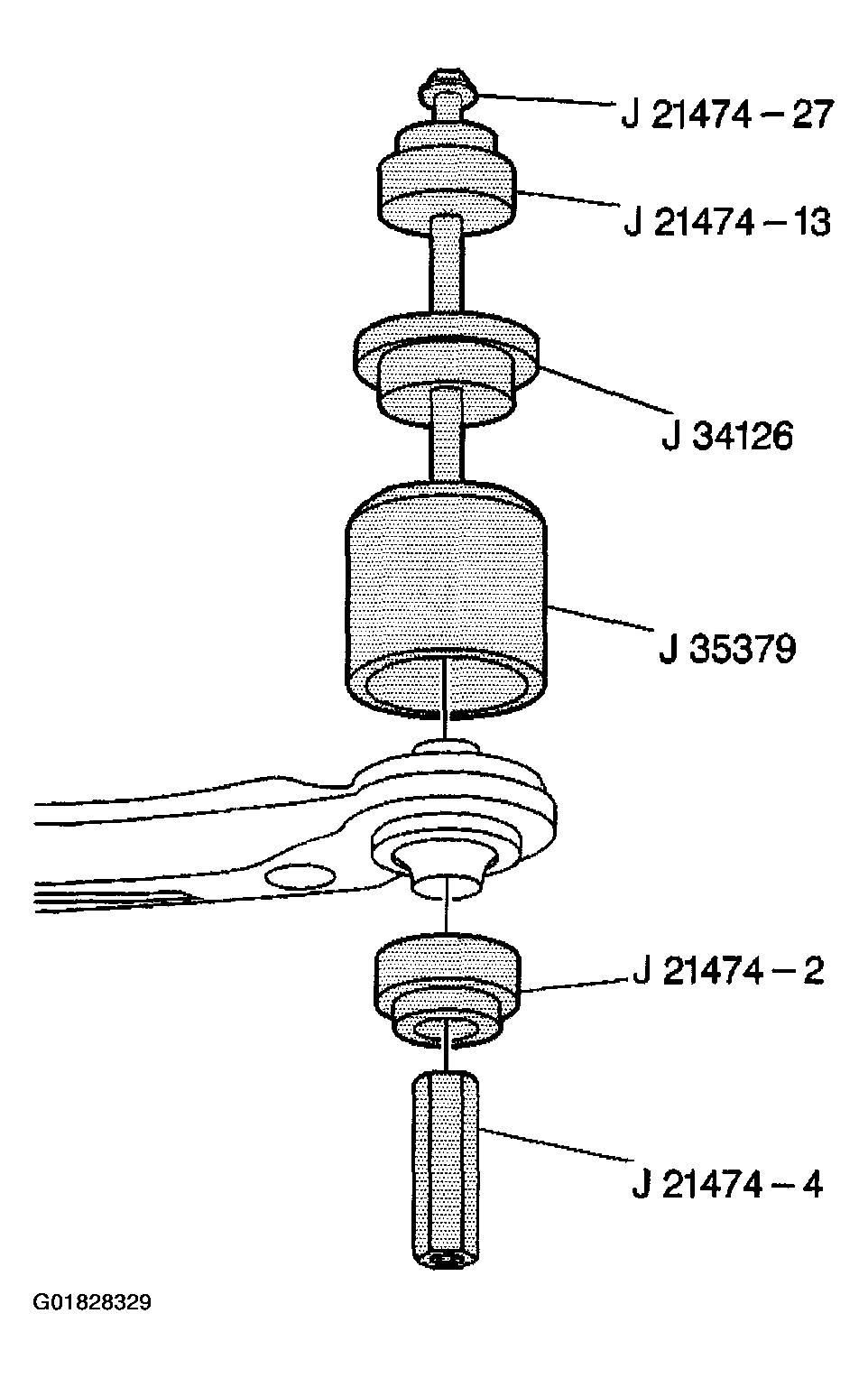

    Fig 2: Assembling The Bushing Removal Tools
    G01828329Courtesy of GENERAL MOTORS CORP.
