Removal & Installation (2.2L - VIN 4)
WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

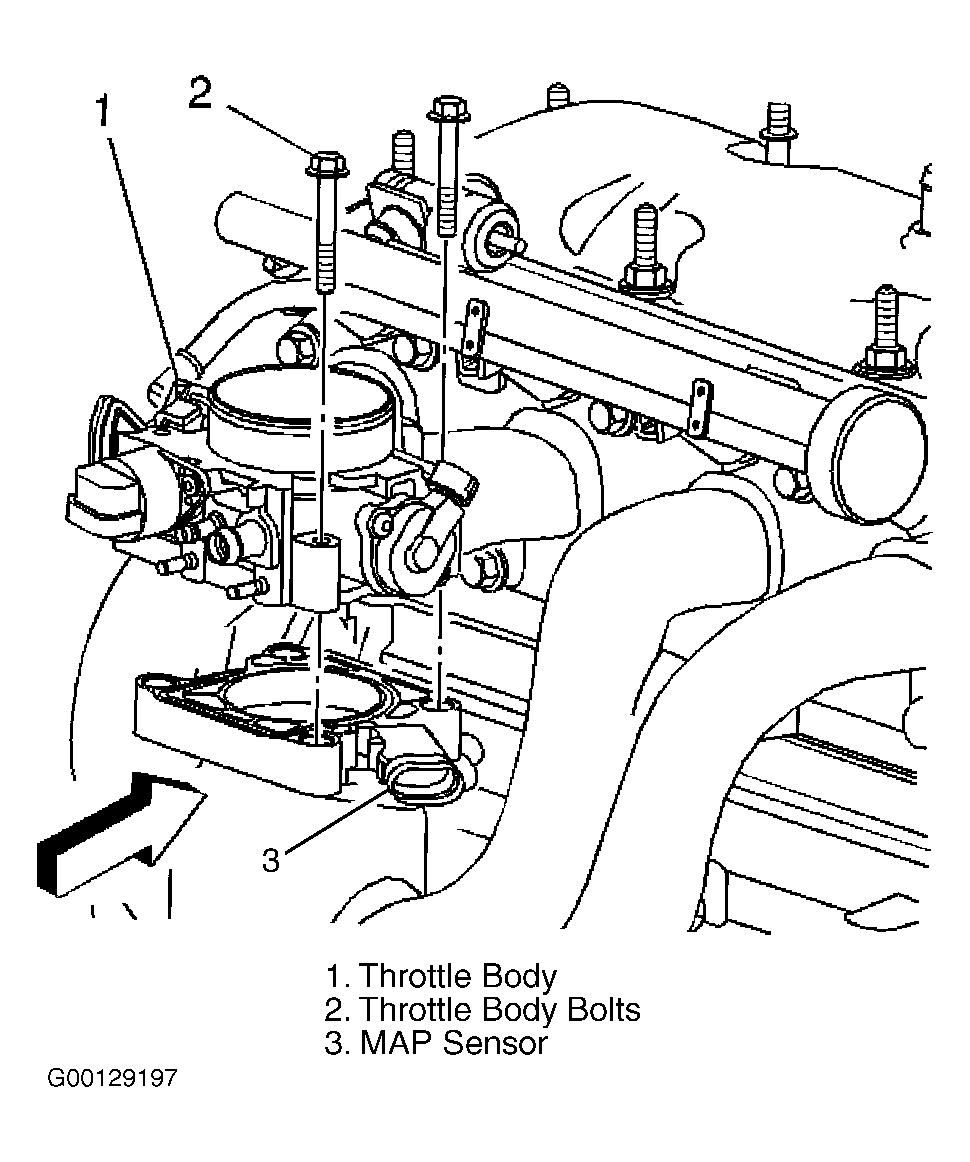

Manifold Absolute Pressure (MAP) sensor is located in the intake manifold, under the throttle body. See Fig 1. Remove throttle body. See THROTTLE BODY . Disconnect the MAP sensor electrical connector. Remove the MAP sensor from the intake manifold. To install, reverse removal procedure.
