Removal & Installation (2.2L - VIN F)
WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

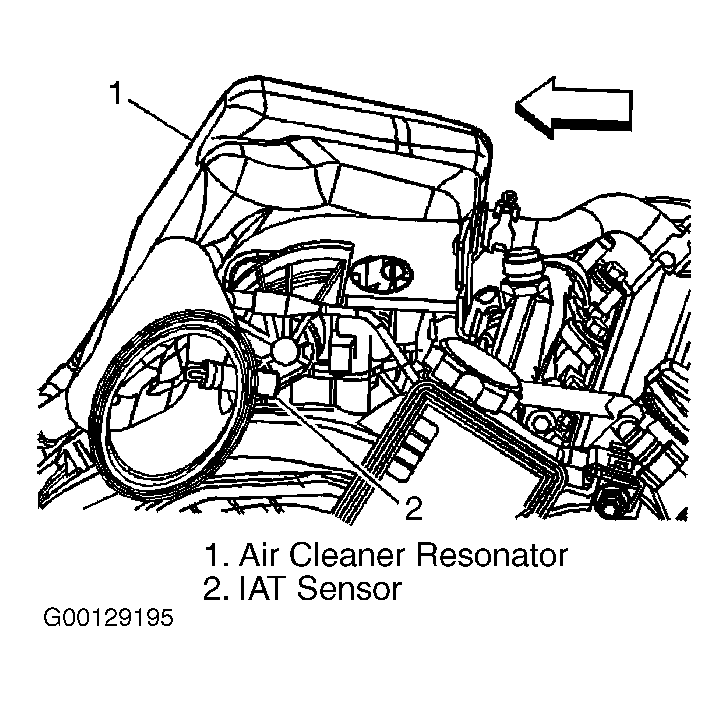

IAT sensor is located in air cleaner resonator. See Fig 1. Turn ignition off. Disconnect negative battery cable. Disconnect the air cleaner duct from the air cleaner resonator. Disconnect the IAT sensor harness connector. While twisting the IAT sensor, pull the sensor from the air cleaner resonator. To install, reverse removal procedure. Tighten air cleaner duct-to-air cleaner resonator clamp to 44 INCH lbs. (5 N.m).
