Mass Airflow Sensor: Installation
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix, 2002 Chevrolet Monte Carlo, 2002 Chevrolet Impala, 2002 Buick Regal, and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

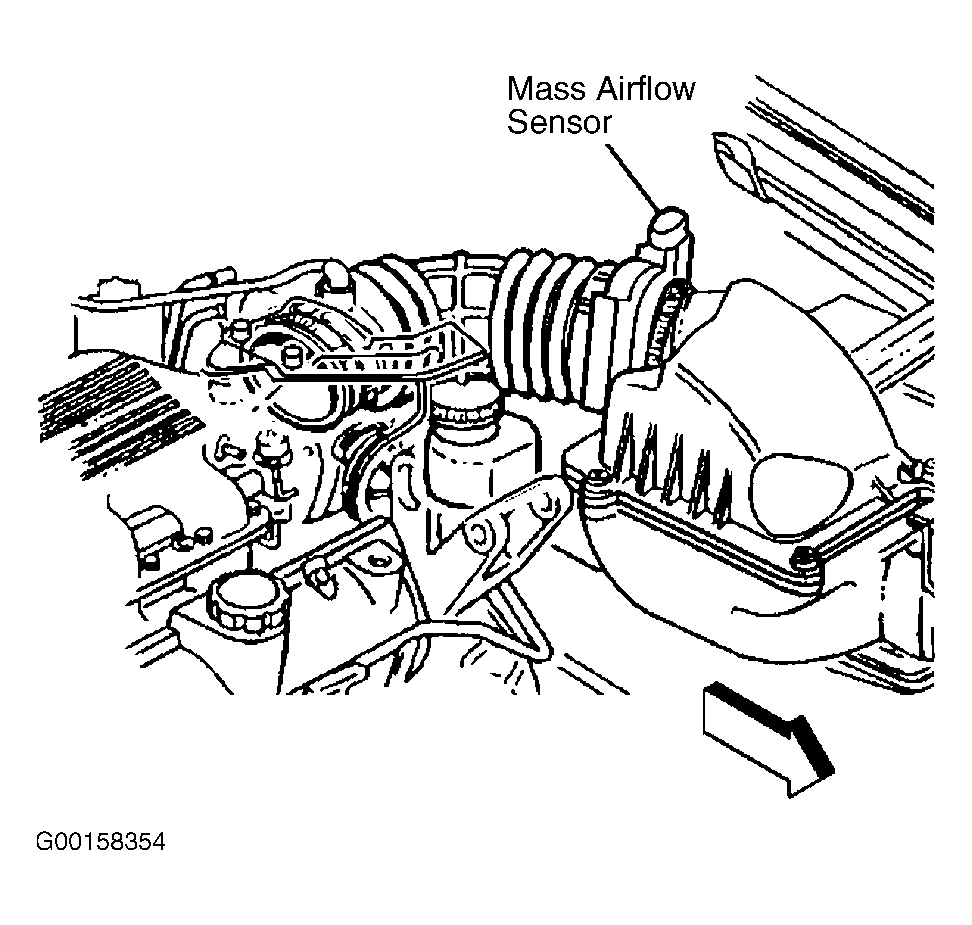

Install the MAF sensor to the air cleaner intake duct. Install the air cleaner intake duct to the air cleaner housing and the throttle body. Tighten the clamps to specification. See TORQUE SPECIFICATIONS . Connect the MAF sensor electrical connector. Connect the IAT sensor electrical connector. Start and idle the engine. Inspect the air cleaner intake duct for leaks.
Install the MAF sensor to the air filter housing. Install the air inlet duct to the MAF sensor and the throttle body. Connect the IAT sensor electrical connector. Connect the MAF sensor electrical connector. Start and idle the engine. Inspect the air intake duct for leaks.
