Removal & Installation (3.8L)
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix, 2002 Chevrolet Monte Carlo, 2002 Chevrolet Impala, 2002 Buick Regal, and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

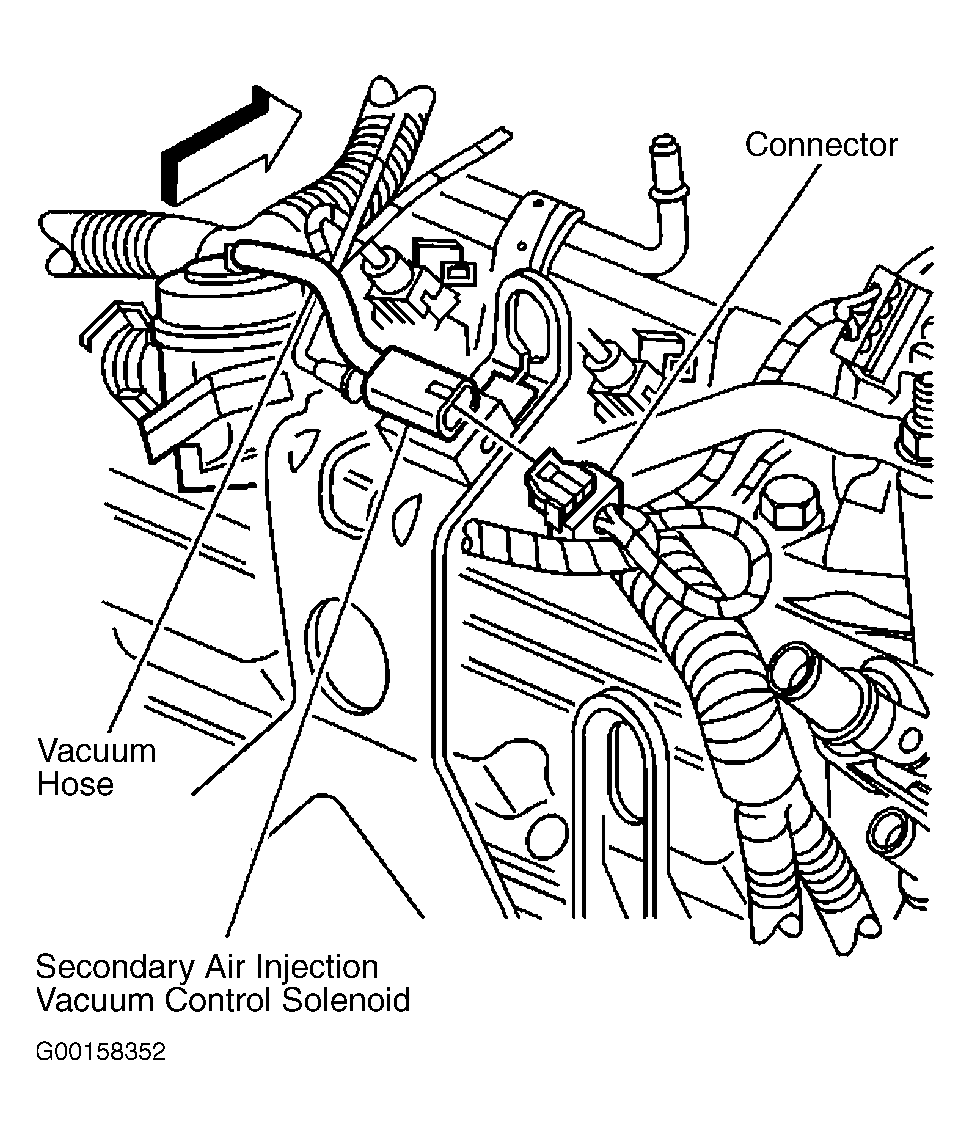

Turn OFF the ignition. Disconnect the vacuum hoses from the Secondary Air Injection (AIR) vacuum control solenoid. See Fig 1. Disconnect the electrical connector from the solenoid. Remove the solenoid fastener. Remove the solenoid from the vehicle. To install, reverse removal procedure.
