Instrument Panel, Gages, and Console Component Views

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

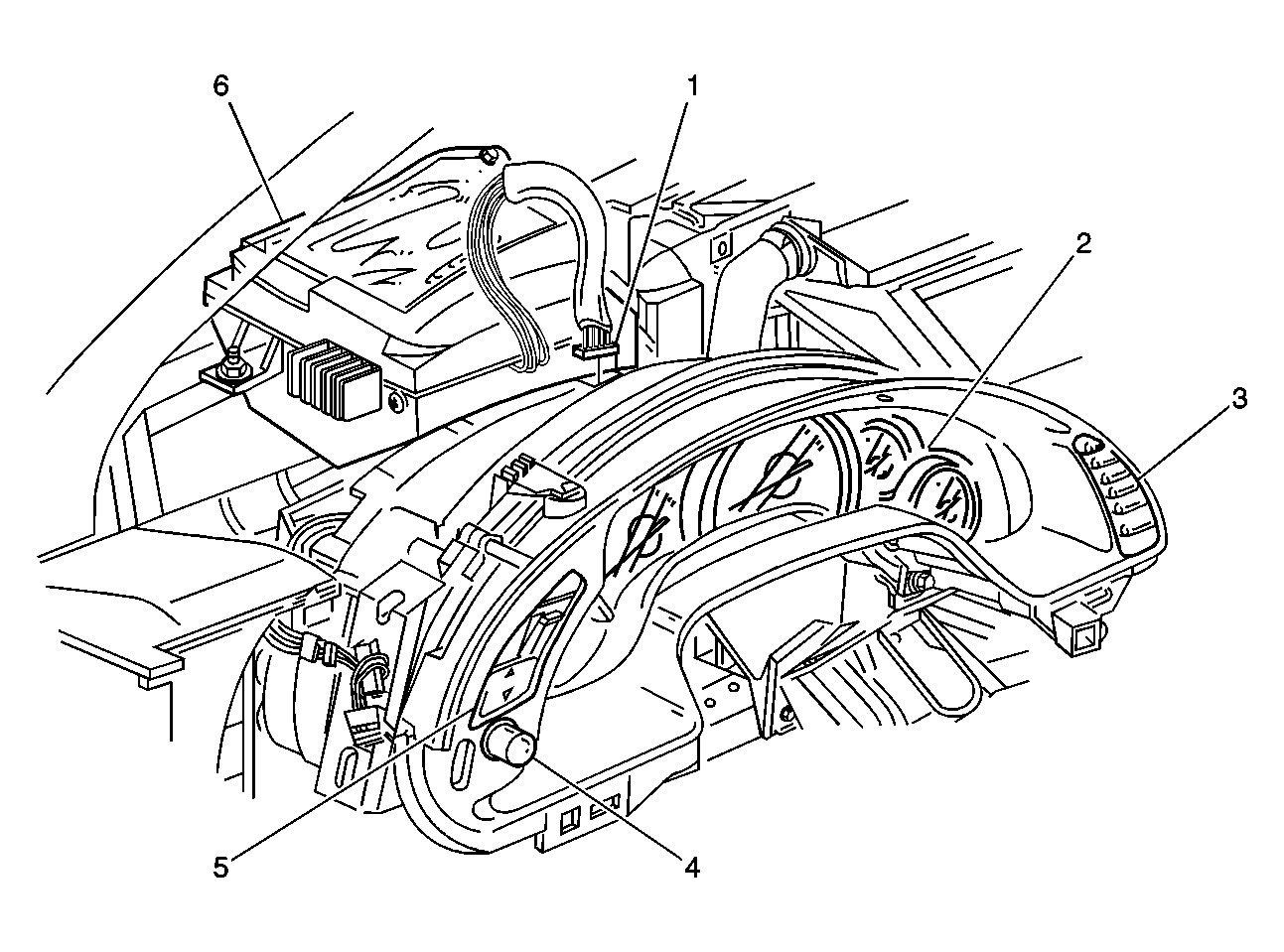

Fig 1: Instrument Cluster Component View
GM531006Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heads Up Display (HUD) Connector
2 Instrument Panel Cluster (IPC)
3 Driver Information Center (DIC) Switch-Right
4 Dimmer Switch
5 Heads Up Display (HUD) Switch
6 Heads Up Display (HUD)

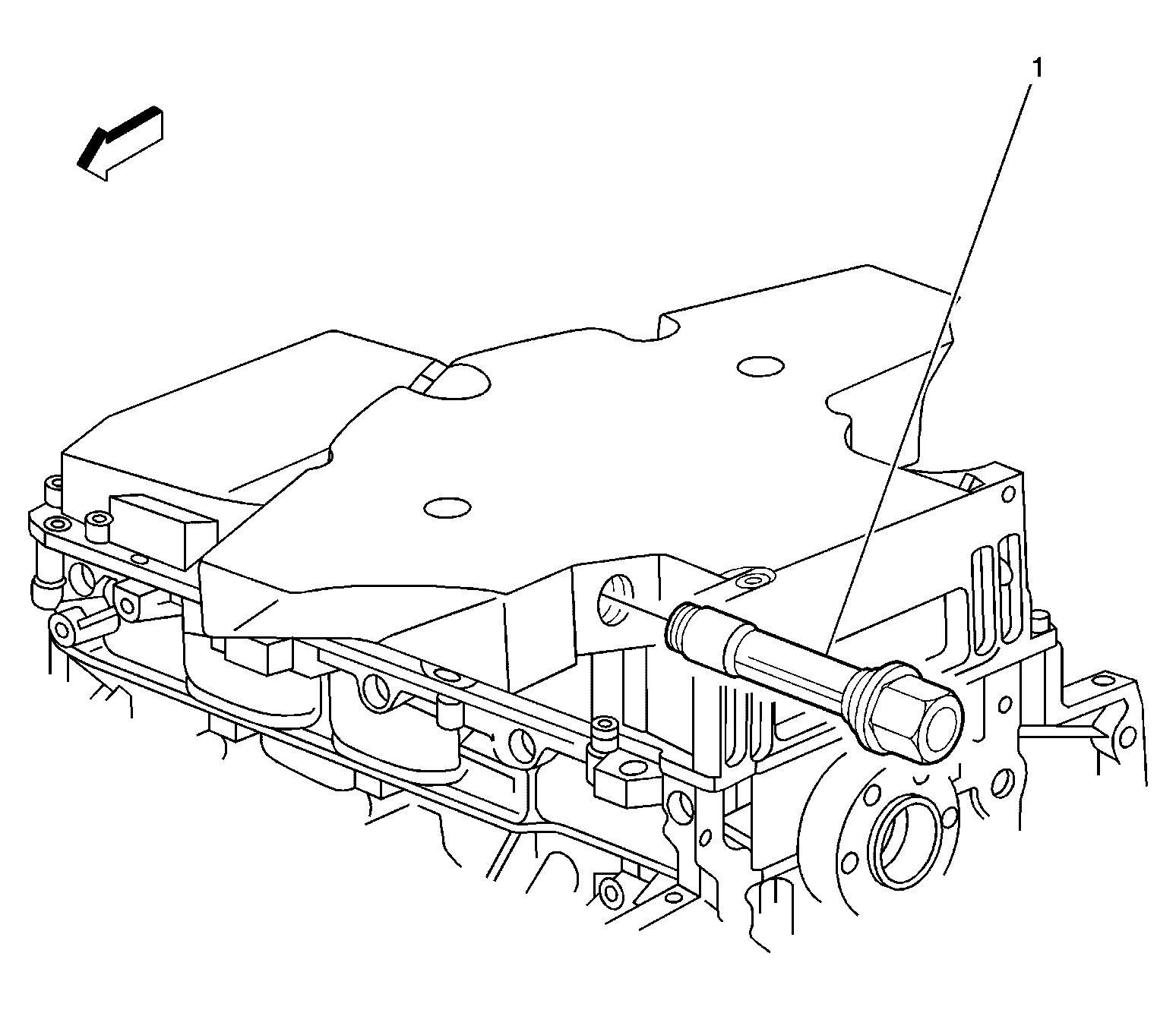

Fig 2: Engine Oil Level Switch Component View
GM899833Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Oil Level Switch
Fig 3: Rear Of Engine Component View
GM696026Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Oil Pressure (EOP) Sensor
2 Manifold Absolute Pressure (MAP) Sensor
3 Camshaft Position (CMP) Sensor
4 G107
5 C112
Fig 4: Lower Side Of Engine Component View - Left
GM697239Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G105
2 Engine Oil Temperature (EOT) Sensor
3 Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
Fig 5: Fuel Tanks Component View
GM901394Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Tank - Left
2 Fuel Pump and Sender Assembly
3 C402
4 Fuel Tank Pressure (FTP) Sensor
5 Fuel Level Sensor - Right
6 Fuel Tank - Right
7 C414
8 C412
