Removal & Installation

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. The EVAP canister vent valve is mounted on top of fuel tank. See Figure or Fig 1 .
  2. Remove the fuel tank. See FUEL TANK  under FUEL SYSTEMS. Disconnect the EVAP canister vent valve harness connector. Disconnect the hose from the EVAP canister vent valve.
  3. Release the lock tab on the EVAP canister vent bracket and remove the EVAP canister vent valve. To install, reverse removal procedure.

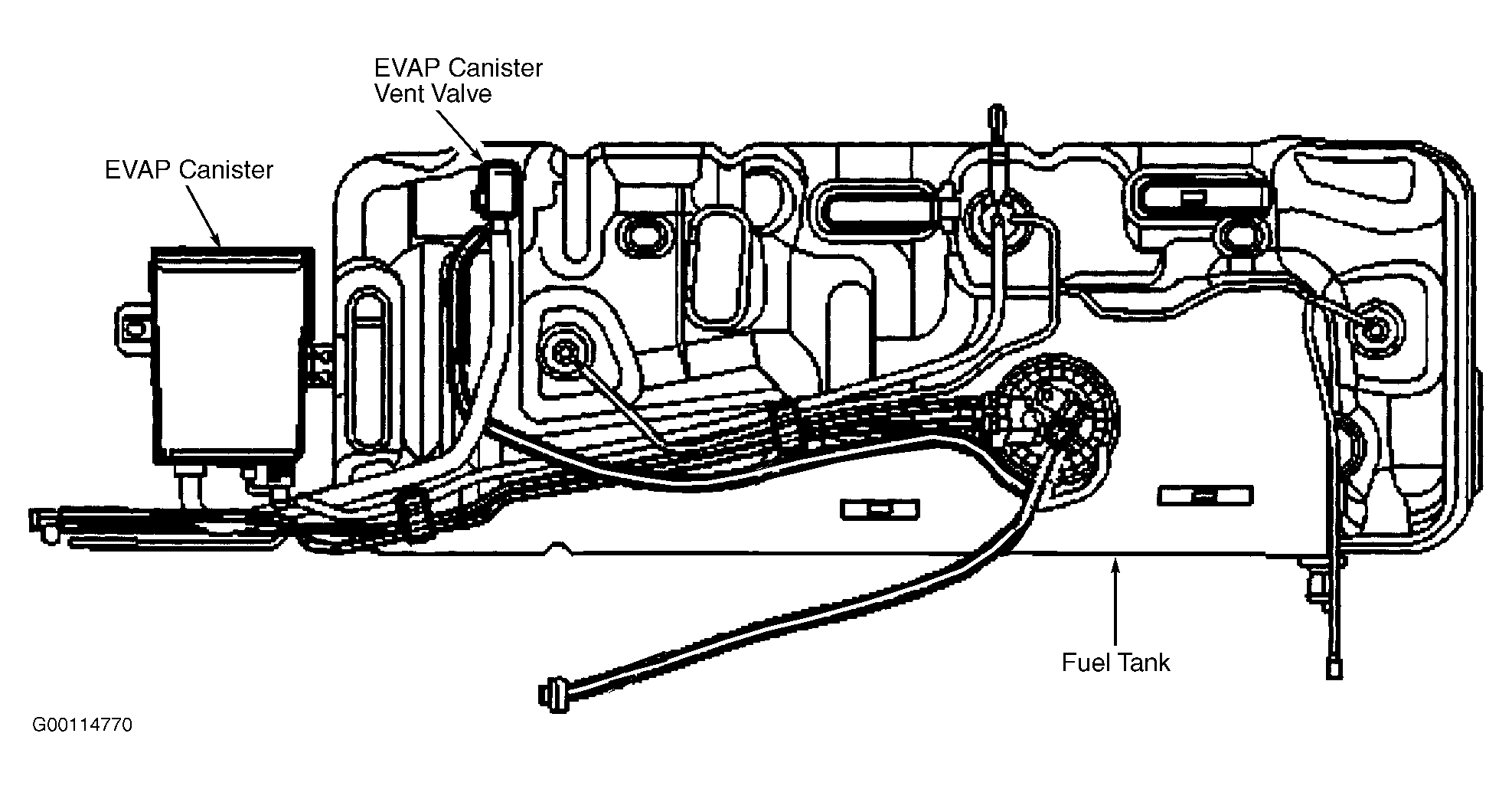

Fig 1: Locating EVAP Canister Vent Valve (Short Wheel Base)
G00114770Courtesy of GENERAL MOTORS CORP.
