Video System Schematics (Power, Ground, Video Disc Player and Rear Video/Audio HVAC Control Module)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

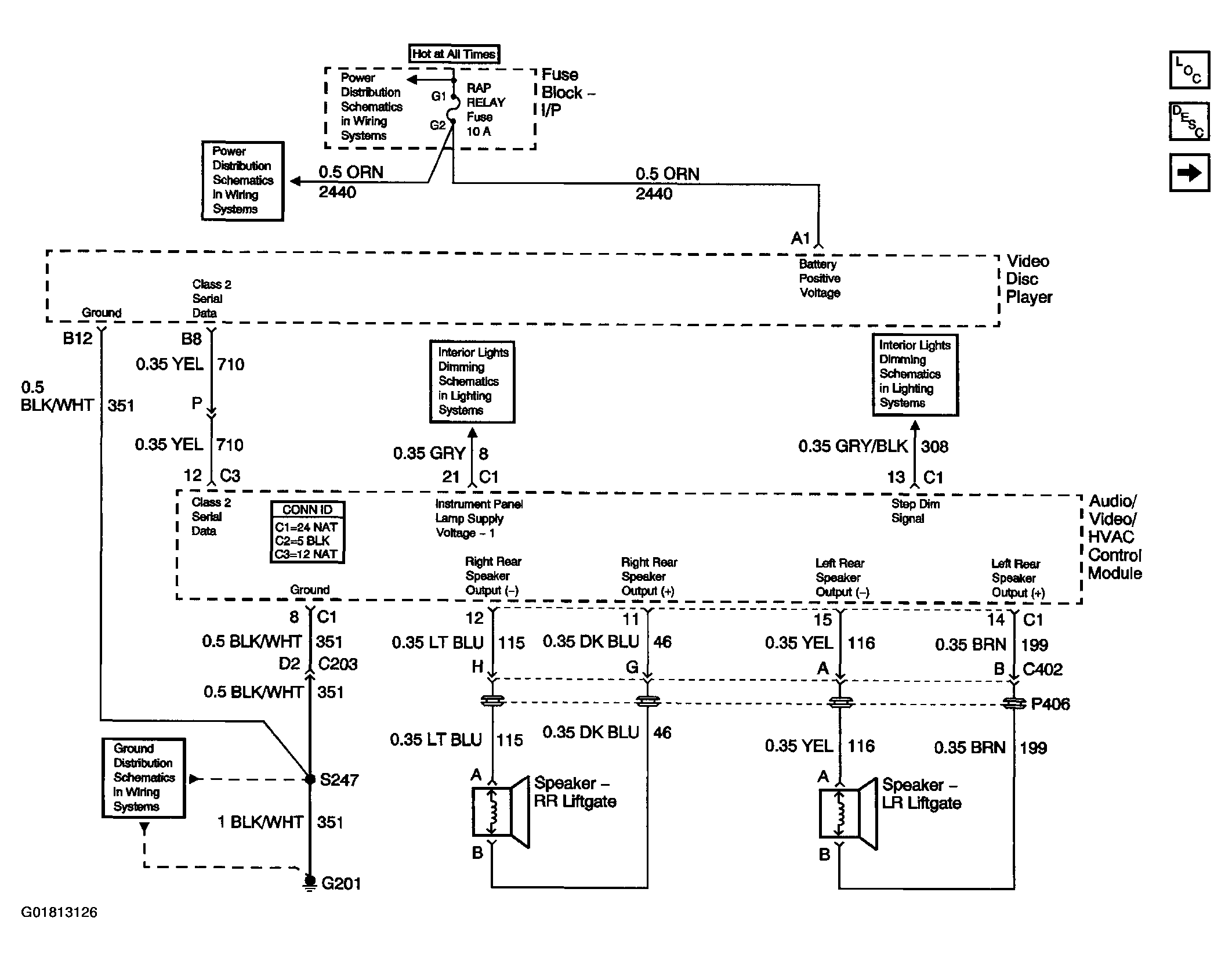

Fig 1: Video System Schematics (Power, Ground, Video Disc Player And Rear Video/Audio HVAC Control Module)

Courtesy of GENERAL MOTORS CORP.

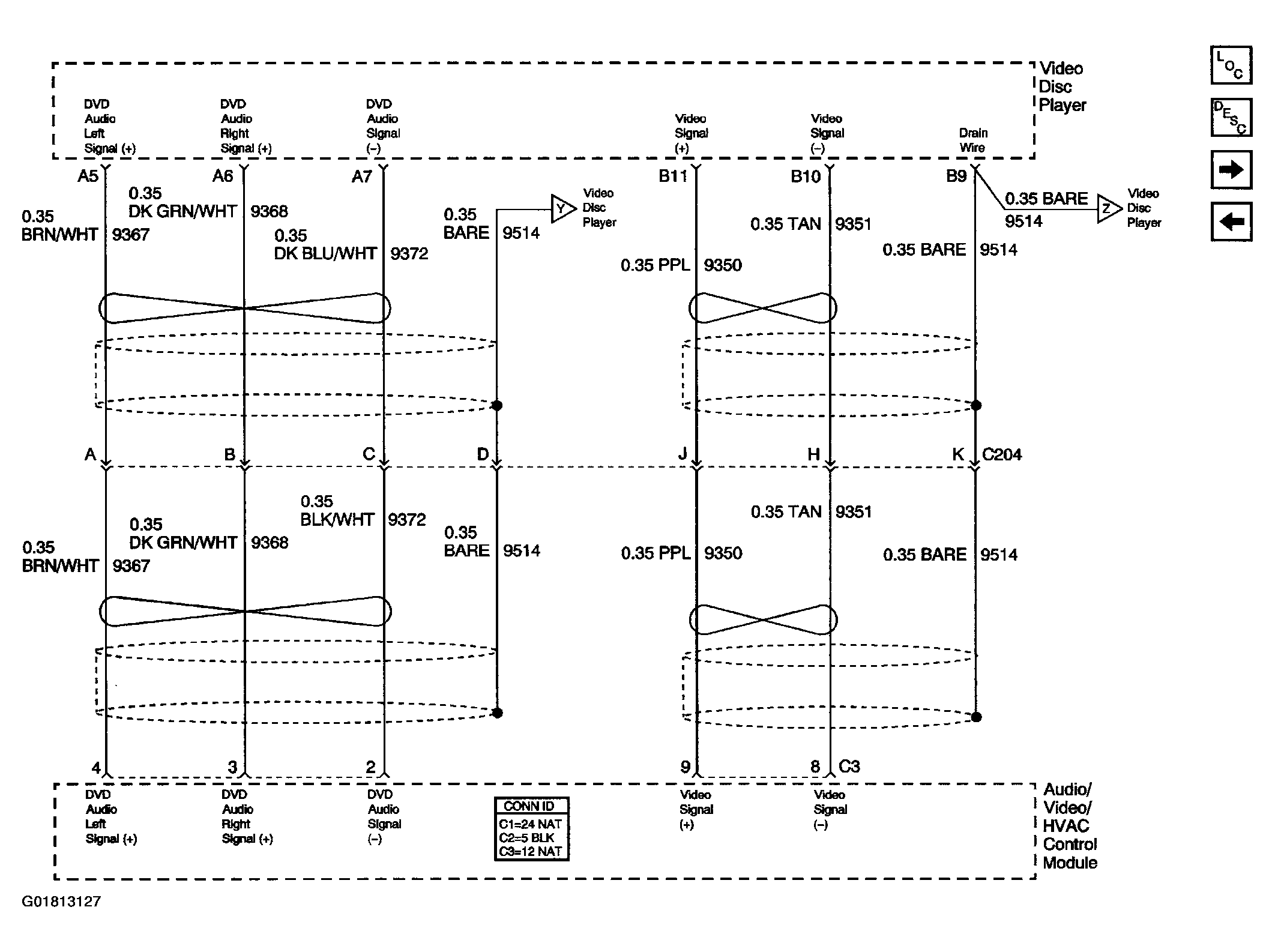

Fig 2: Video System Schematics (Video Disc Player And Rear Video/Audio/HVAC Module 1 of 2)

Courtesy of GENERAL MOTORS CORP.

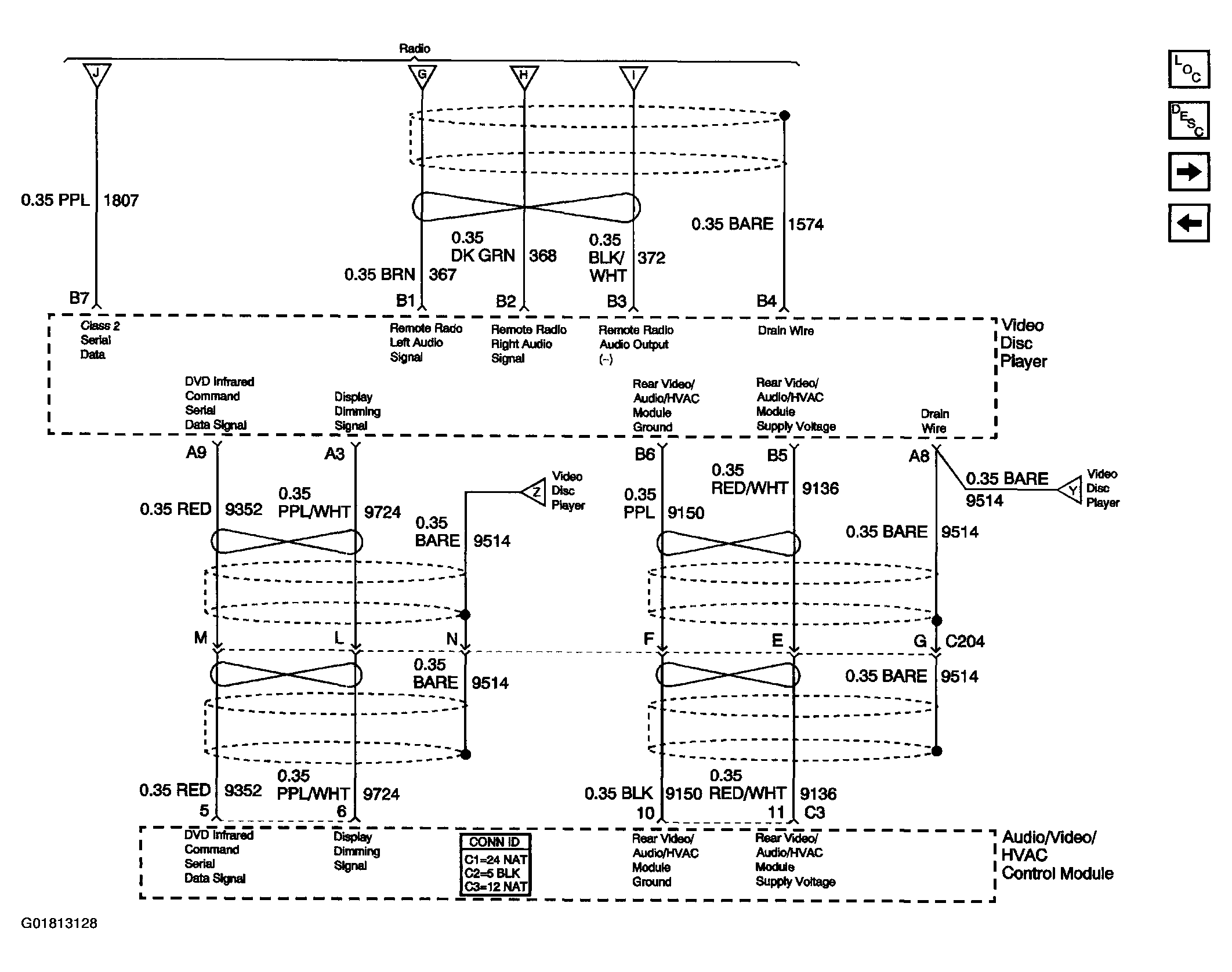

Fig 3: Video System Schematics (Video Disc Player And Rear Video/Audio HVAC Control Module 2 of 2)

Courtesy of GENERAL MOTORS CORP.

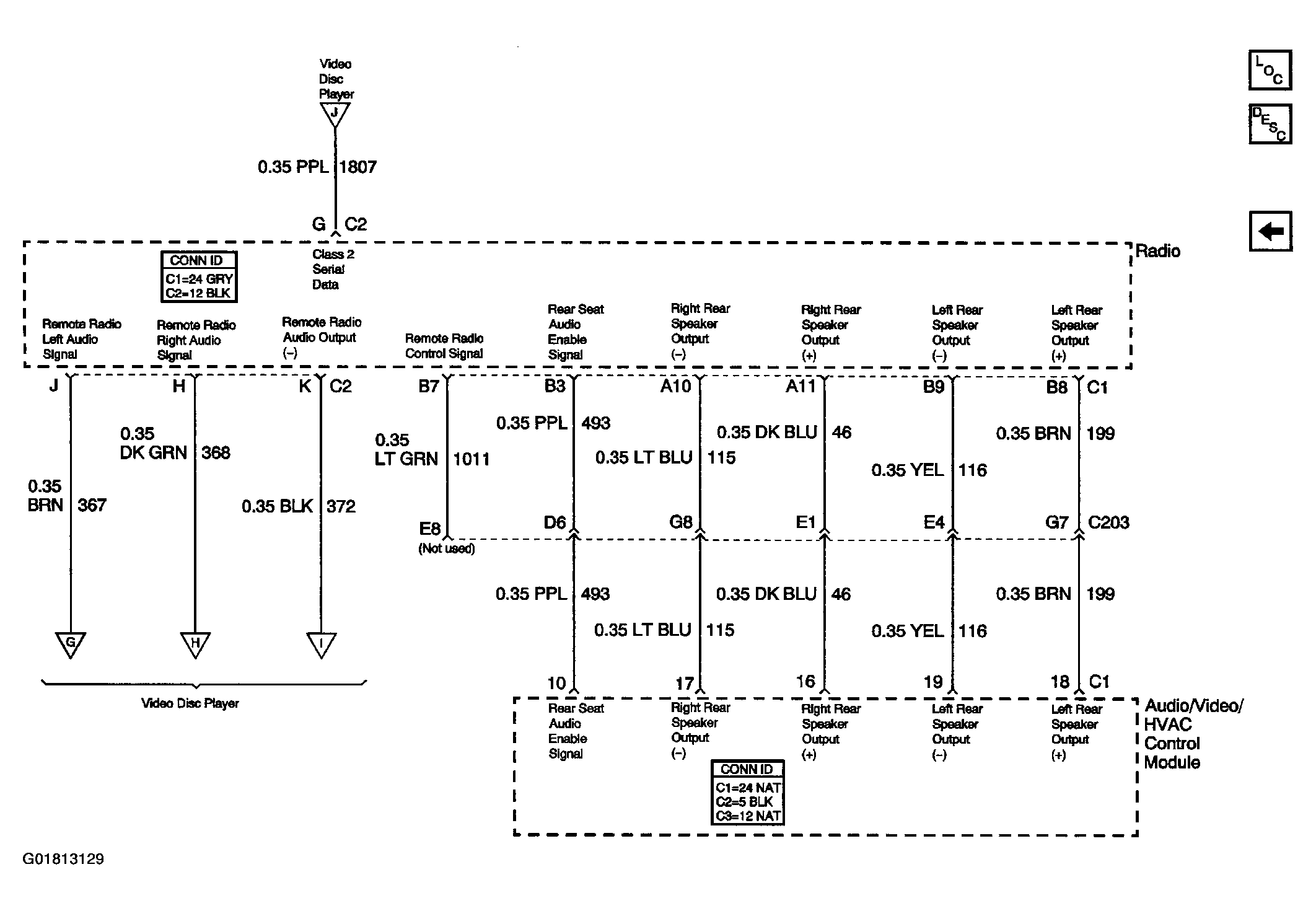

Fig 4: Video System Schematics (Radio And Liftgate Speakers)

Courtesy of GENERAL MOTORS CORP.
