Radio/Audio System Schematics (Power and Grounds)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

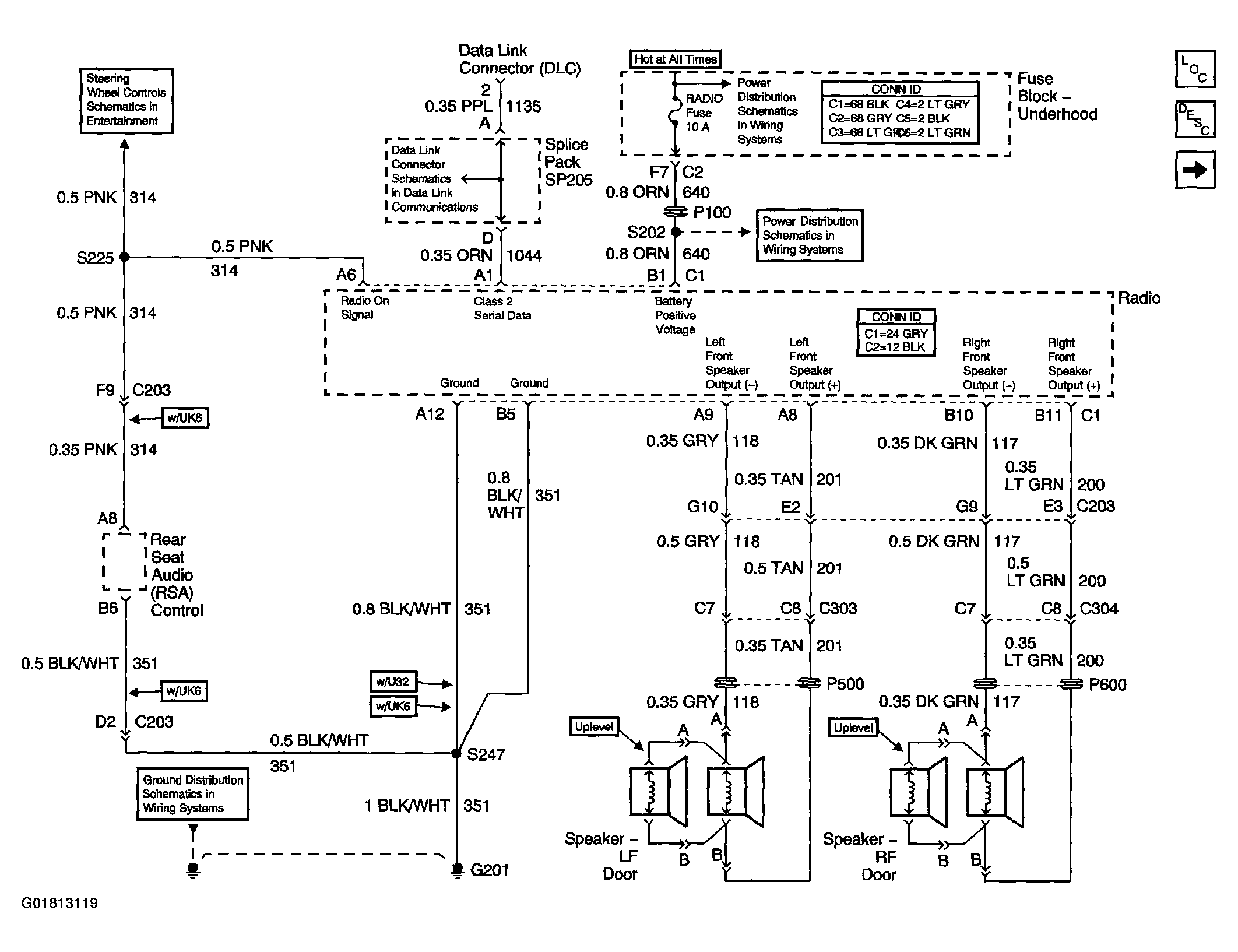

Fig 1: Radio/Audio System Schematics (Power And Grounds)

Courtesy of GENERAL MOTORS CORP.

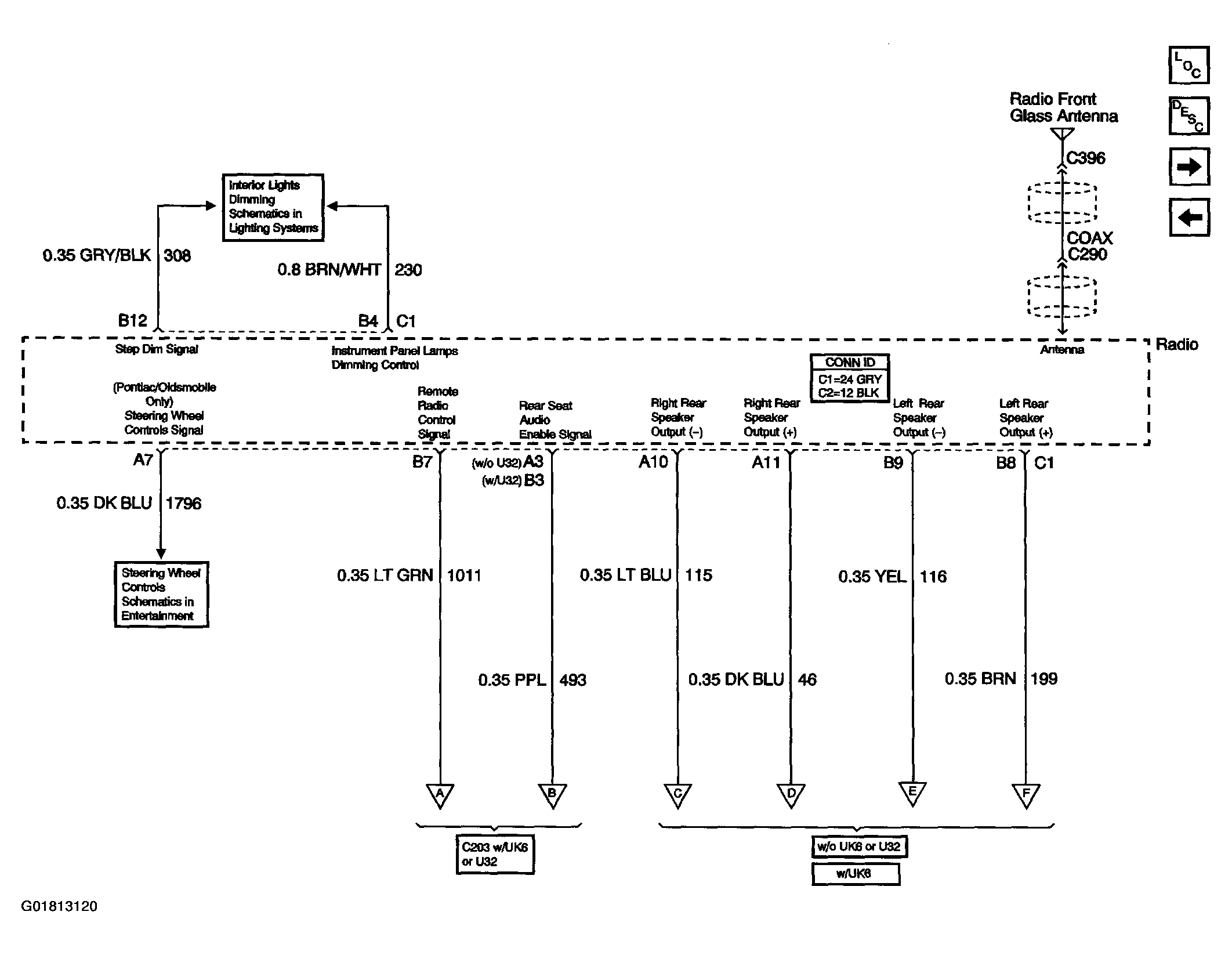

Fig 2: Radio/Audio System Schematics (Windshield Antenna)

Courtesy of GENERAL MOTORS CORP.

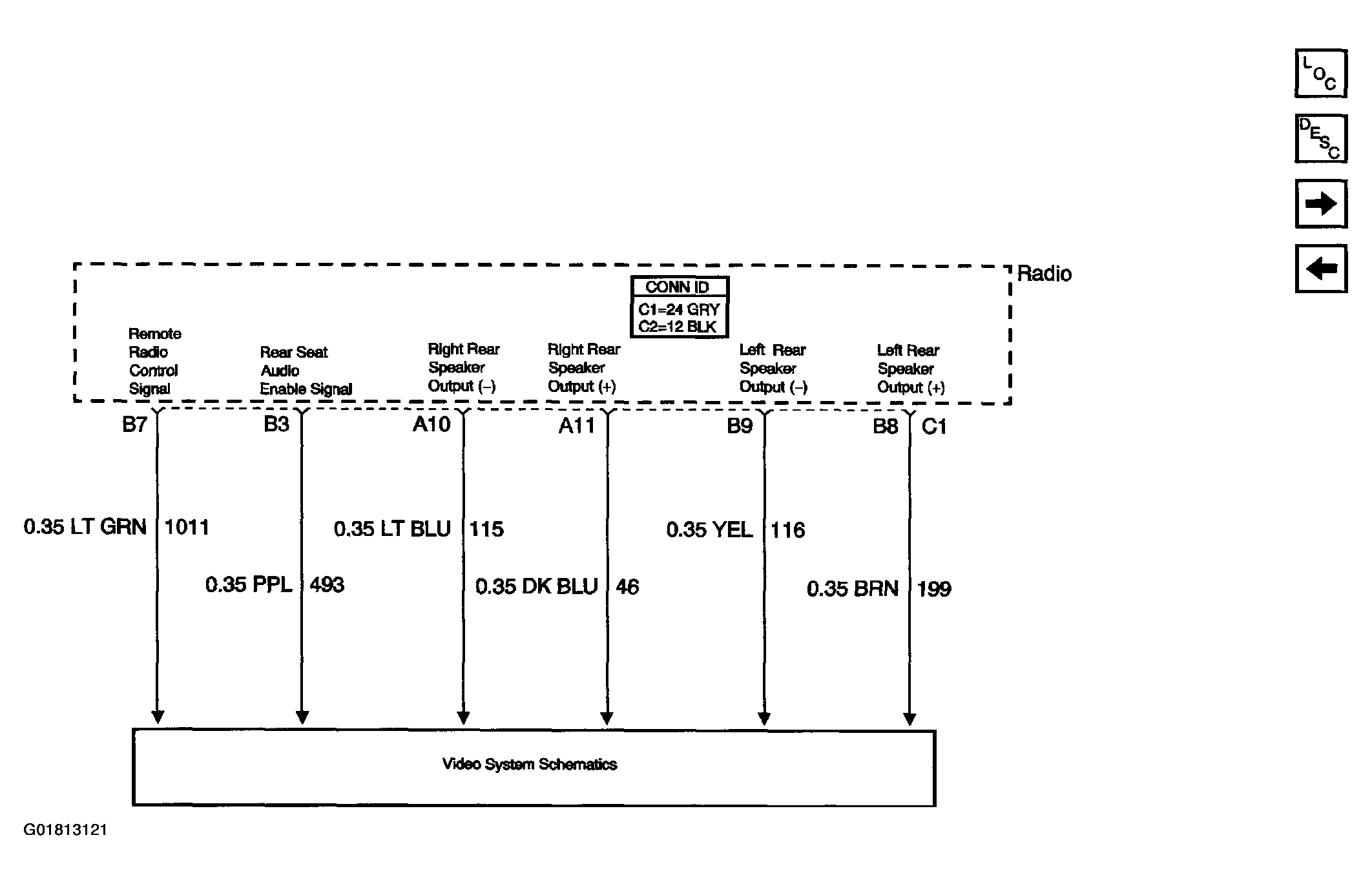

Fig 3: Radio/Audio System Schematics (Rear Seat Audio (RSA) Controls w/U32)

Courtesy of GENERAL MOTORS CORP.

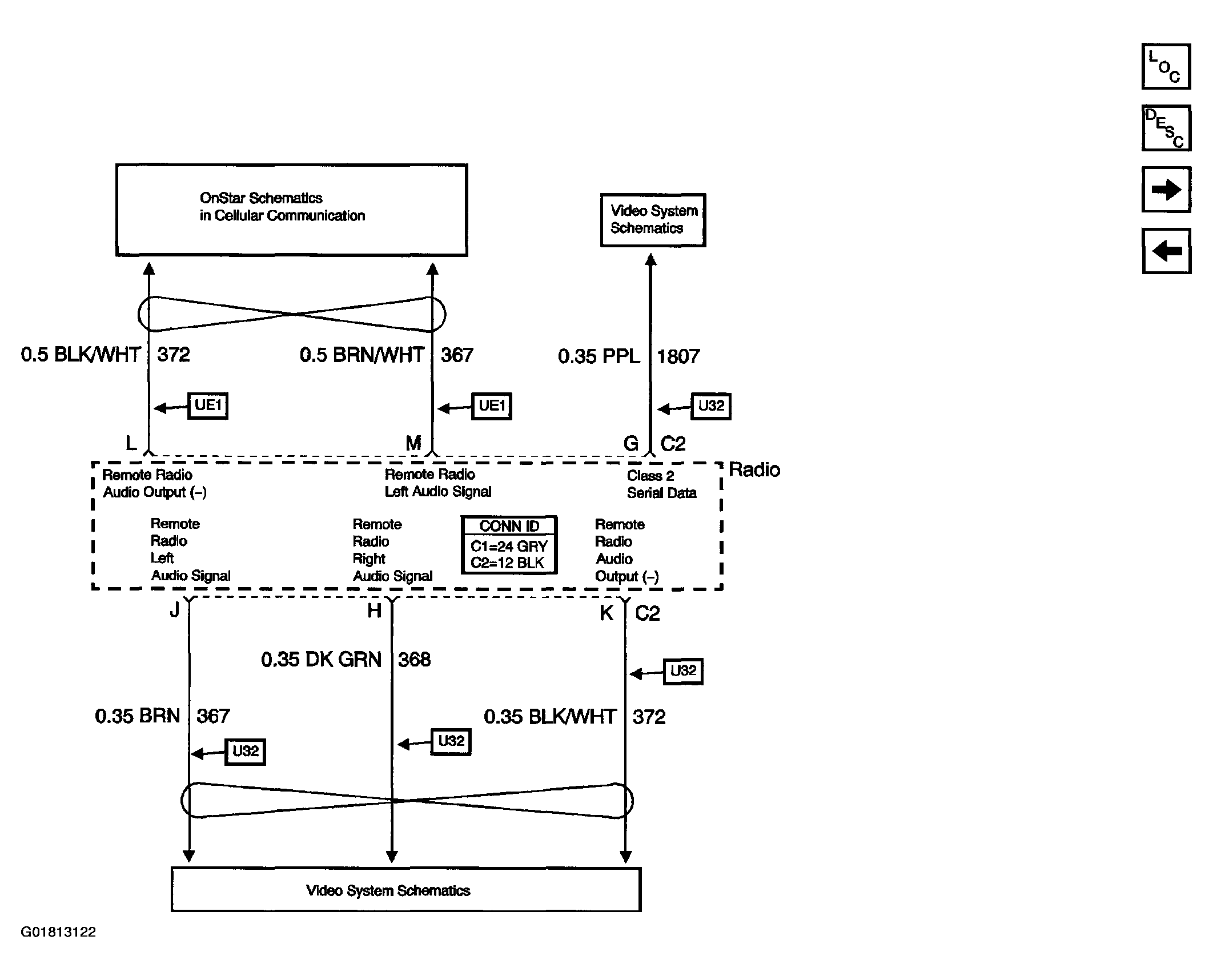

Fig 4: Radio/Audio System Schematics (Radio And Class 2 Serial Data)

Courtesy of GENERAL MOTORS CORP.

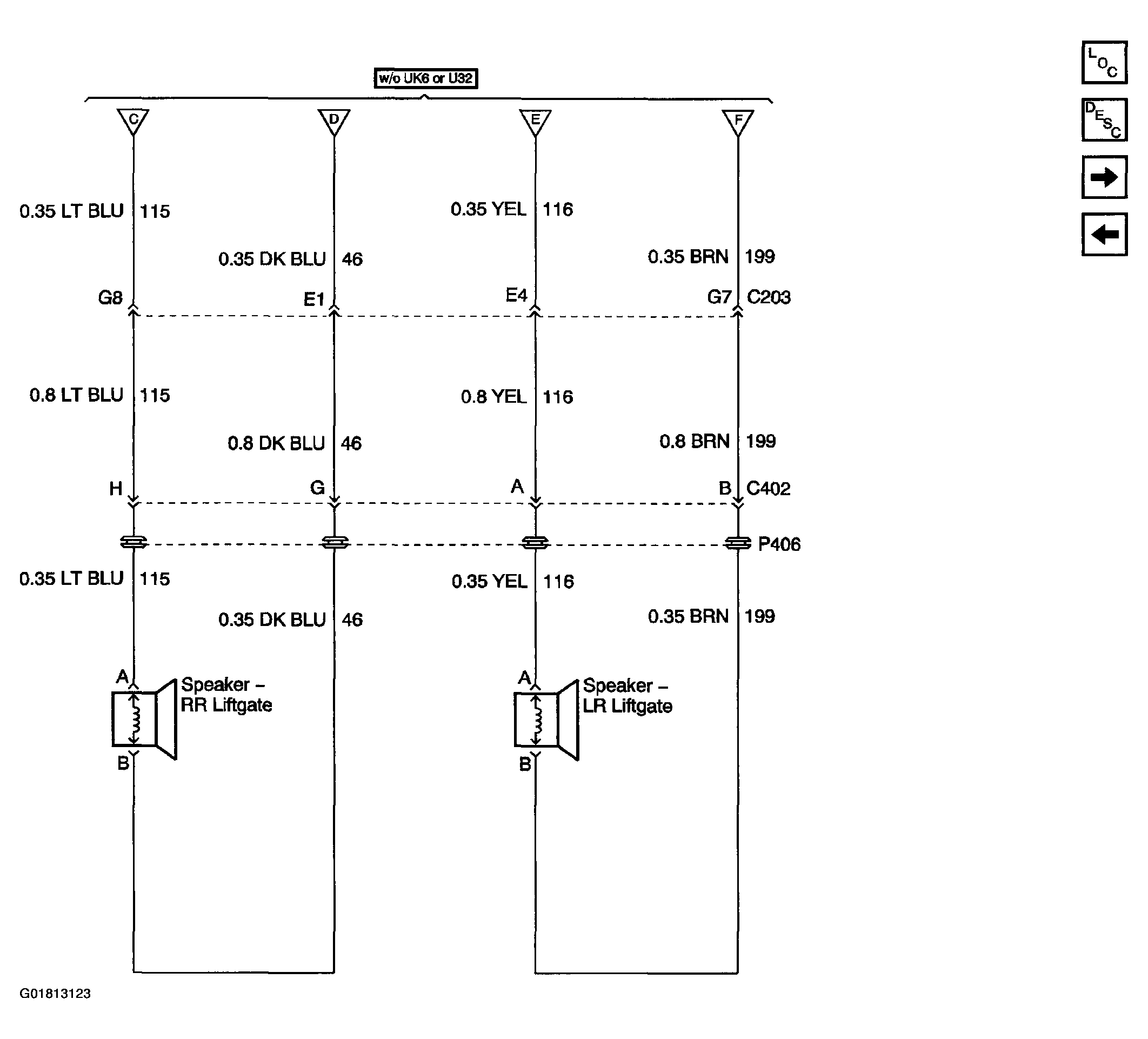

Fig 5: Radio/Audio System Schematics (Right And Left Radio Liftgate Speaker (Base))

Courtesy of GENERAL MOTORS CORP.

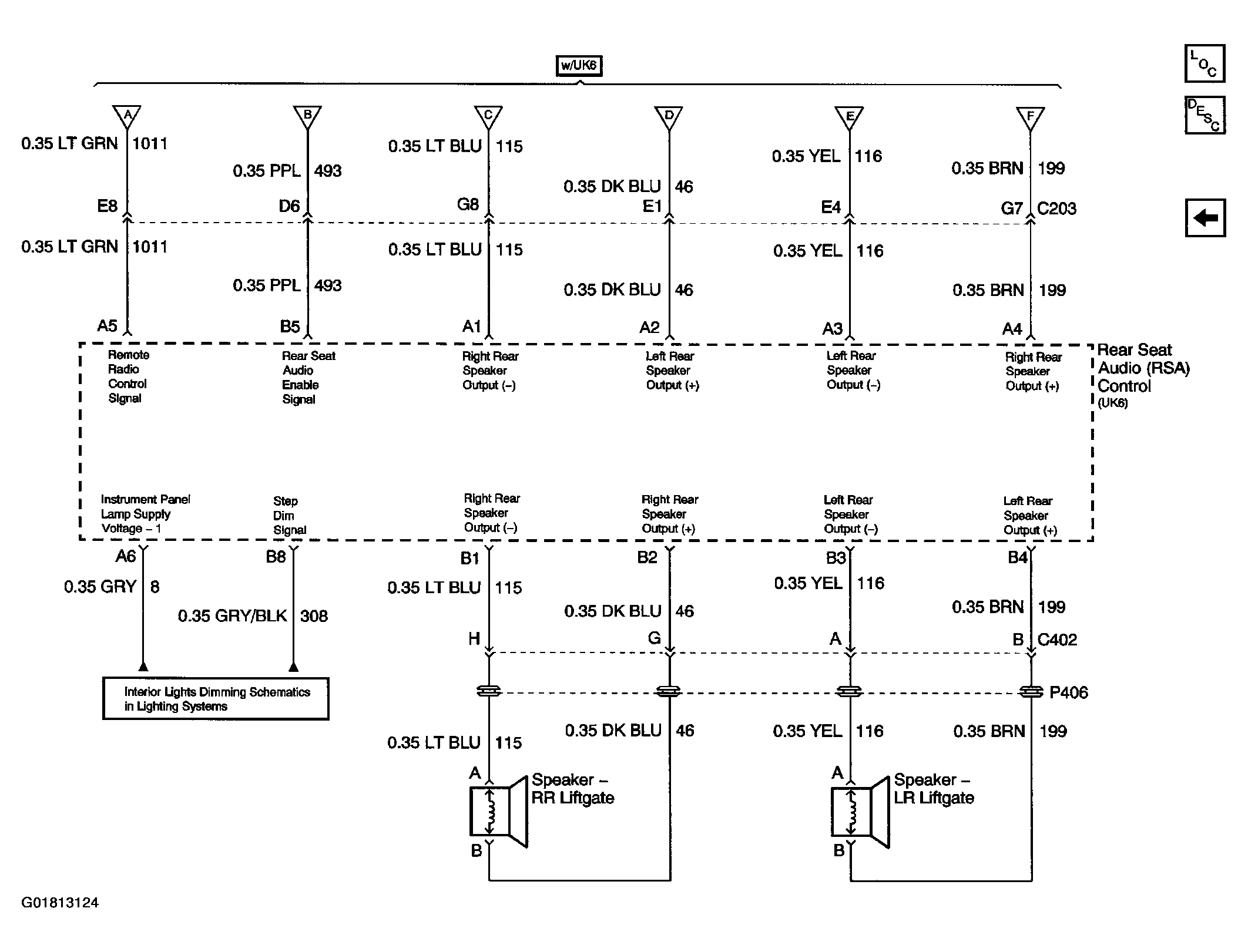

Fig 6: Radio/Audio System Schematics (Right And Left Radio Liftgate Speaker (Uplevel))

Courtesy of GENERAL MOTORS CORP.
