Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE .
  2. Remove the rear radio speaker (1):
    1. 2.1. Push on the top tab.
    2. 2.2. Pull the speaker (1) from the liftgate (2).
  3. Disconnect the electrical connector from the rear radio speaker.

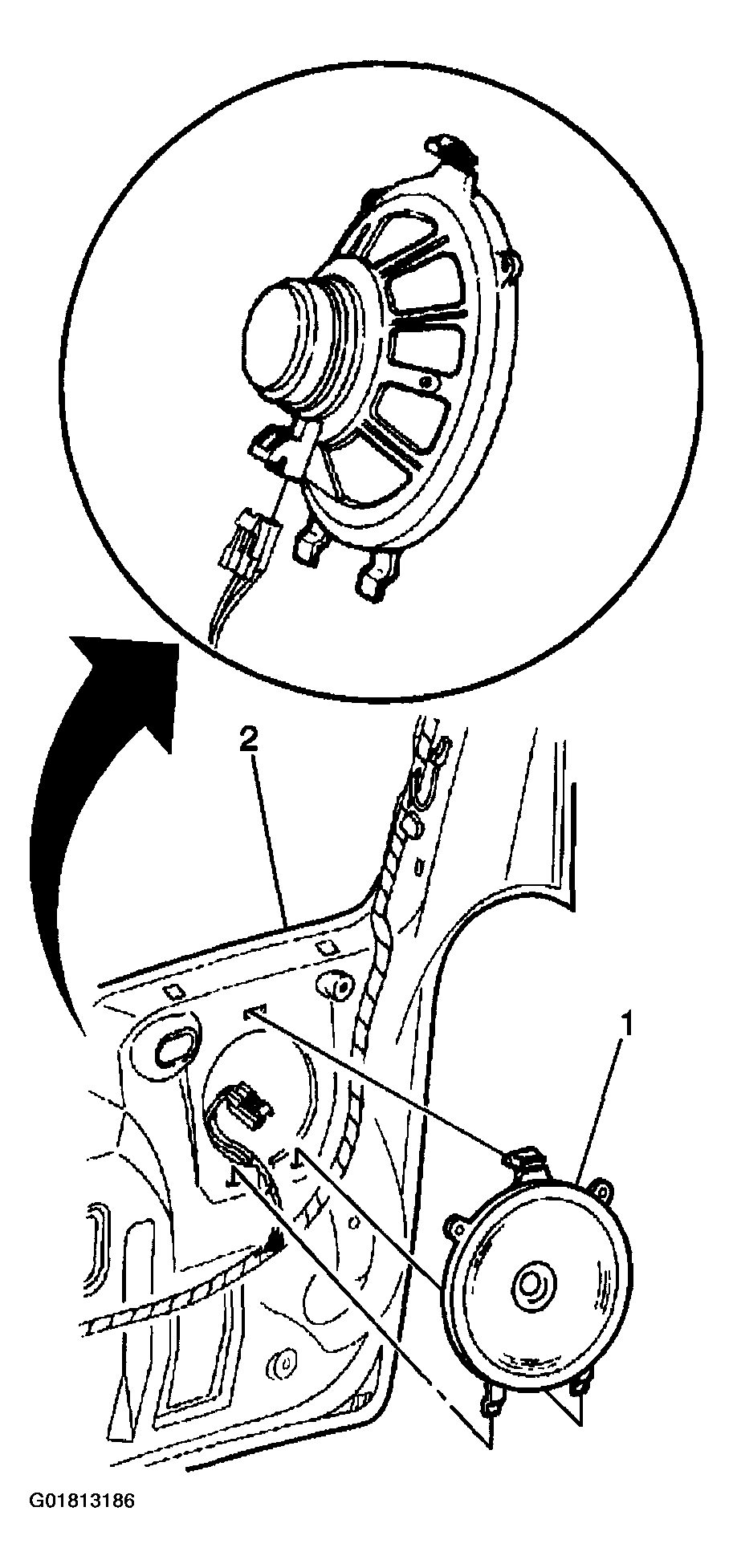

    Fig 1: Removing Rear Radio Speaker
    G01813186Courtesy of GENERAL MOTORS CORP.
