Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the rear radio speaker.
  2. Install the rear radio speaker (1):
    1. 2.1. Insert the tabs into the lower slots.
    2. 2.2. Push the upper tab into the slot on the liftgate (2).
  3. Install the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE .

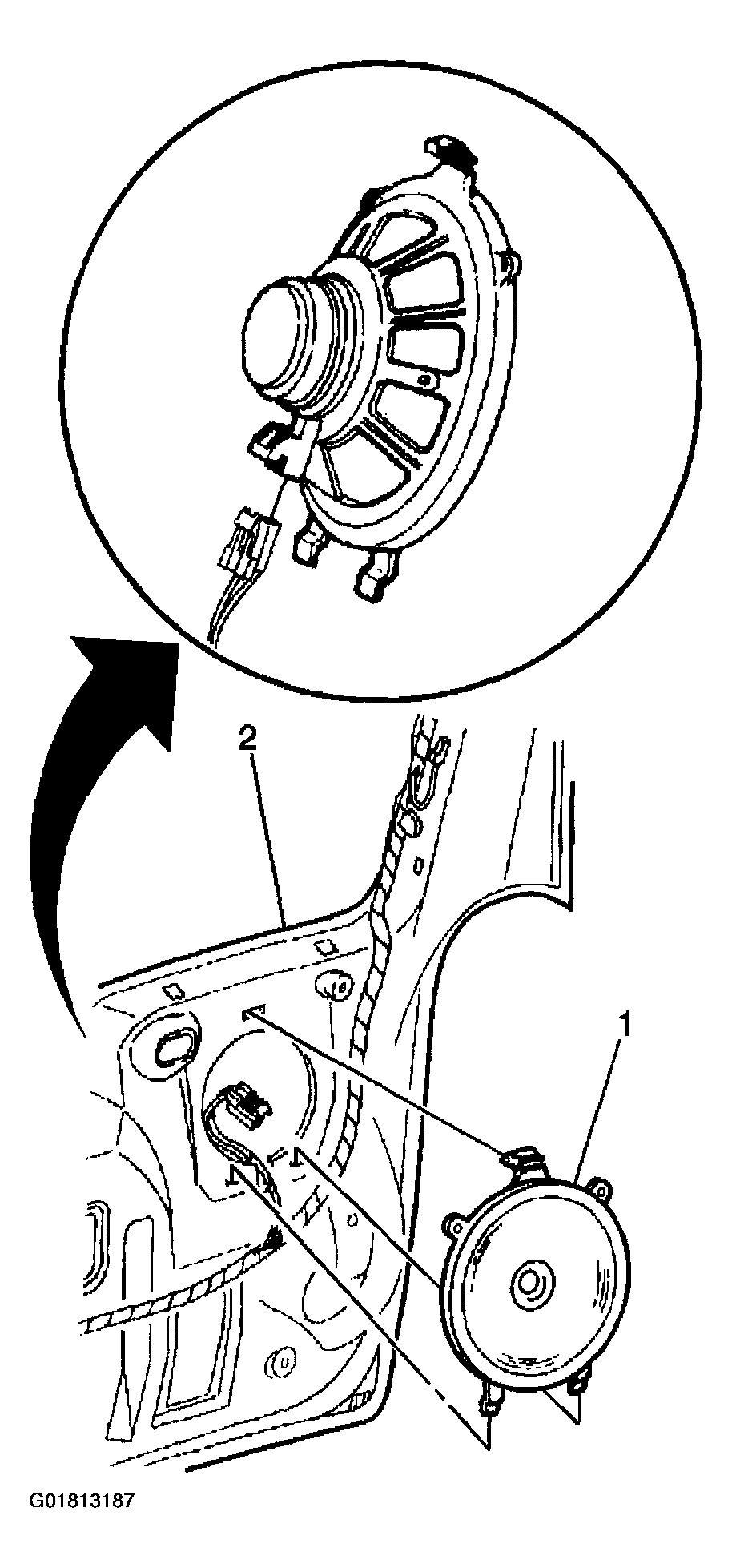

    Fig 1: Installing Rear Radio Speaker
    G01813187Courtesy of GENERAL MOTORS CORP.
