Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
  2. Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR .
  3. Disconnect the electrical connector.
  4. Unsnap the speaker from the lock module.

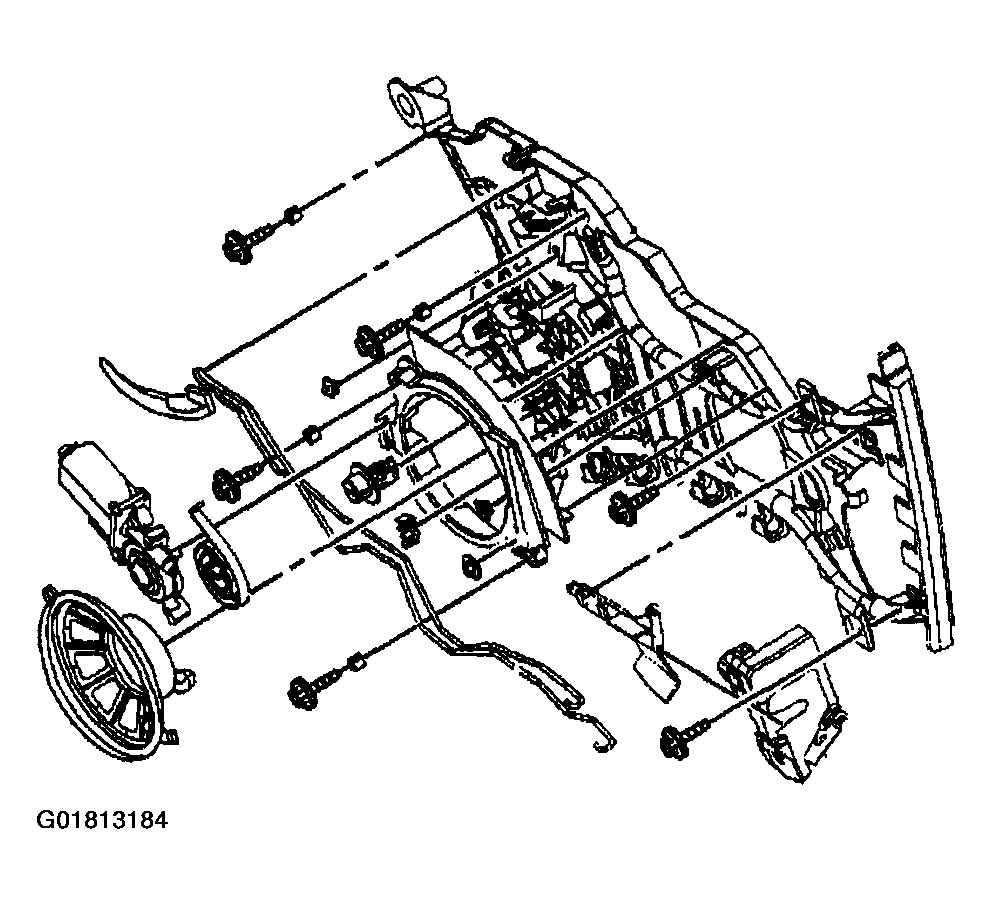

    Fig 1: Front Speaker & Bolts
    G01813184Courtesy of GENERAL MOTORS CORP.
