Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bezel from the floor console. Refer to POWER ACCESSORY PORT REPLACE - FRONT FLOOR CO

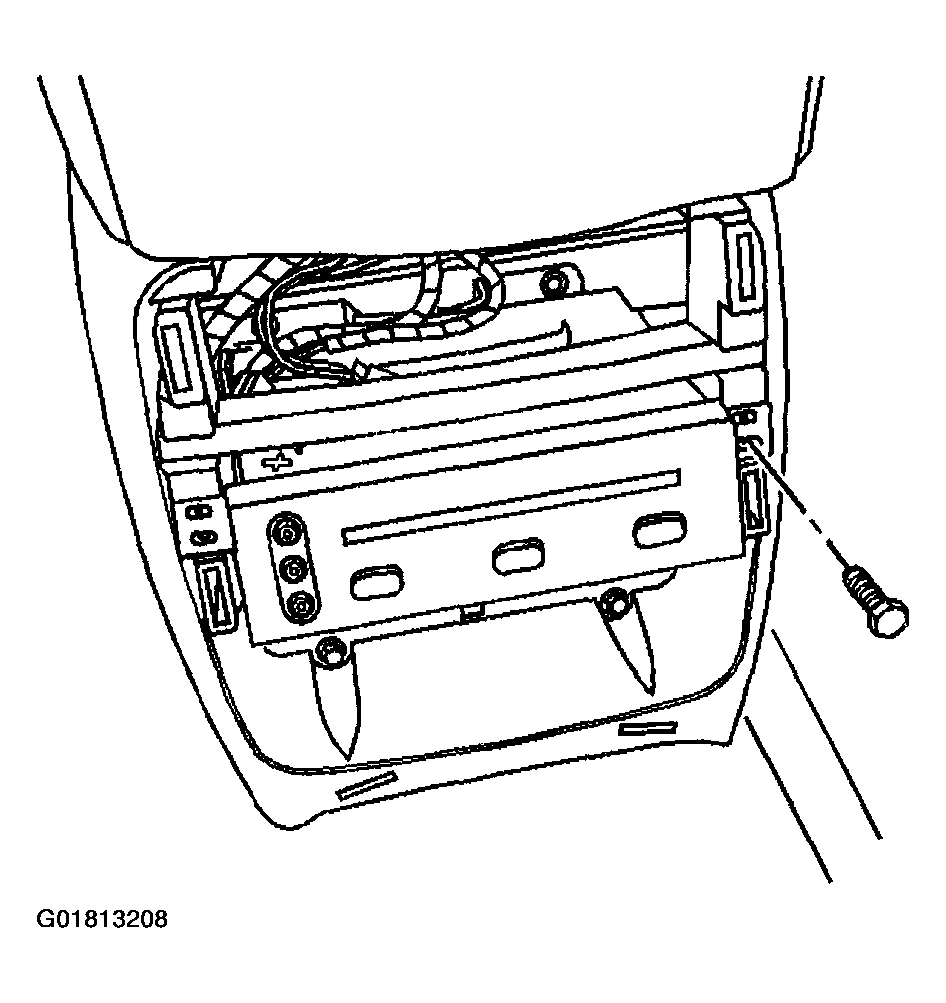

Fig 1: Removing Mounting Screws From DVD Player
Courtesy of GENERAL MOTORS CORP.
Remove the mounting screws from the DVD Player.
Slide the DVD player forward, and disconnect the electrical connectors from the DVD player.

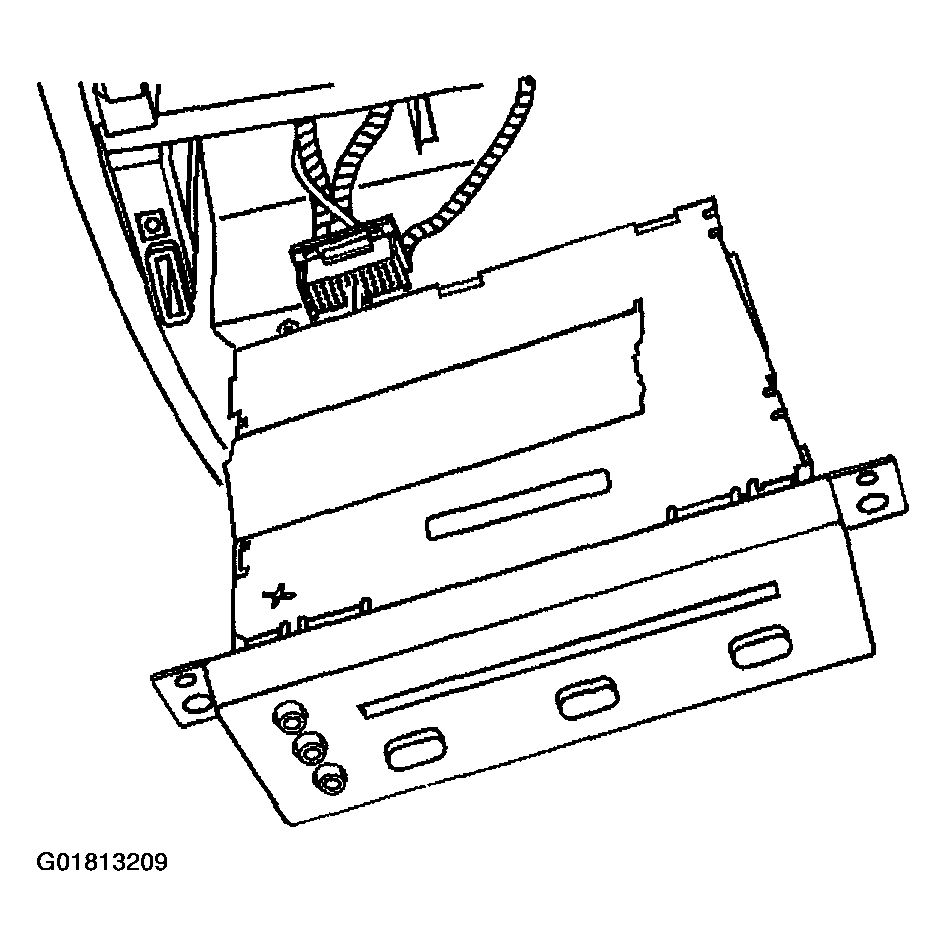

Fig 2: Disconnecting Electrical Connectors From DVD Player

Courtesy of GENERAL MOTORS CORP.
