Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a small, flat-bladed tool in order to press on the locking tabs and release the rear seat audio controls from the rear overhead console.
  2. Disconnect the electrical connectors.
  3. Remove the rear seat audio controls from the rear overhead console.

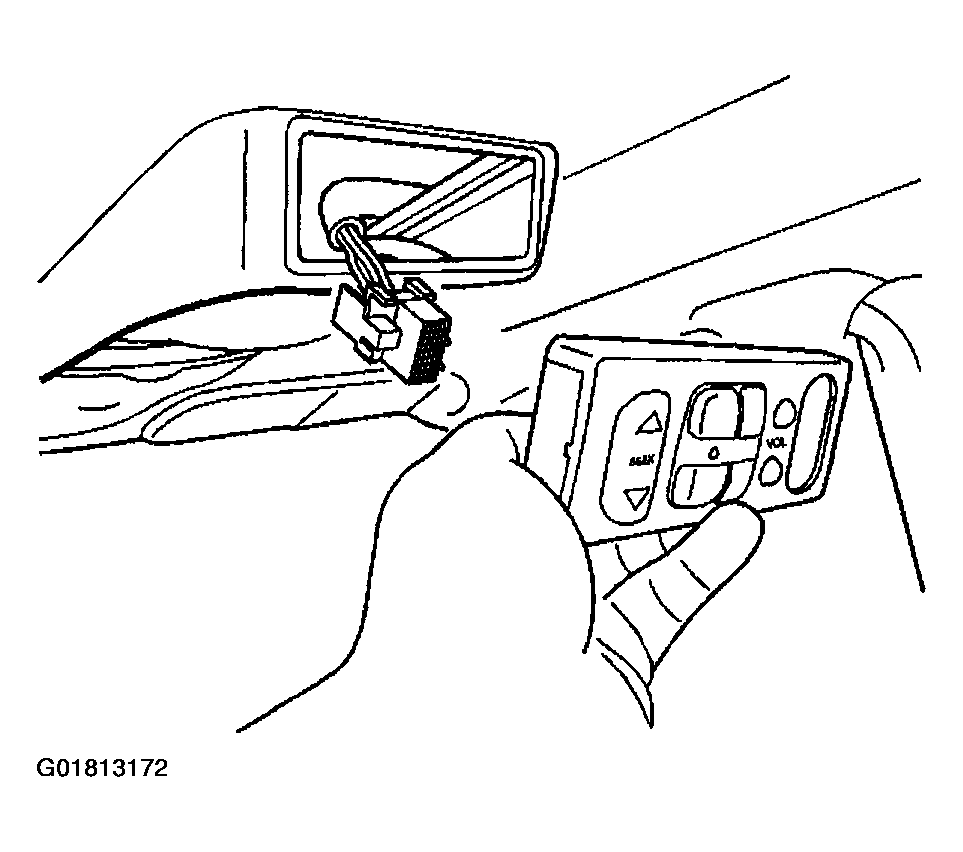

    Fig 1: Removing Rear Seat Audio Controls
    G01813172Courtesy of GENERAL MOTORS CORP.
