Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the rear seat audio controls.
  2. Align the rear seat audio controls to the rear overhead console.
  3. Press the rear seat audio controls into the rear overhead console until fully seated and locked in.

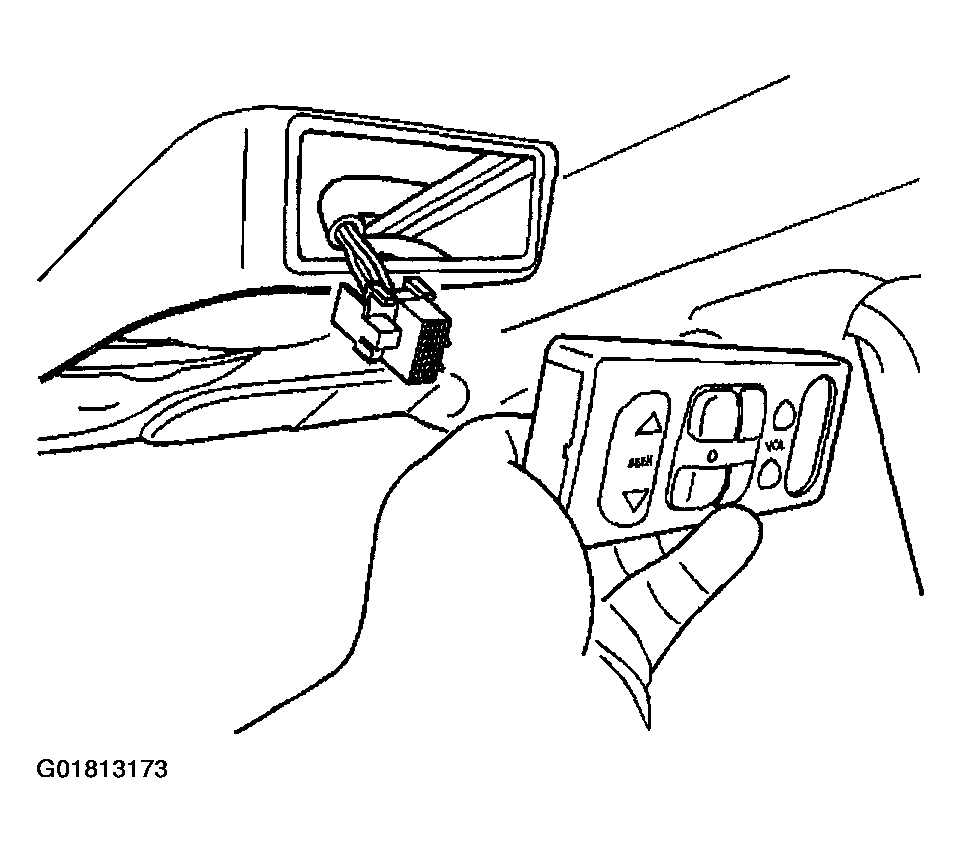

    Fig 1: Installing Rear Seat Audio Controls
    G01813173Courtesy of GENERAL MOTORS CORP.
