Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel assembly trim plate. Refer to TRIM PLATE REPLACEMENT - IP ACCESSORY .
  2. Disconnect the extension cable from the radio.
  3. Disconnect the extension cable from the antenna.

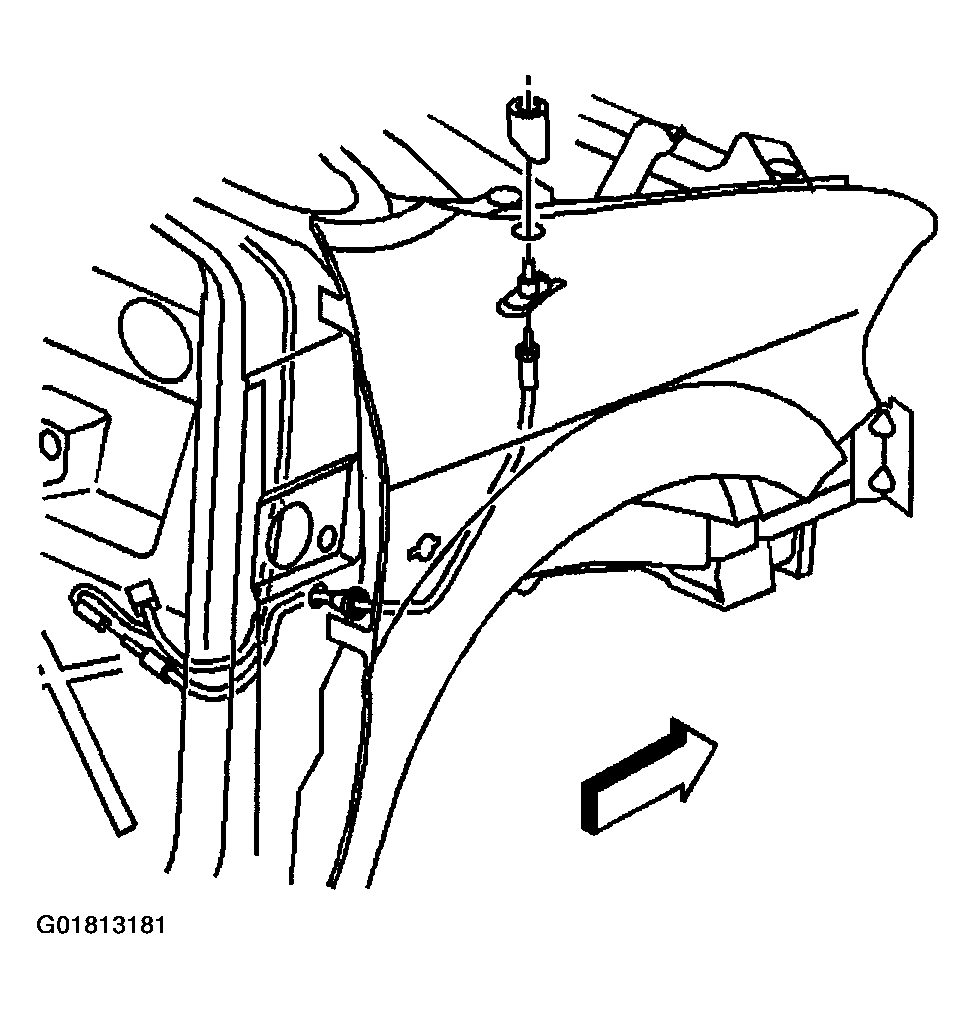

Fig 1: Disconnecting Extension Cable From Antenna
G01813181Courtesy of GENERAL MOTORS CORP.
