Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the extension cable to the antenna.
  2. Connect the extension cable to the radio.
    Fig 1: Connecting Extension Cable To Antenna

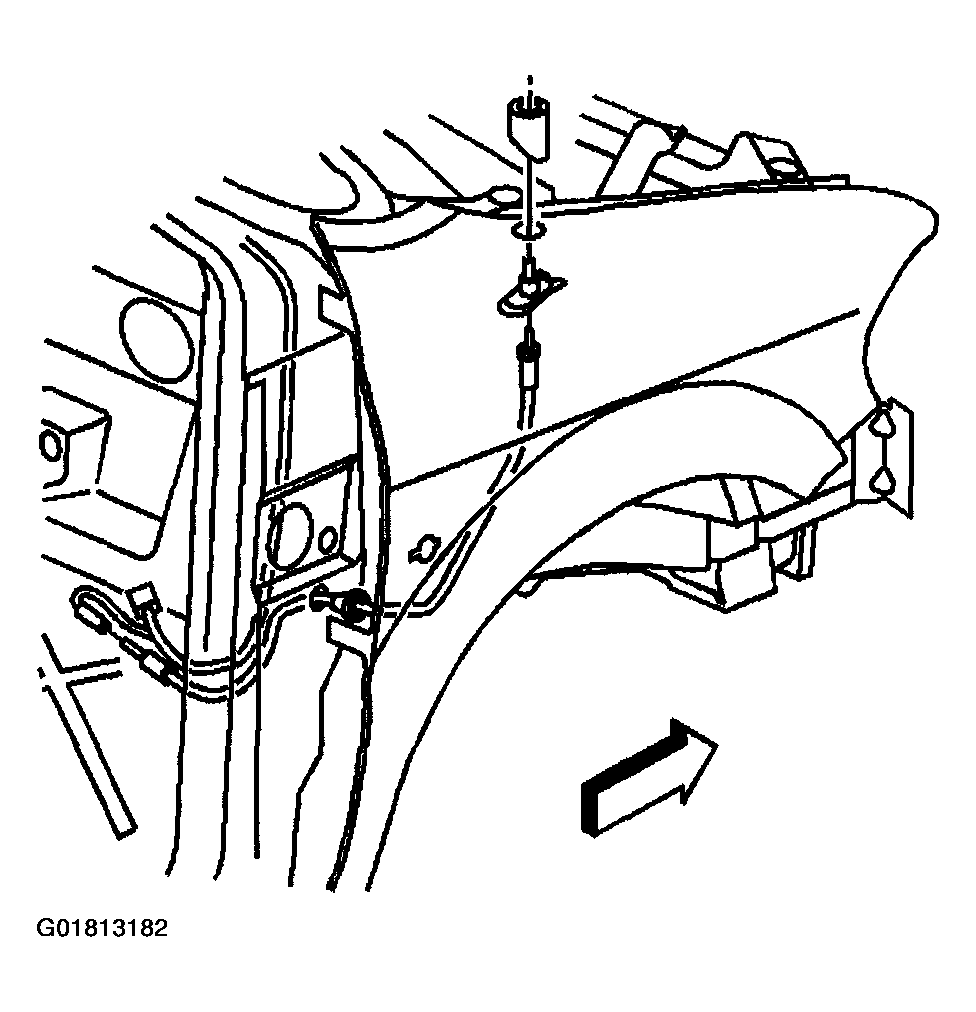

    G01813182Courtesy of GENERAL MOTORS CORP.
  3. Install the instrument panel assembly trim plate. Refer to TRIM PLATE REPLACEMENT - IP ACCESSORY .
    Fig 2: Instrument Panel Assembly Trim Plate

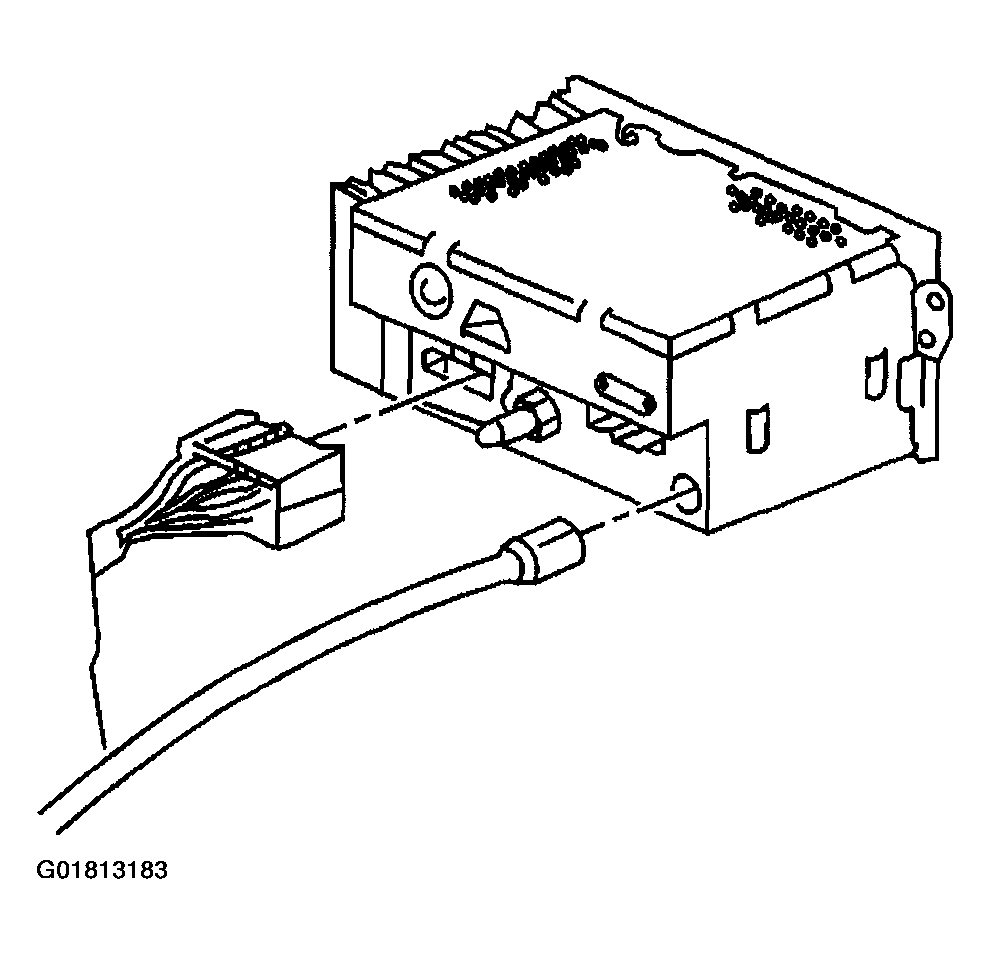

    G01813183Courtesy of GENERAL MOTORS CORP.
