Test Description

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The number(s) below refer to the step number(s) on the diagnostic table.

  1. 2. Clear all DTCs and cycle the ignition to check that the DTC did not falsely set.
  2. 3. Clear all DTCs after the repair procedure is complete.

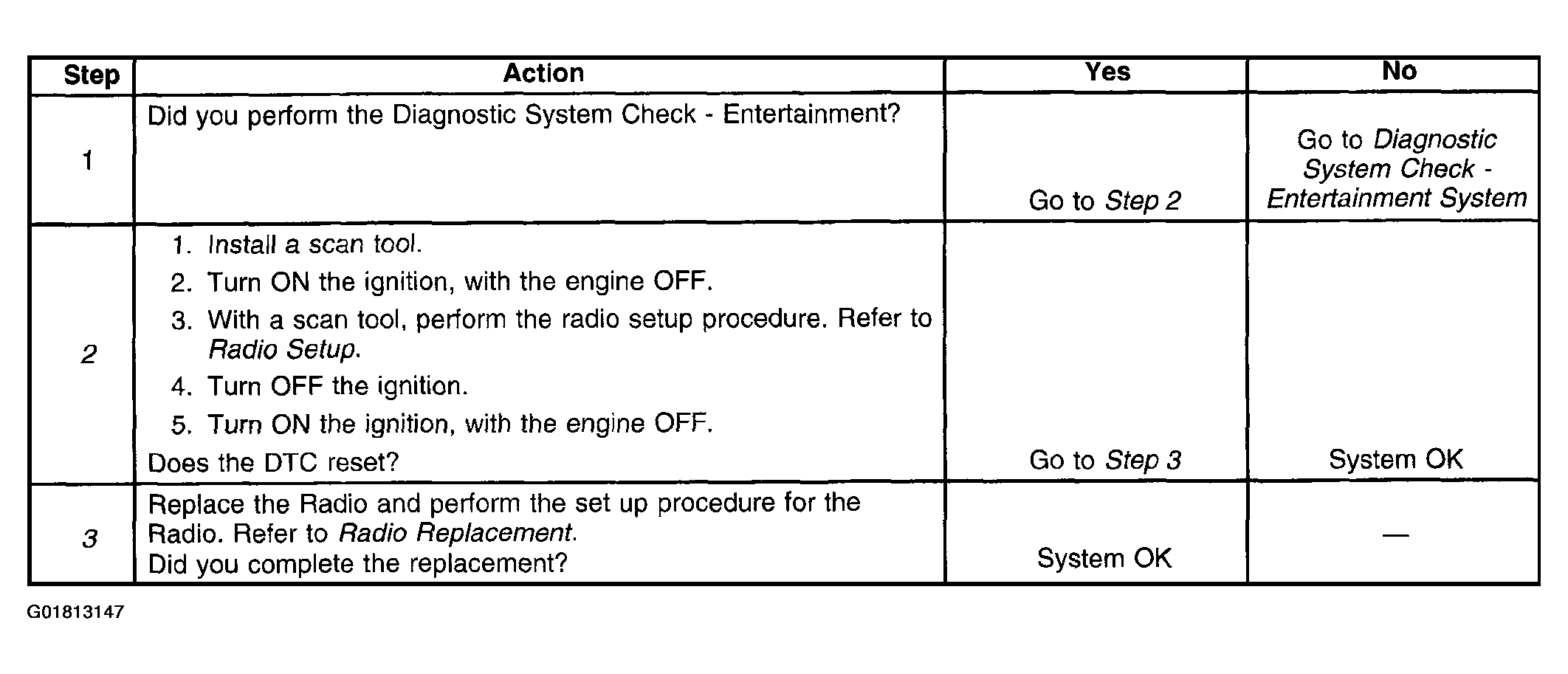

Fig 1: DTC B1001
G01813147Courtesy of GENERAL MOTORS CORP.
