Radio/Audio System Description and Operation: Notes
WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
The Entertainment System on this vehicle is configured with either a base or an uplevel system. Both the base and uplevel systems contain a radio, antenna, speakers, and on some vehicle lines an audio amplifier and/or rear seat audio (RSA).
The uplevel system differs from the base level system by providing the customer with enhanced audio system features. Some of those features may include the radio data system (RDS), extended range speakers, an audio amplifier (or an uplevel amplifier), rear seat audio (RSA), and video entertainment system.

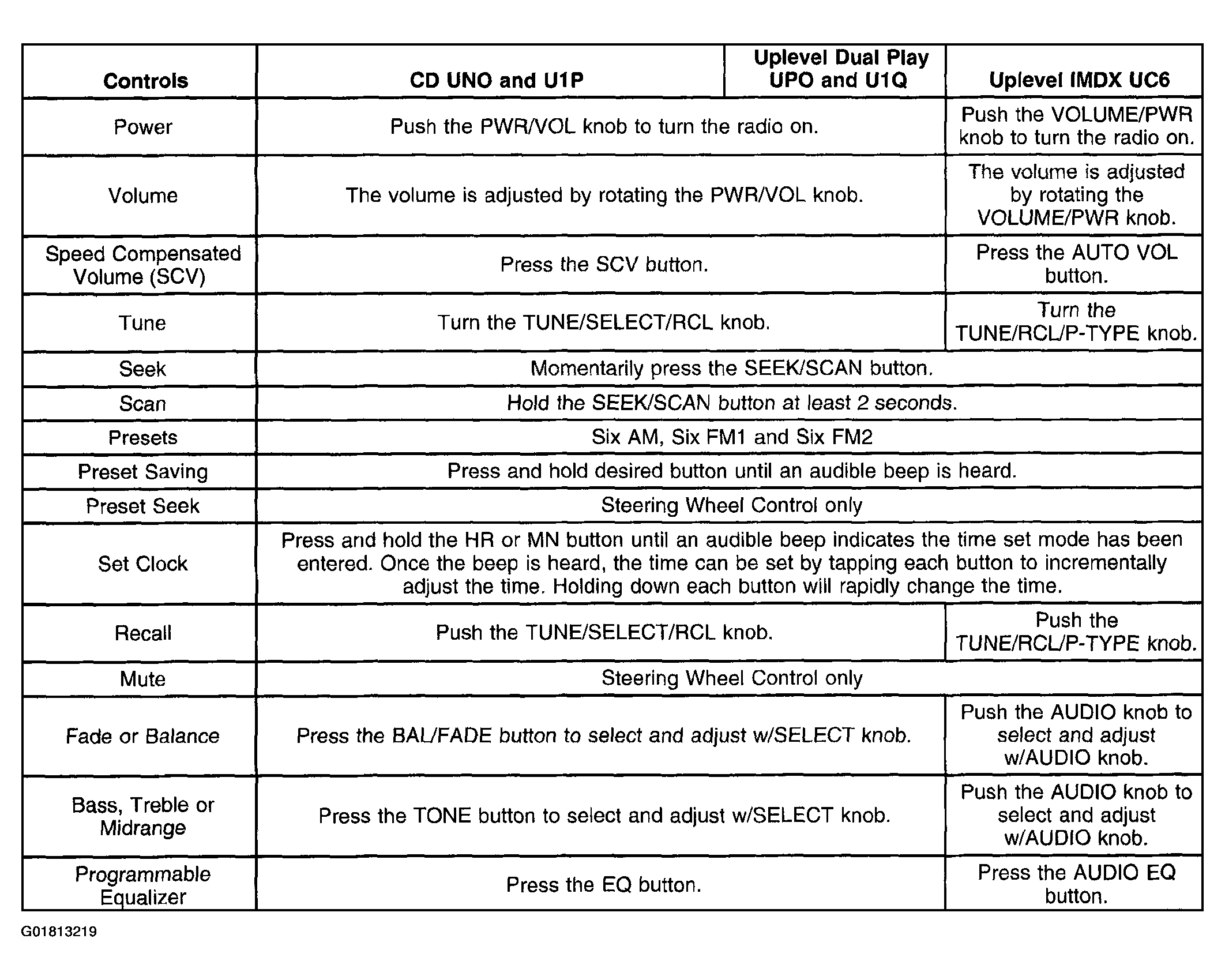

The following list shows the radios available for this vehicle:
- Radio (UNO) - AM/FM Stereo RDS and CD
- Uplevel Radio (UPO) - AM/FM Stereo, Cassette with CD and RDS
- Uplevel Radio (U1P) - AM/FM Stereo, CD with Equalizer and RDS
- Uplevel Radio (U1Q) - AM/FM Stereo, Cassette, CD with Equalizer and RDS
- Uplevel Radio (UC6) - AM/FM, Integral Multi Disc CD Changer (IMCX) and RDS
Each item in the list below represents topics covered in detail below.
- AM/FM Reception
- Antenna
- Theft Deterrent

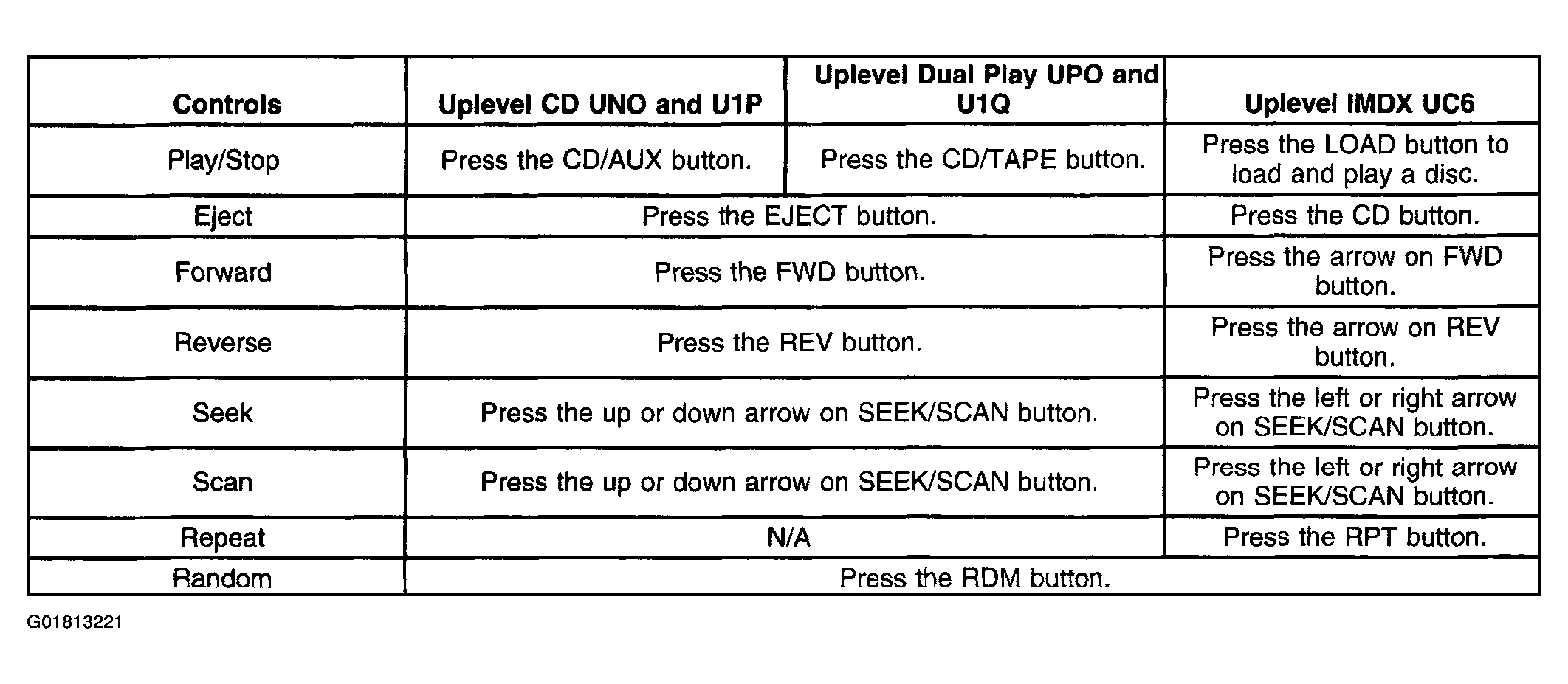

- Integral Multi Disc CD Changer (IMDX)
- Remote Playback Device
- Rear Seat Audio (RSA)
- Radio Data System (RDS)
- Steering Wheel Controls

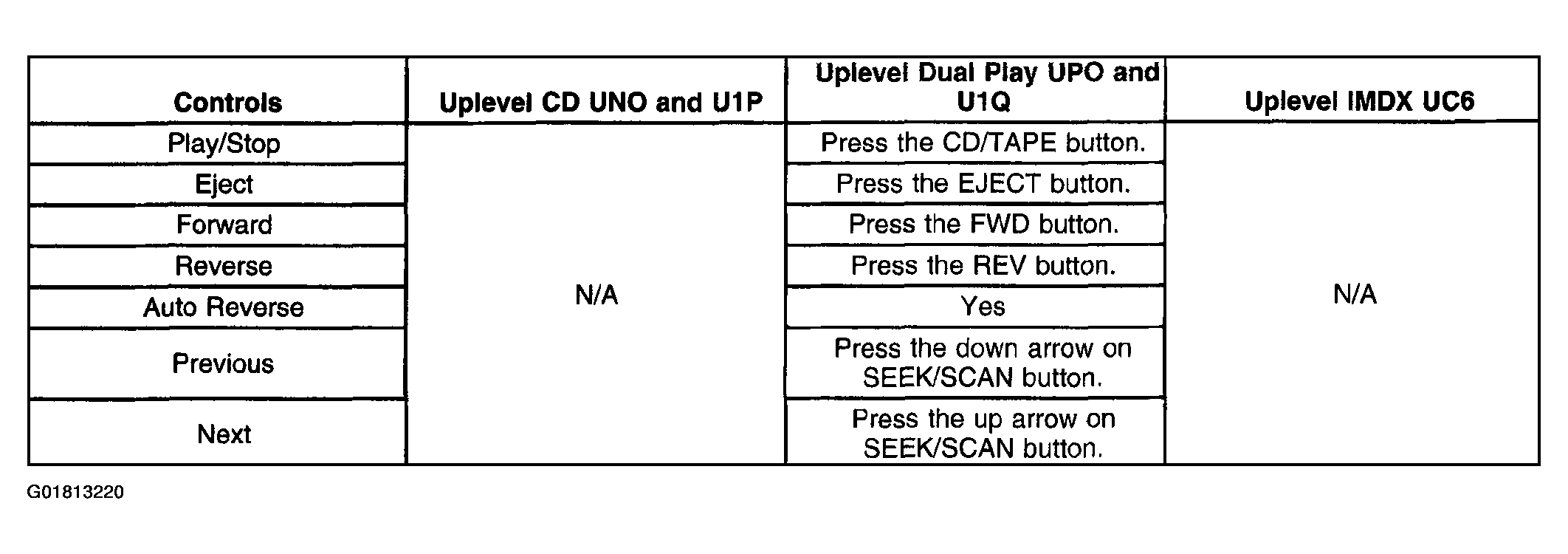

- Tape/CD Player Error Messages
