Wiper/Washer Schematics (Wiper/Washer System (Pulse)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

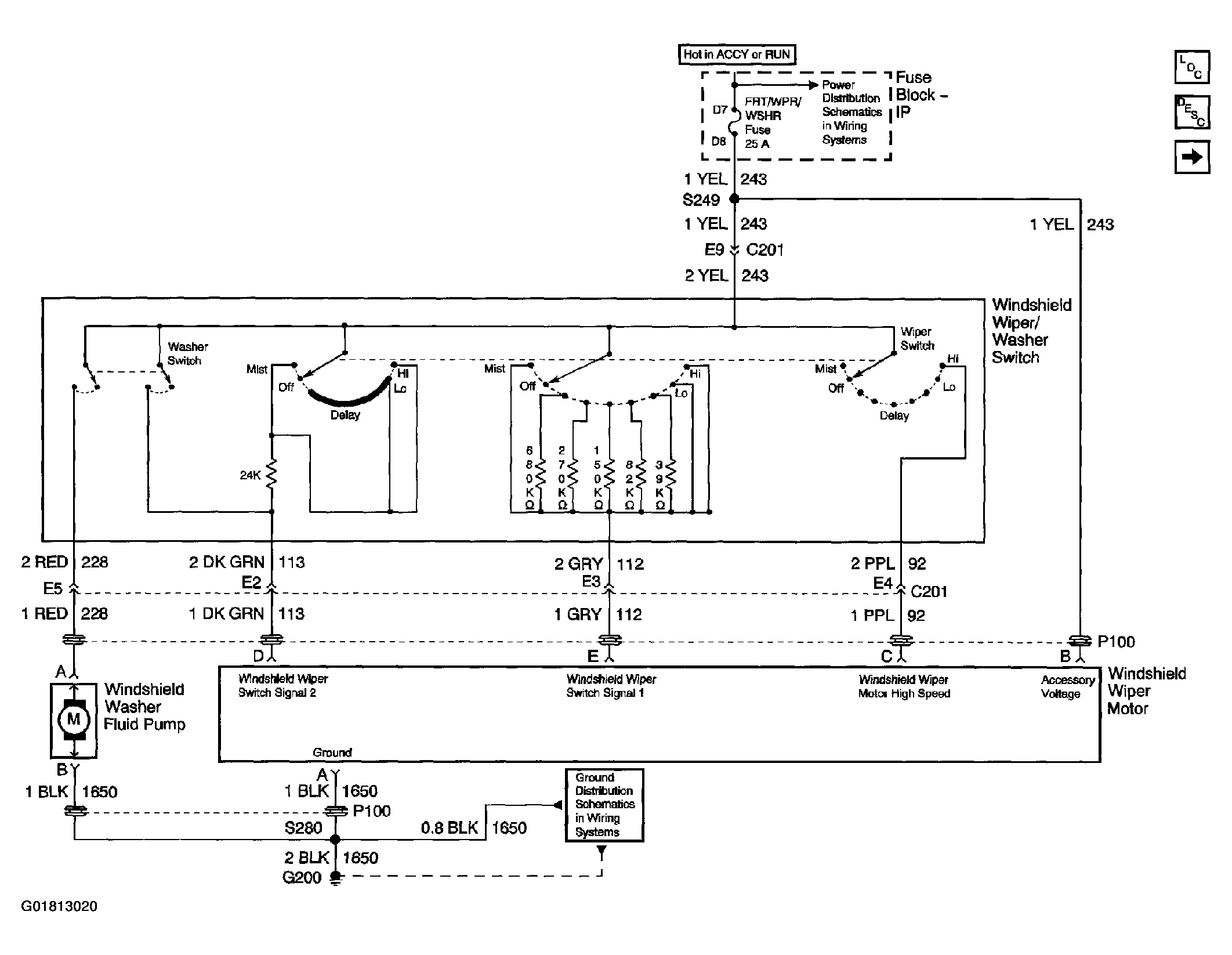

Fig 1: Wiper/Washer Schematics (Wiper/Washer System (Pulse)
G01813020Courtesy of GENERAL MOTORS CORP.

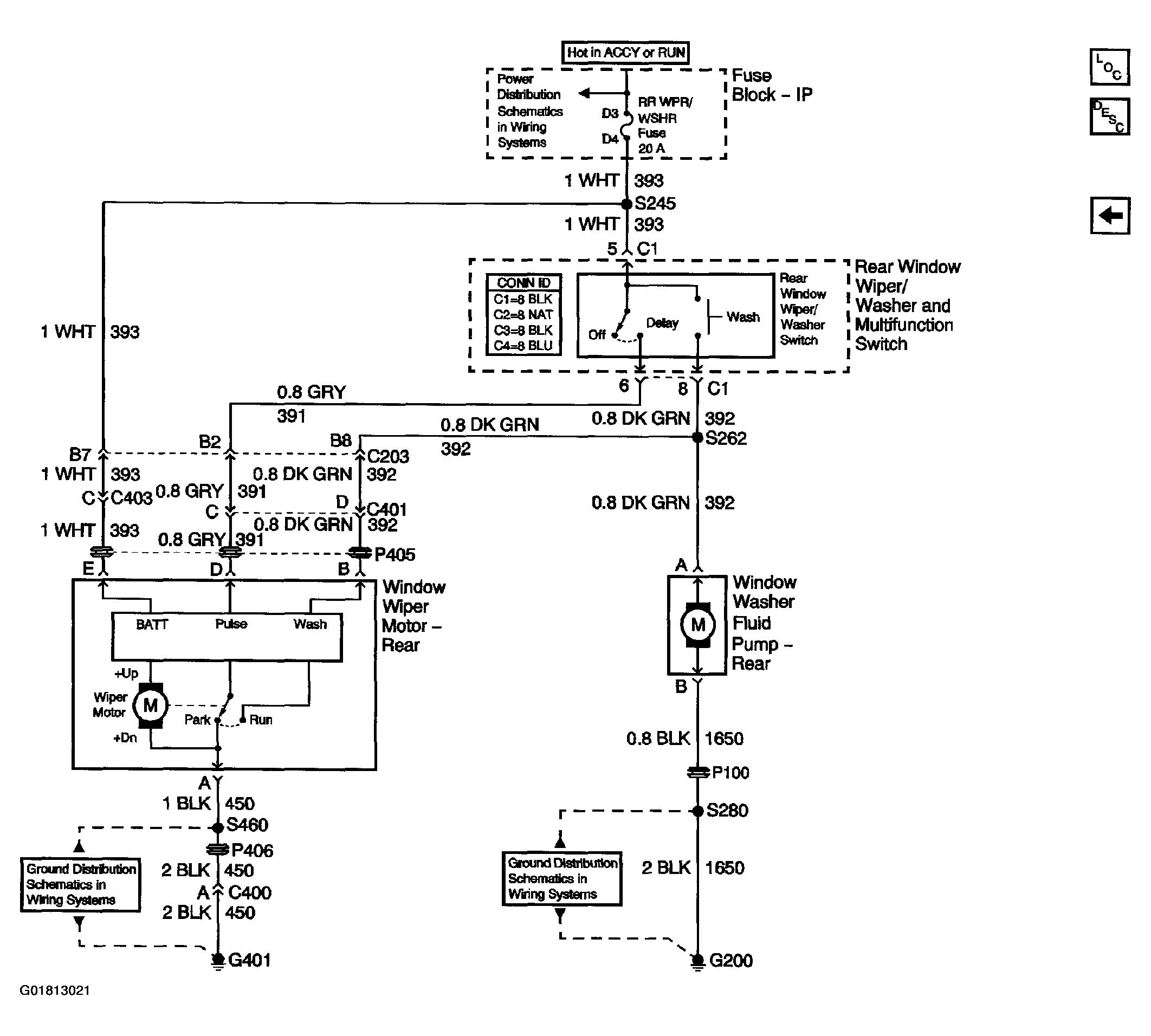

Fig 2: Wiper/Washer Schematics (Wiper/Washer System (Rear)
G01813021Courtesy of GENERAL MOTORS CORP.
