Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the wiper motor electrical connector.
  2. Position the wiper motor to the wiper drive system module.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the wiper motor screws.

    Tighten

    Tighten the screws to 7 N.m (62 lb in).

  4. Install the front washer hose around the wiper motor.
  5. Install the wiper motor crank arm. Refer to Wiper Motor Crank Arm Replacement .
  6. Inspect the wipers for proper operation.

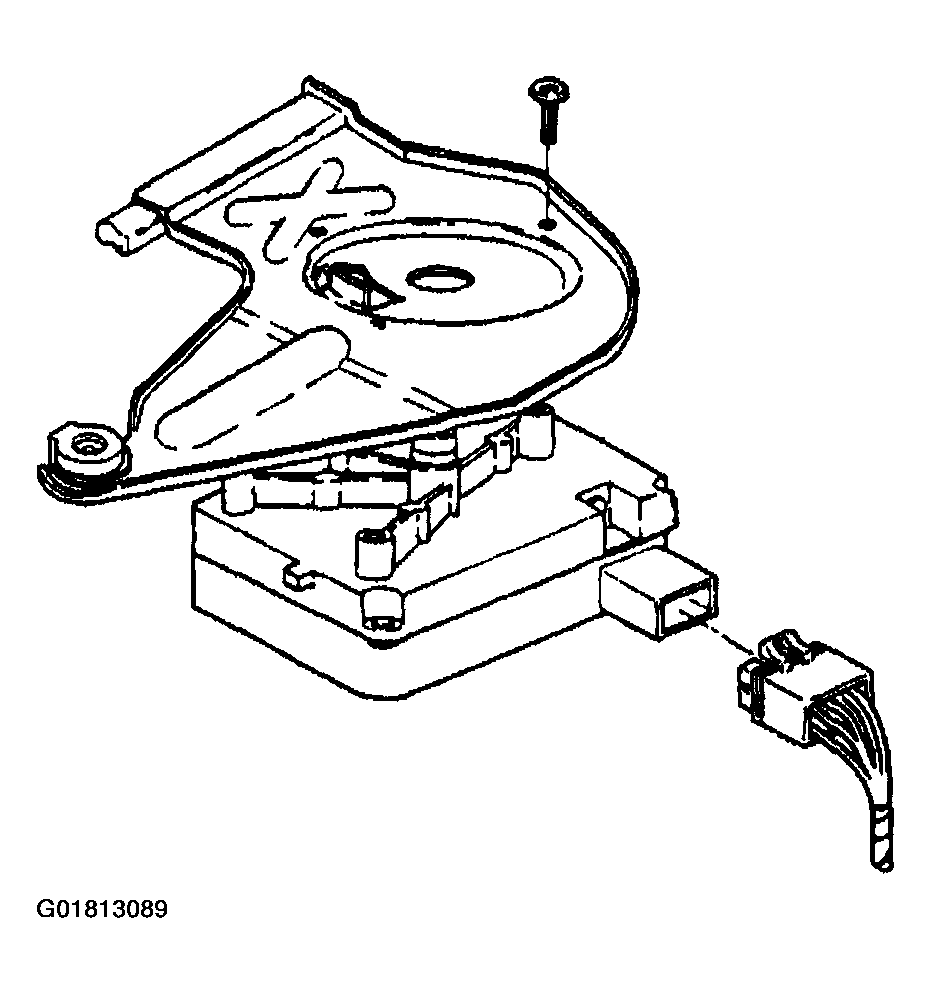

    Fig 1: Installing Wiper Motor, Screws & Electrical Connector
    G01813089Courtesy of GENERAL MOTORS CORP.
