Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear wiper arm. Refer to Wiper Arm Replacement - Rear .
  2. Remove the rear wiper motor drive shaft nut.
  3. Remove the washer and seal from the wiper motor drive shaft.
  4. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE .
  5. Remove the rear wiper motor screws.
  6. Remove the rear wiper motor from the liftgate.

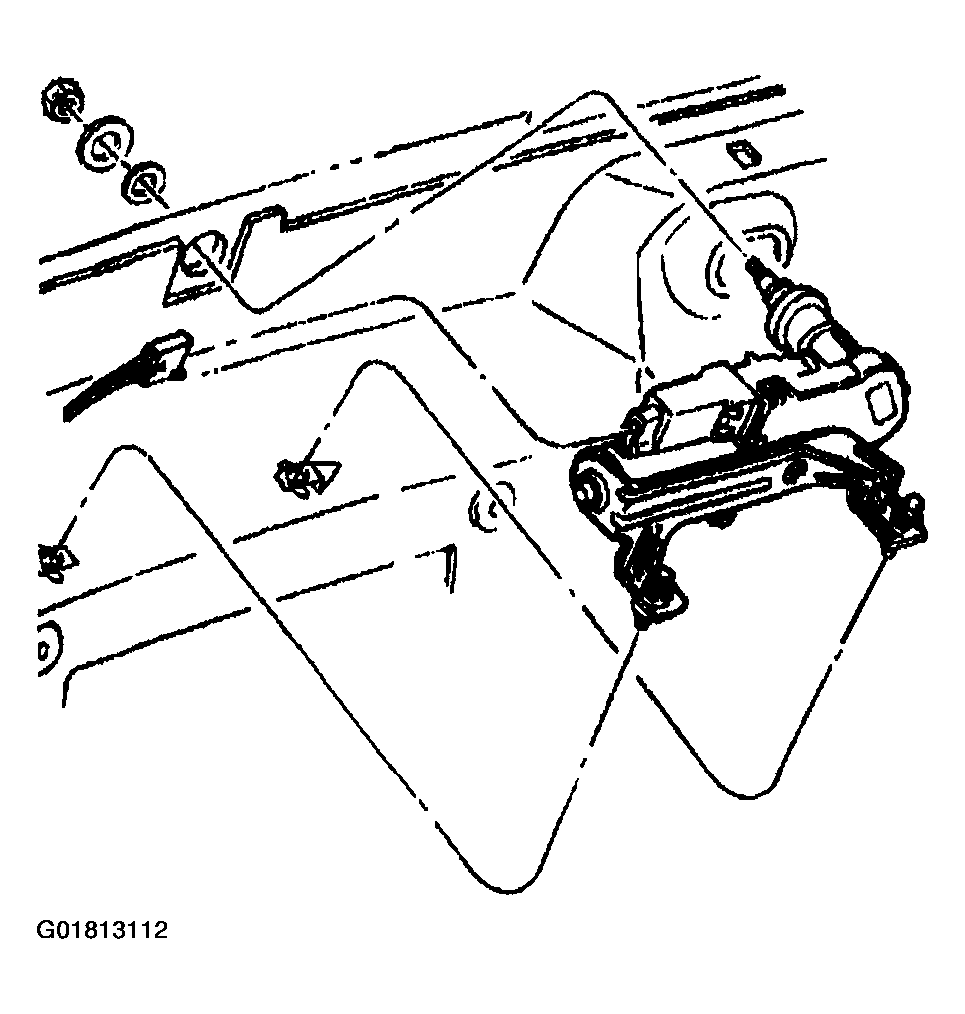

    Fig 1: Removing Rear Wiper Motor Drive Shaft & Nut
    G01813112Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the rear wiper motor electrical connector.
  8. Remove the rear wiper motor from the vehicle.

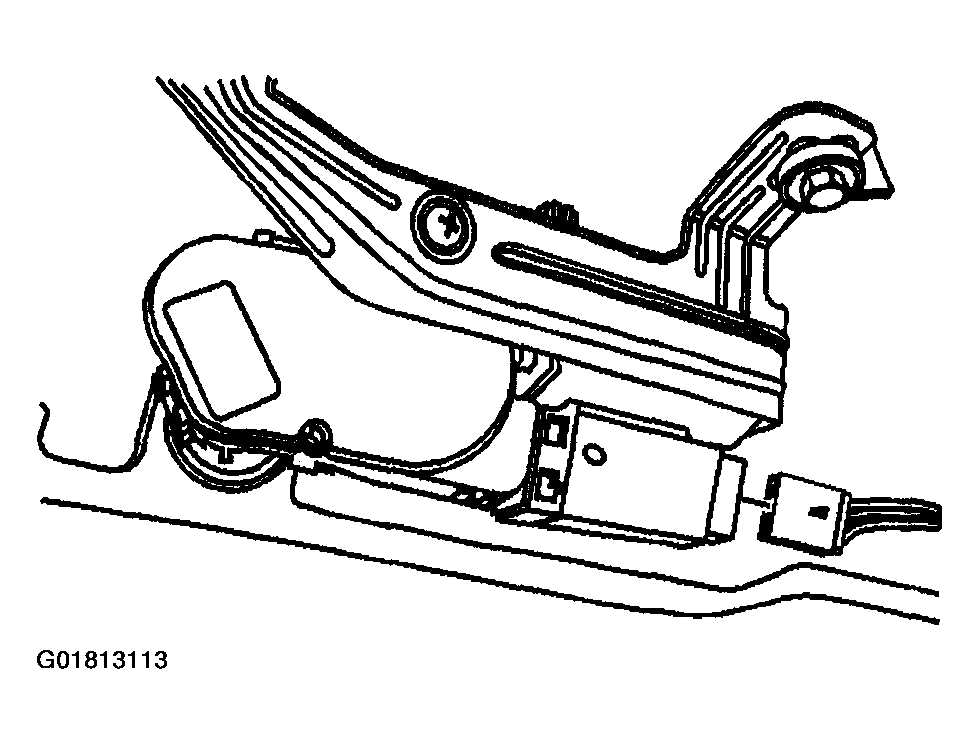

    Fig 2: Removing Rear Wiper Motor & Electrical Connector
    G01813113Courtesy of GENERAL MOTORS CORP.
