Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear wiper motor electrical connector.

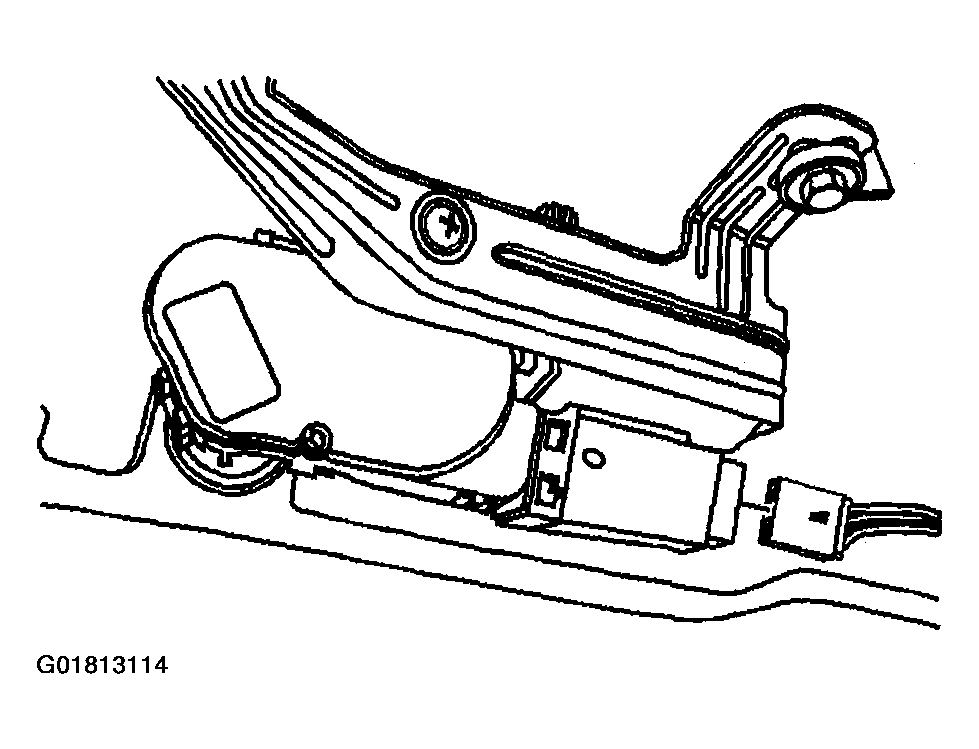

    Fig 1: Installing Rear Wiper Motor & Electrical Connector
    G01813114Courtesy of GENERAL MOTORS CORP.
  2. Position the rear wiper motor to the liftgate.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the rear wiper motor screws.

    Tighten

    Tighten the screws to 6 N.m (53 lb in).

  4. Install the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE .
  5. Install the washer and seal onto the rear wiper motor drive shaft.
  6. Install the rear wiper motor drive shaft nut.

    Tighten

    Tighten the nut to 6 N.m (53 lb in).

  7. Install the rear wiper arm. Refer to Wiper Arm Replacement - Rear .
  8. Inspect rear wiper for proper operation.

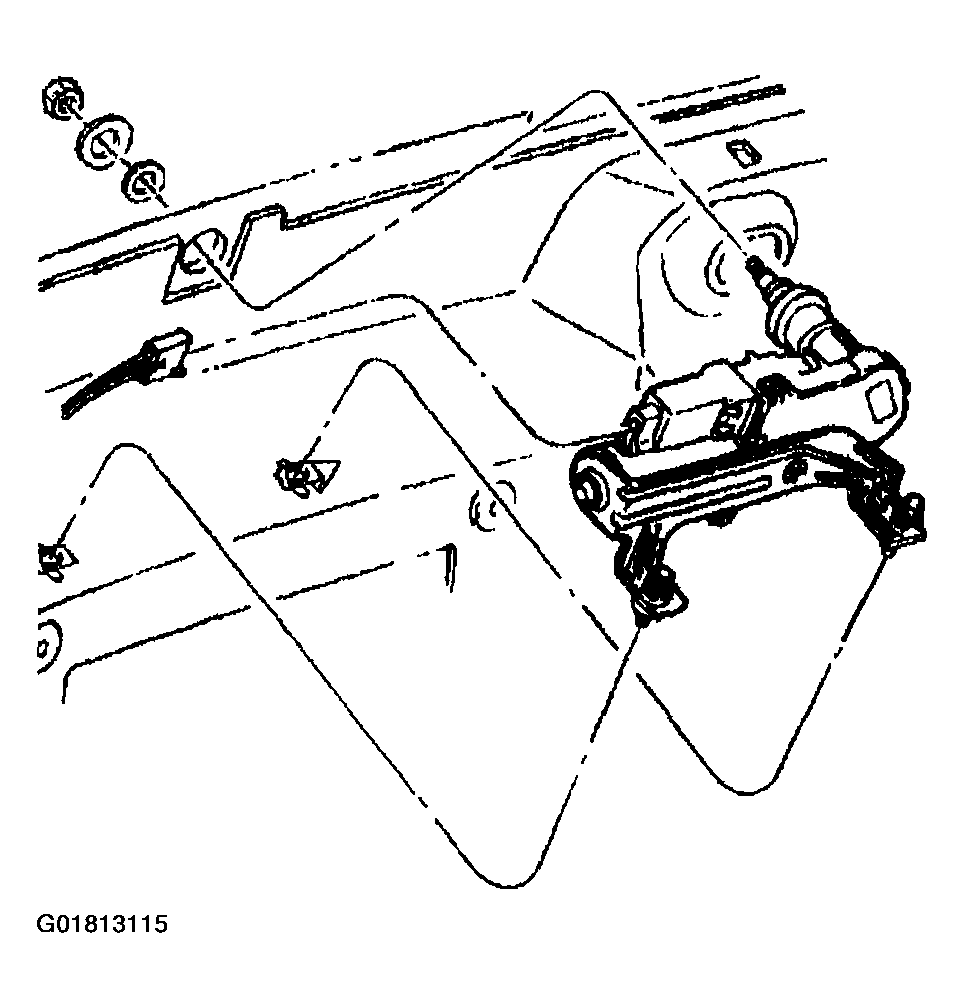

    Fig 2: Installing Rear Wiper Motor Drive Shaft & Nut
    G01813115Courtesy of GENERAL MOTORS CORP.
