Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper system module cover. Refer to Wiper Module Cover Replacement .
  2. Loosen the drive link screws.
  3. Remove the drive link from the wiper motor crank arm.
  4. Remove the wiper motor crank arm cover.
  5. Remove the wiper motor crank arm screw.
  6. Remove the wiper motor crank arm from the wiper motor.

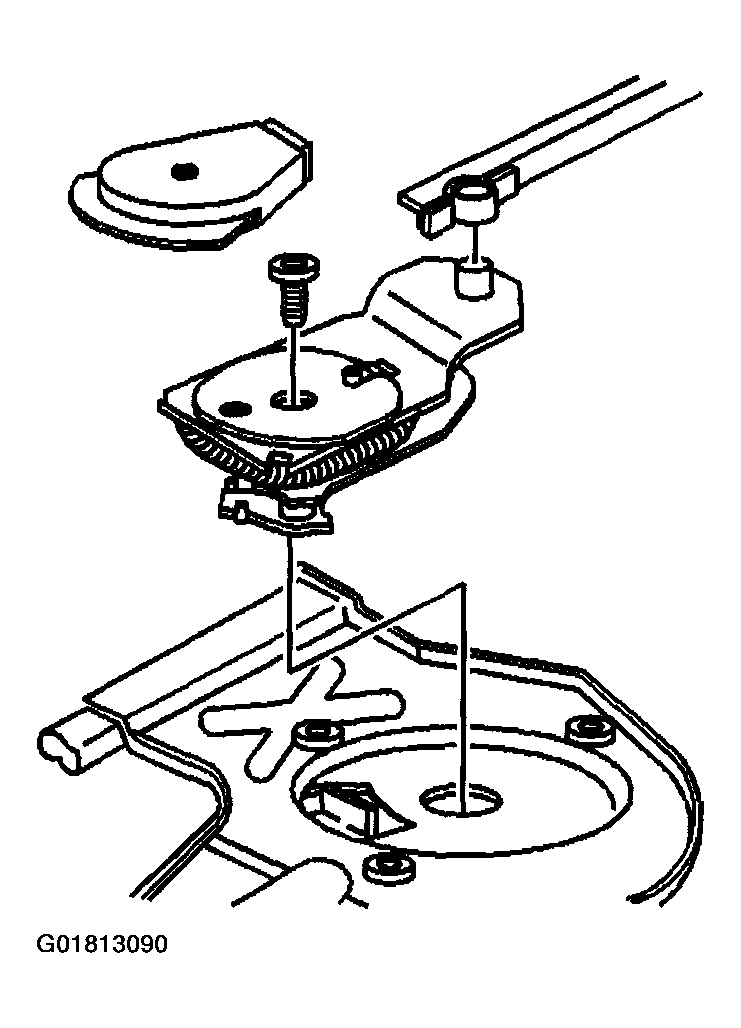

    Fig 1: Removing Drive Link & Wiper Motor Crank Arm
    G01813090Courtesy of GENERAL MOTORS CORP.
