Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE .
  2. Disconnect the rear wiper motor module electrical connector.
  3. Using a small flat-bladed tool, remove the rear wiper motor module cover.

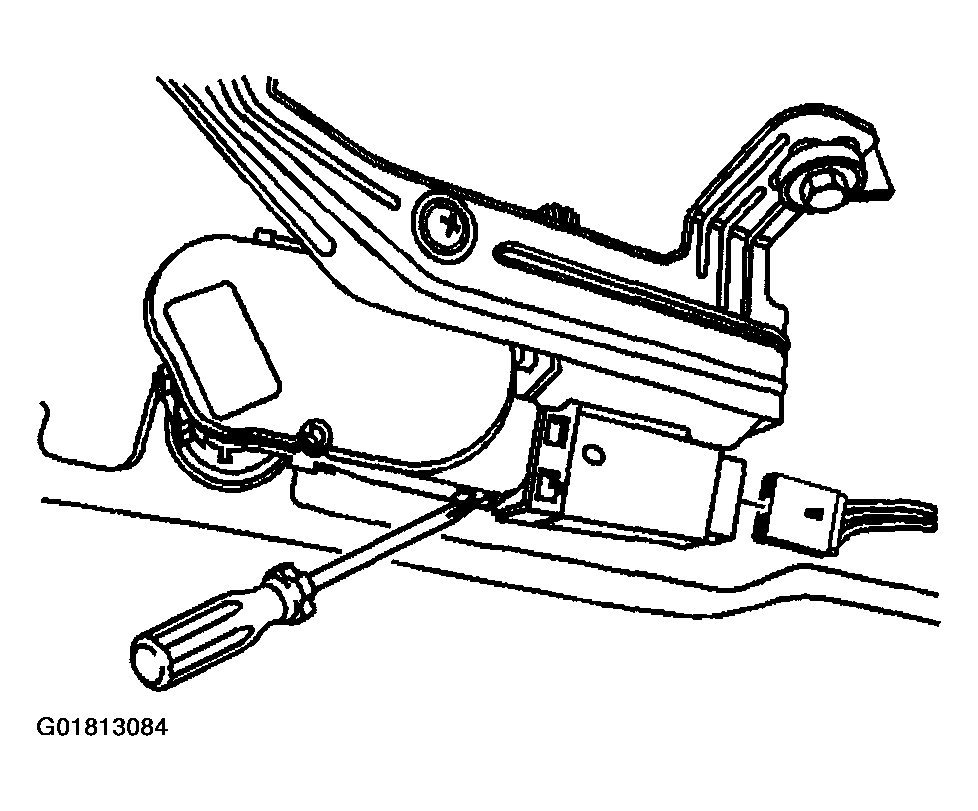

    Fig 1: Removing Rear Wiper Motor Module Cover Using A Flat-Bladed Tool
    G01813084Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear wiper motor module circuit board from the rear wiper motor.

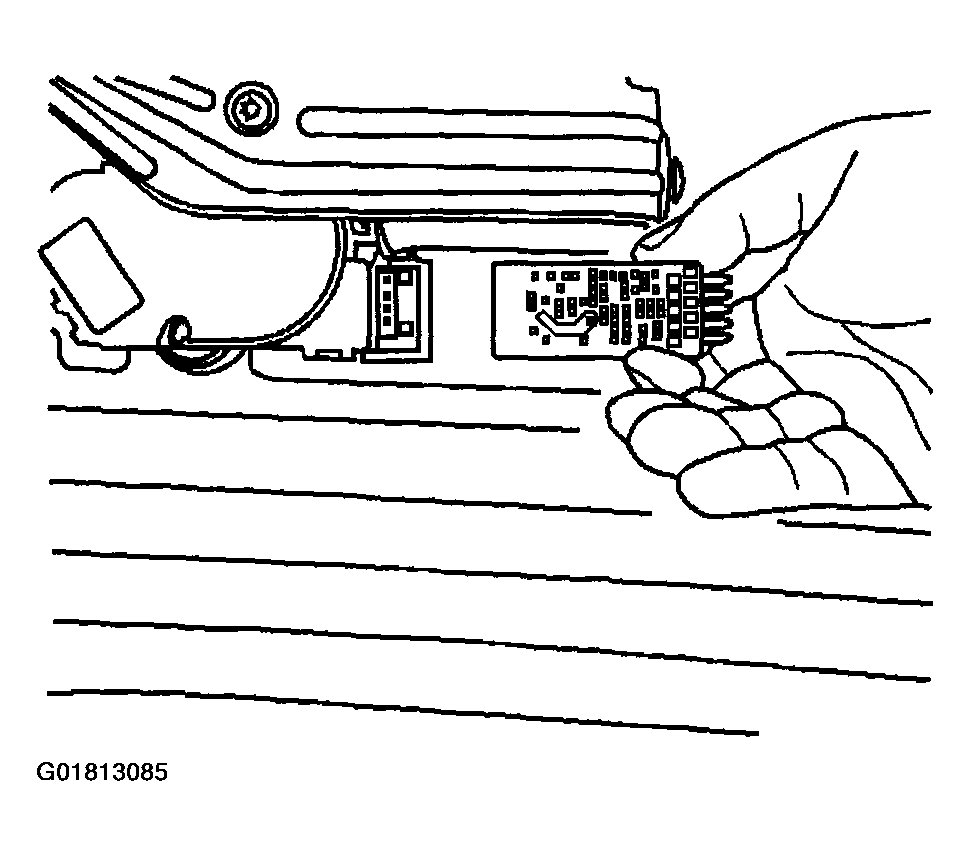

    Fig 2: Removing Rear Wiper Motor Module Circuit Board
    G01813085Courtesy of GENERAL MOTORS CORP.
