Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear wiper motor module circuit board to the rear wiper motor, pressing in until fully seated.

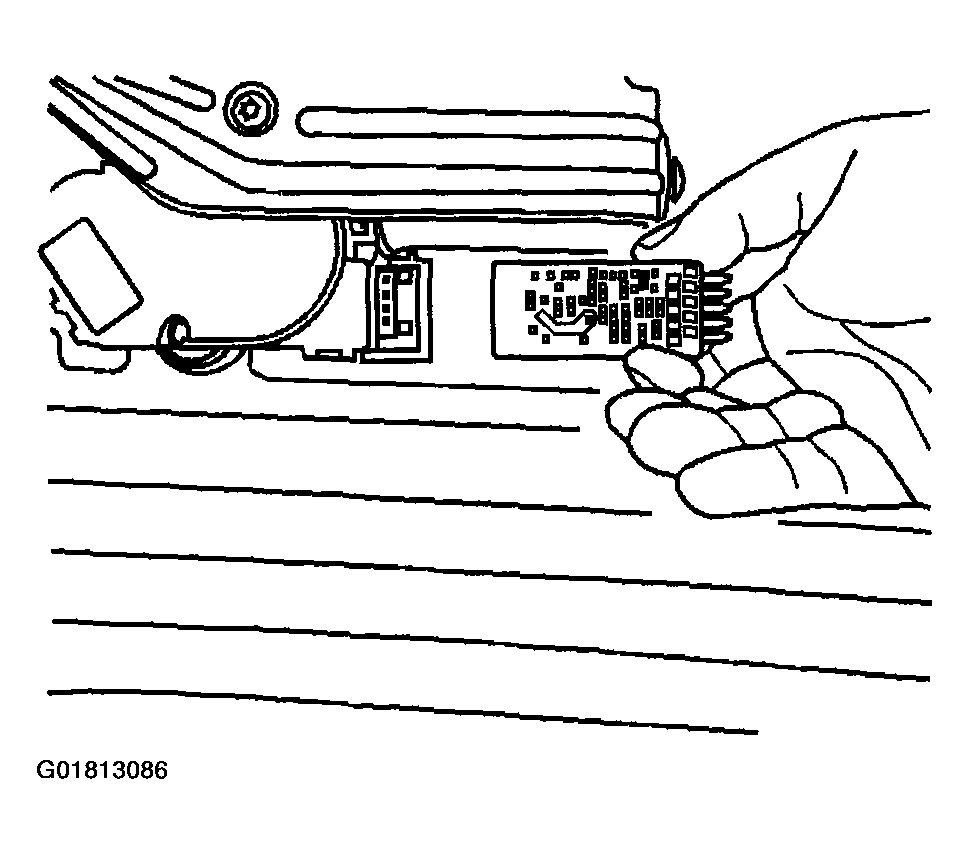

    Fig 1: Installing Rear Wiper Motor Module Circuit Board
    G01813086Courtesy of GENERAL MOTORS CORP.
  2. Install the rear wiper motor module cover.
  3. Connect the rear wiper motor module electrical connector.
  4. Install the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE .
  5. Inspect the rear wiper for proper operation.

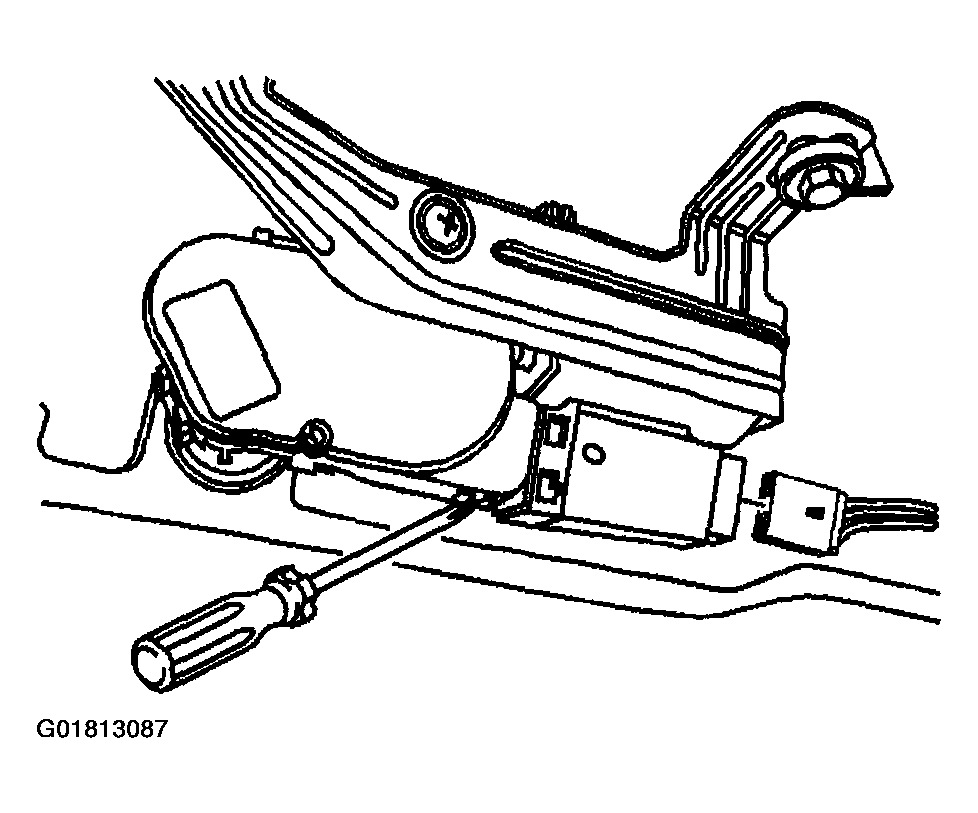

    Fig 2: Installing Rear Wiper Motor Module Cover Using A Flat-Bladed Tool
    G01813087Courtesy of GENERAL MOTORS CORP.
