Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper motor. Refer to Wiper Motor Replacement .
  2. Remove the wiper motor cover screws.
  3. Remove the wiper motor cover from the wiper motor.

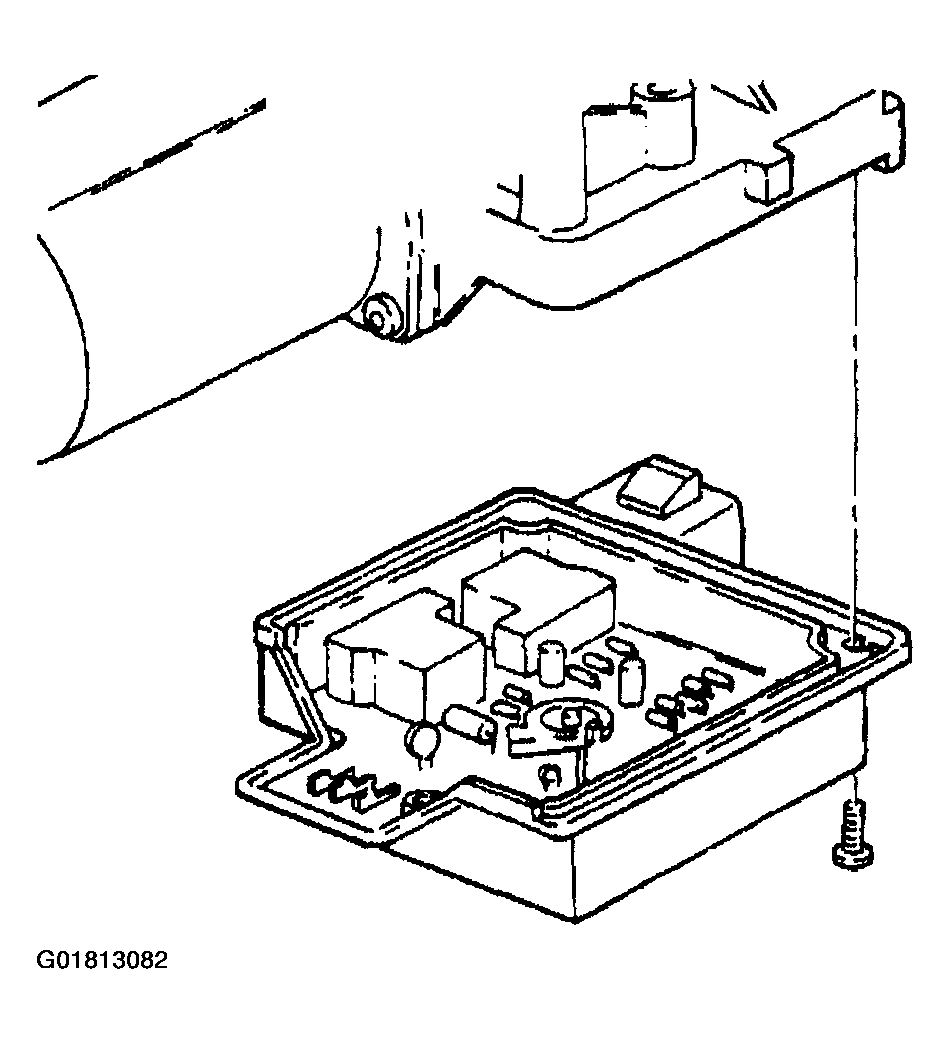

    Fig 1: Removing Wiper Motor, Cover & Screws (Front)
    G01813082Courtesy of GENERAL MOTORS CORP.
