Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper motor cover to the wiper motor.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the wiper motor cover screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the wiper motor. Refer to Wiper Motor Replacement .
  4. Inspect the wipers for proper operation.

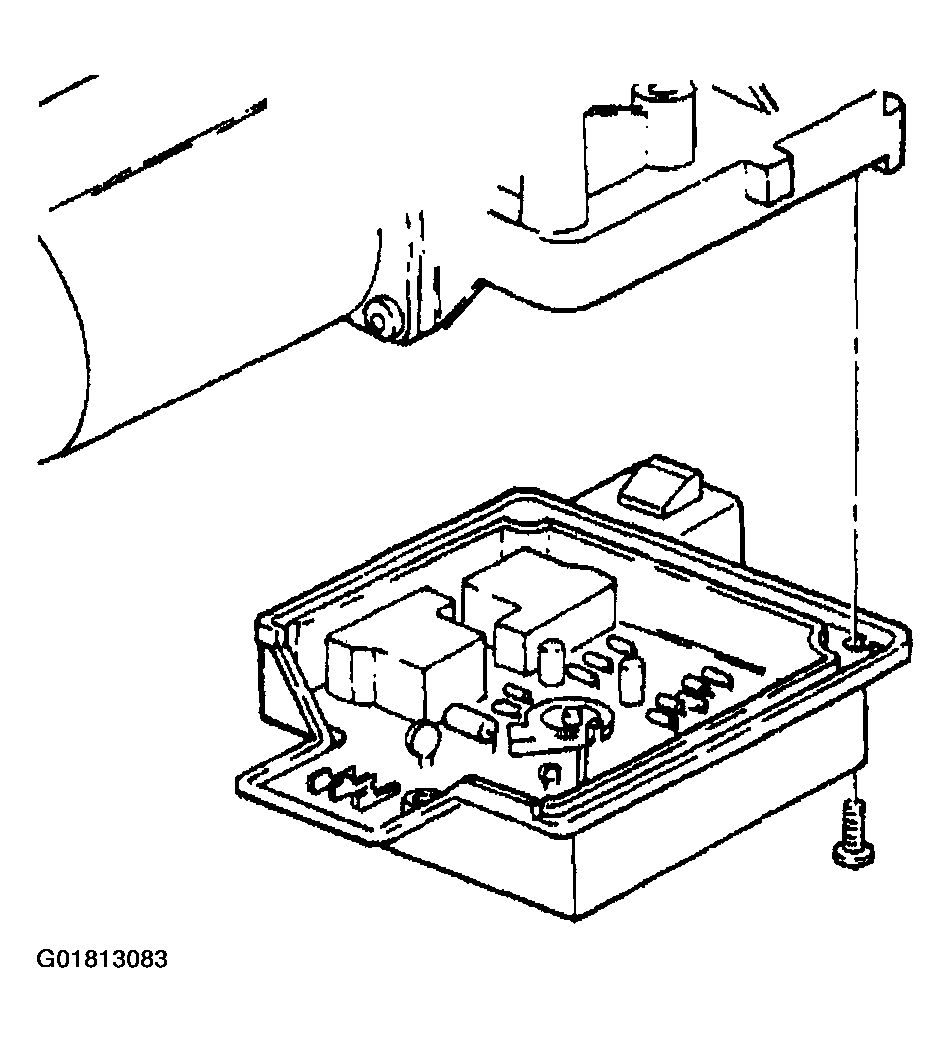

    Fig 1: Installing Wiper Motor, Cover & Screws (Front)
    G01813083Courtesy of GENERAL MOTORS CORP.
