Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mark the position of rear wiper blade on the rear window with tape or an erasable marker.
  2. Remove the rear wiper arm nut cap.
  3. Remove the rear wiper arm nut.
  4. Using the J 39822,  remove the rear wiper arm.
  5. Remove the rear wiper blade from the rear wiper arm. Refer to Wiper Arm Blade Replacement - Rear .

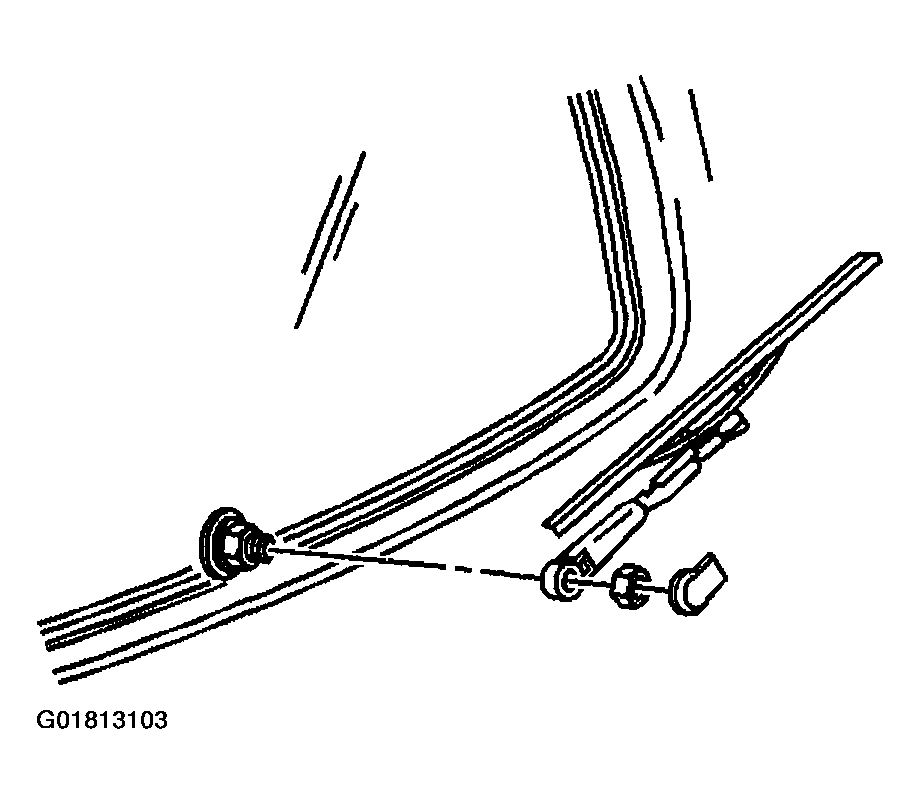

    Fig 1: Removing Rear Wiper Arm Nut & Cap
    G01813103Courtesy of GENERAL MOTORS CORP.
