Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear wiper blade onto the rear wiper arm. Refer to Wiper Arm Blade Replacement - Rear .
  2. Position the rear wiper arm onto the wiper motor while aligning the rear wiper blade to the mark made on the rear window.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the rear wiper arm nut.

    Tighten

    Tighten the nut to 25 N.m (19 lb ft).

  4. Install the rear wiper arm nut cap.
  5. Remove the tape or the mark from the rear window.
  6. Inspect the rear wiper system for proper operation.

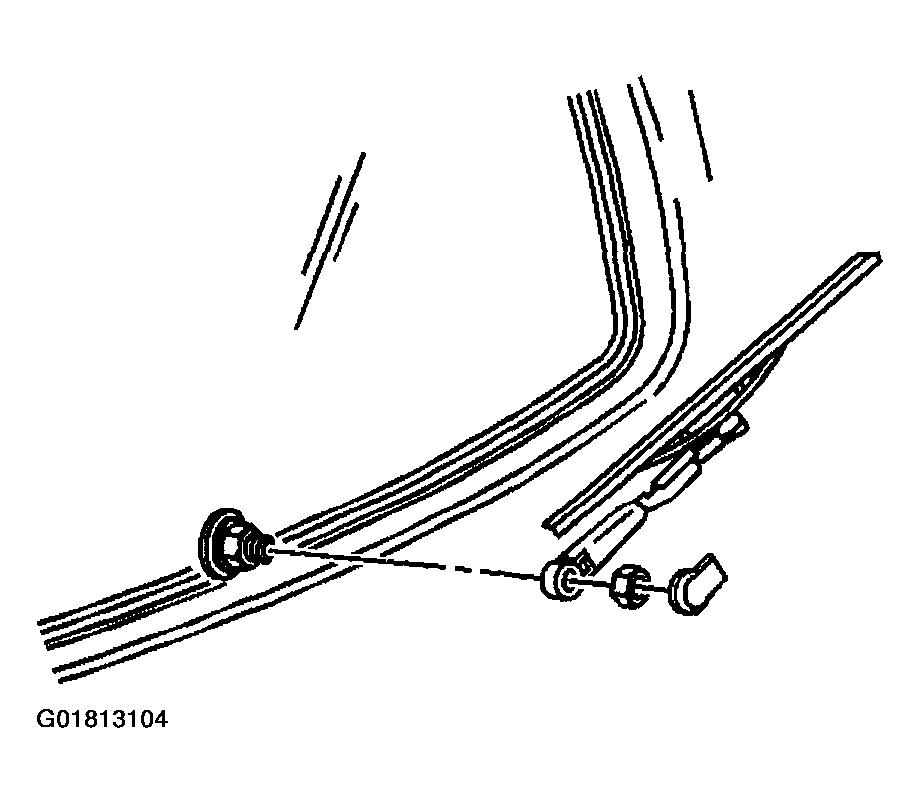

    Fig 1: Installing Rear Wiper Arm Nut & Cap
    G01813104Courtesy of GENERAL MOTORS CORP.
