Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the washer solvent from the washer solvent container.
  2. Disconnect the front washer pump electrical connector.
  3. Disconnect the front washer pump hose.

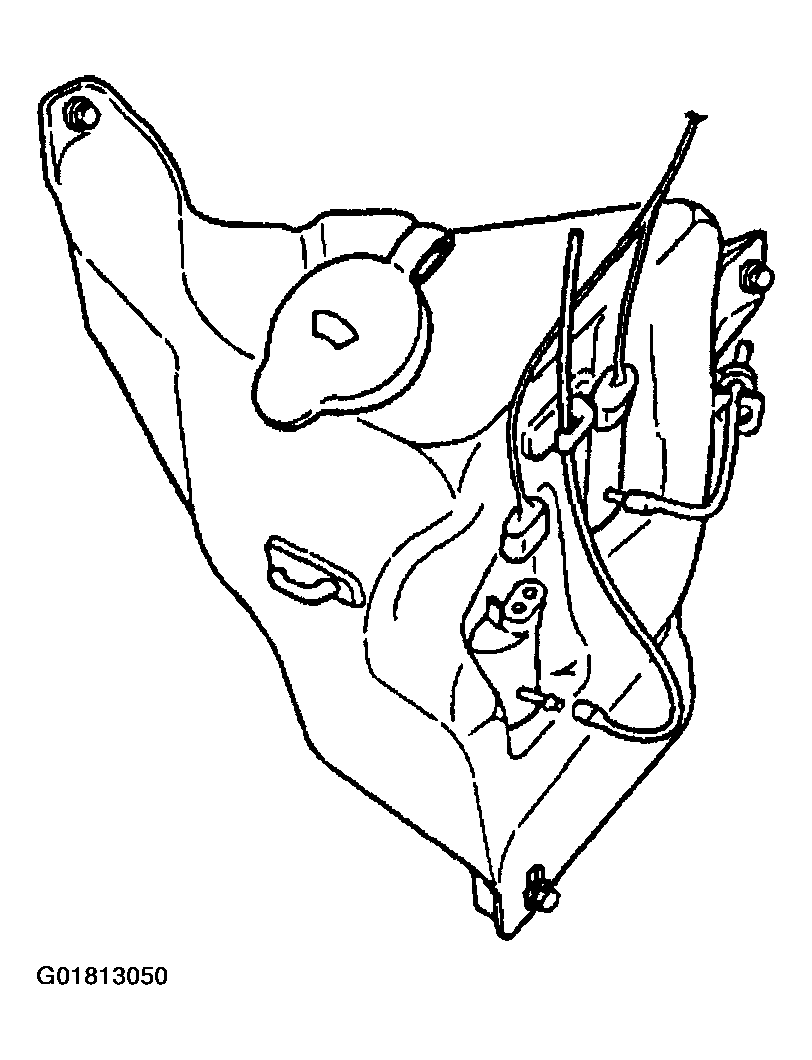

    Fig 1: Removing Washer Solvent & Washer Solvent Container
    G01813050Courtesy of GENERAL MOTORS CORP.
  4. Using a small flat-bladed tool, remove the front washer pump from the washer solvent container.
  5. Using a small flat-bladed tool, remove the seal from the washer solvent container.

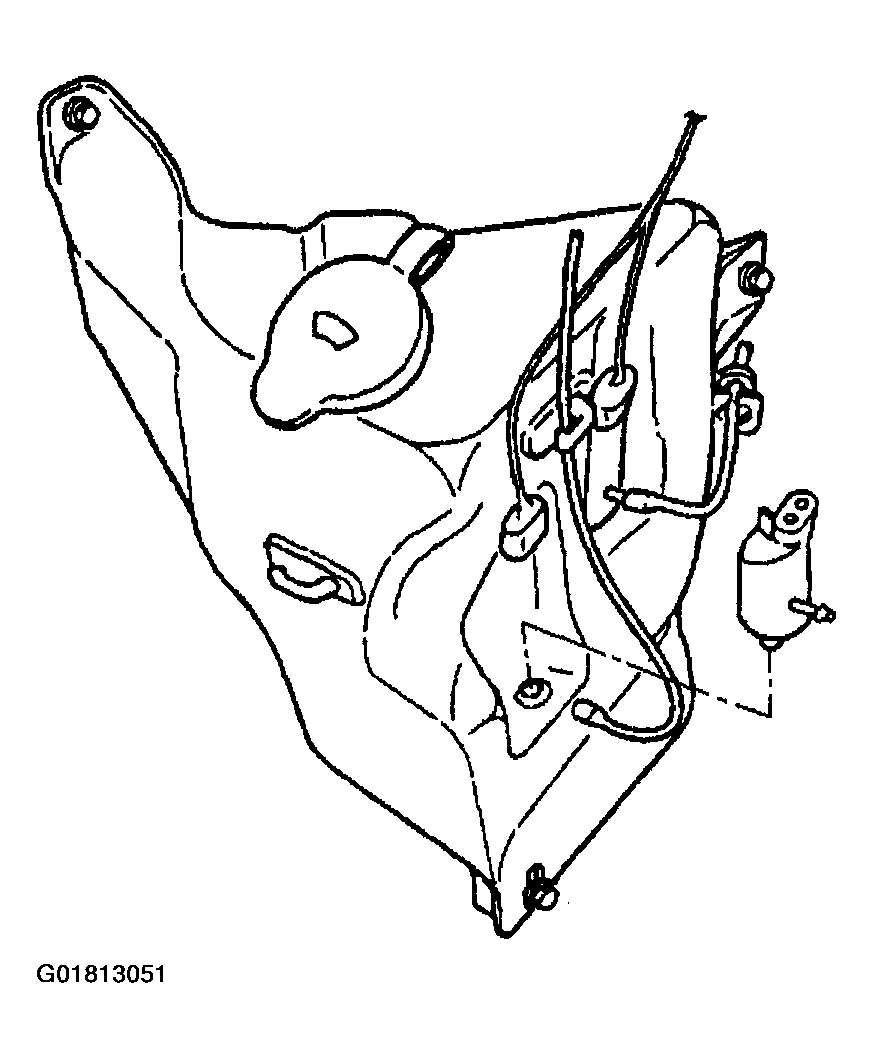

    Fig 2: Removing Front Washer Pump, Washer Solvent Container & Seal
    G01813051Courtesy of GENERAL MOTORS CORP.
