Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seal to the washer solvent container pressing in until fully seated.
  2. Position the front washer pump to the washer solvent container pressing in until fully seated.

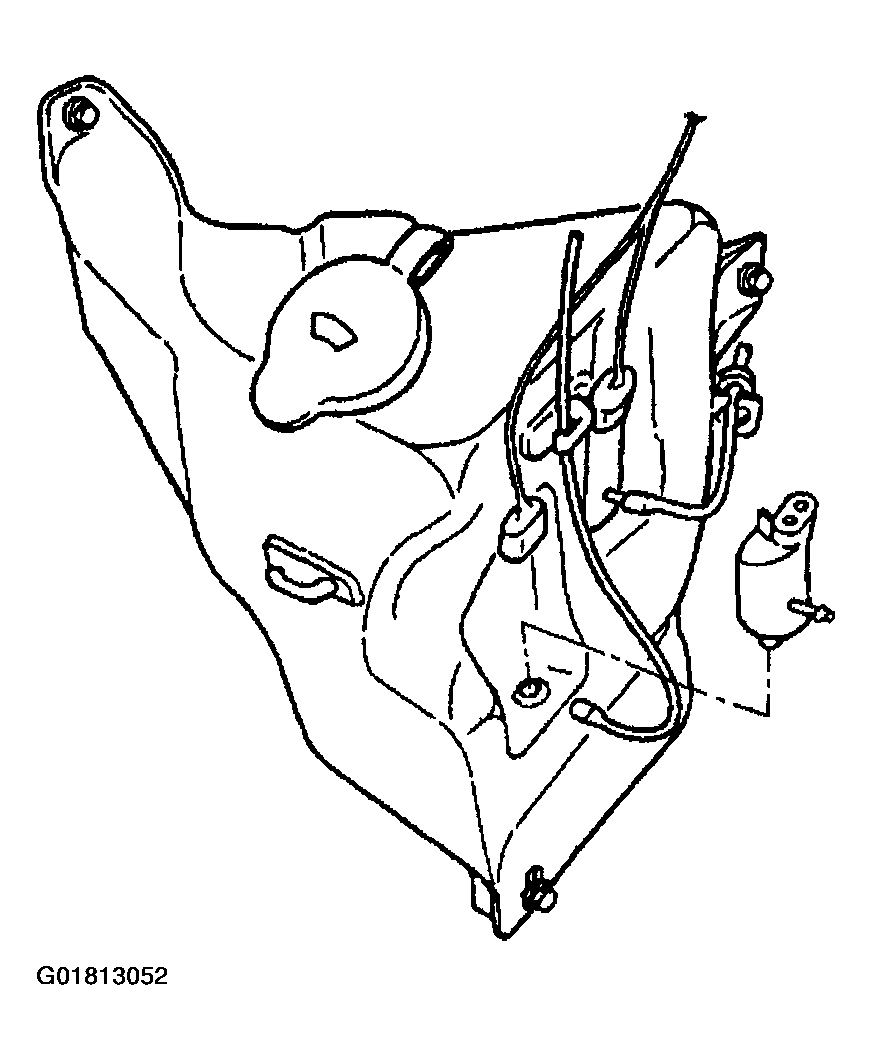

    Fig 1: Installing Front Washer Pump, Washer Solvent Container & Seal
    G01813052Courtesy of GENERAL MOTORS CORP.
  3. Connect the front washer pump hose.
  4. Connect the front washer pump electrical connector.
  5. Fill the washer solvent container with washer solvent.

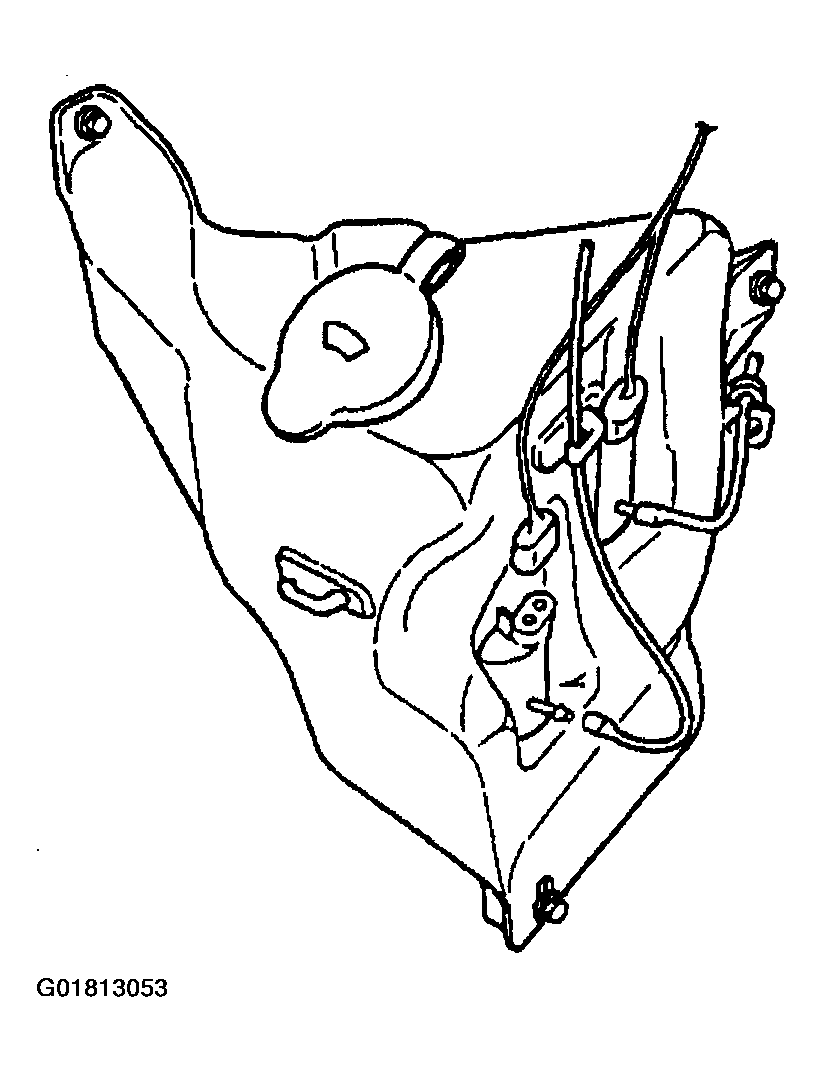

    Fig 2: Installing Washer Solvent & Washer Solvent Container
    G01813053Courtesy of GENERAL MOTORS CORP.
